N5 | AC1200 Wireless Dual Band Router

AC1200 Wireless Dual Band Router

Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections
Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP)/3/4G Dongle
Multi-SSID providing up to 4 additional separate networks for guests and friends
4* 5dBi high gain antennas
Easy wireless security setup at a push of the WPS button
Intelligent bandwidth control
USB 2.0 port available
Quick setup, with built-in multilingual management page

Overview | Specifications | Download

AC1200

Wireless Dual Band Router

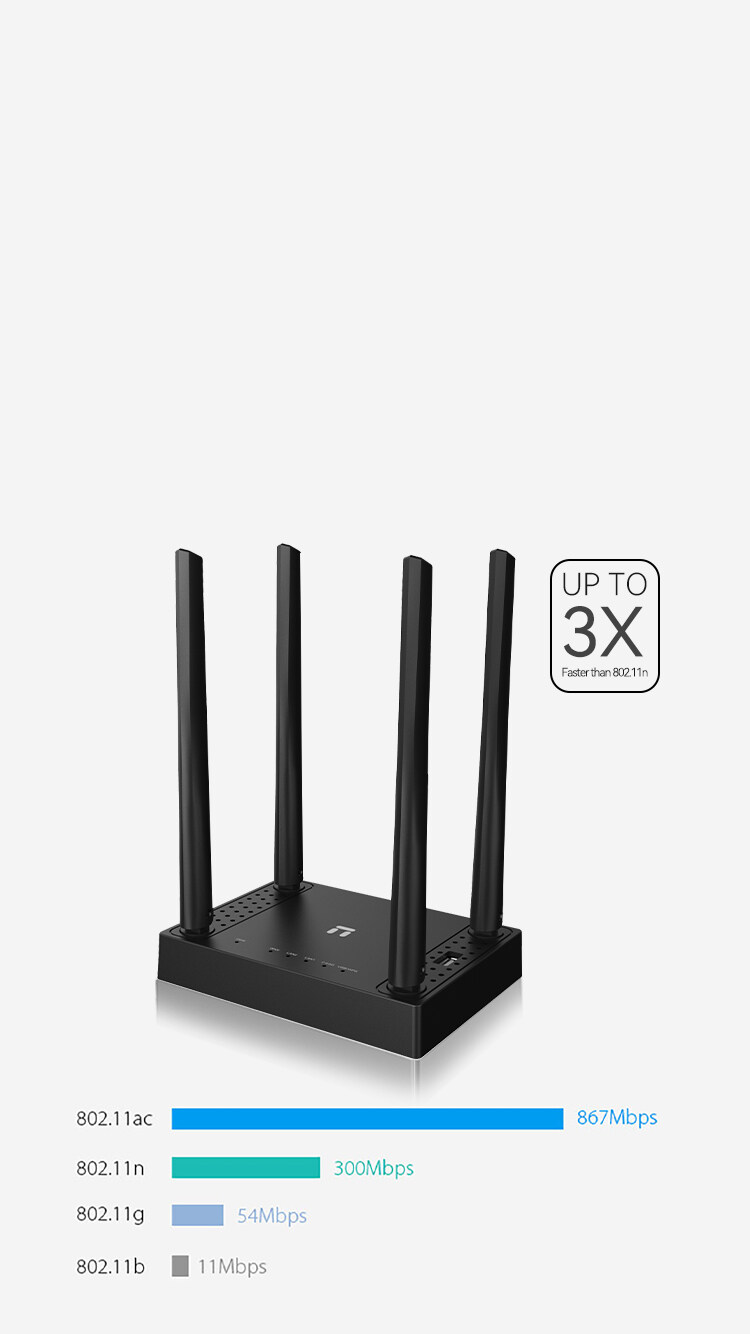

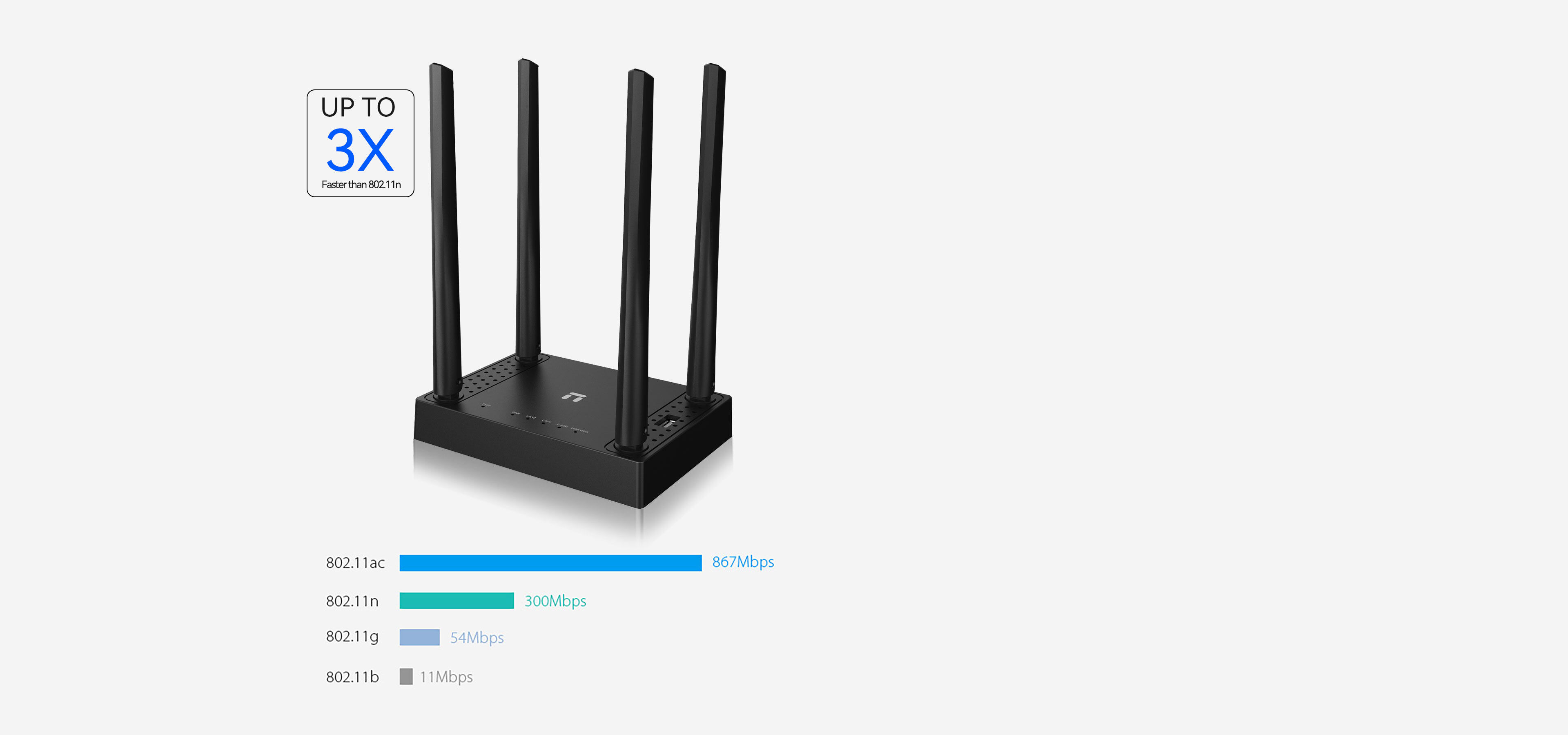

802.11AC

Ultra-Fast Wireless Speed

Based on the next generation of Wi-Fi technology—802.11ac, the netis router N5 delivers wireless AC speed up to 867Mbps, up to 3X faster than 802.11n, allowing multiple high-bandwidth-utilization applications such as online gamingand HD video streaming.

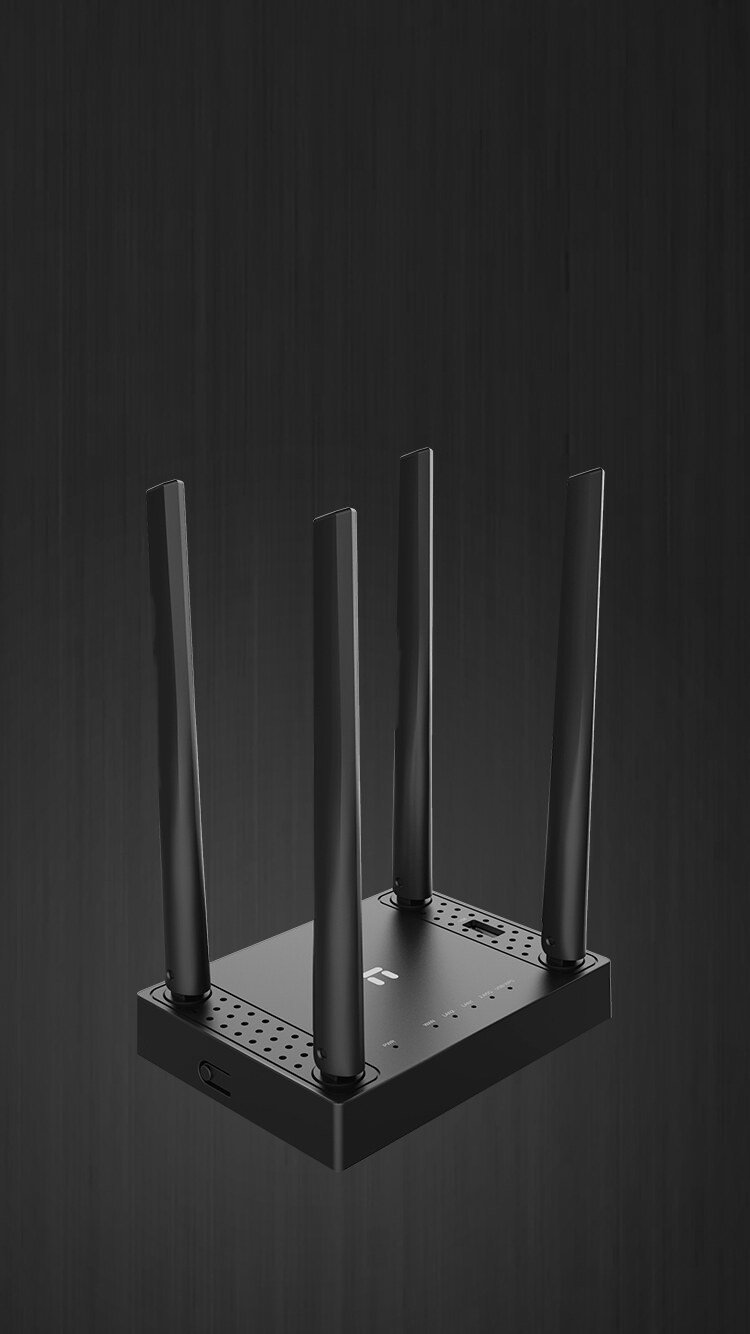

Concurrent Dual Band Long-Range

2.4GHz & Interference-Free 5GHz

The netis 802.11AC router N5 works on both 2.4GHz and 5GHz wireless bands simultaneously. It enables you to do general tasks like web surfing, e-mailing and file sharing on 2.4GHz band. Meanwhile, it avoids interference on 5GHz band, offering a powerful performance on wireless gaming and HD media streaming.

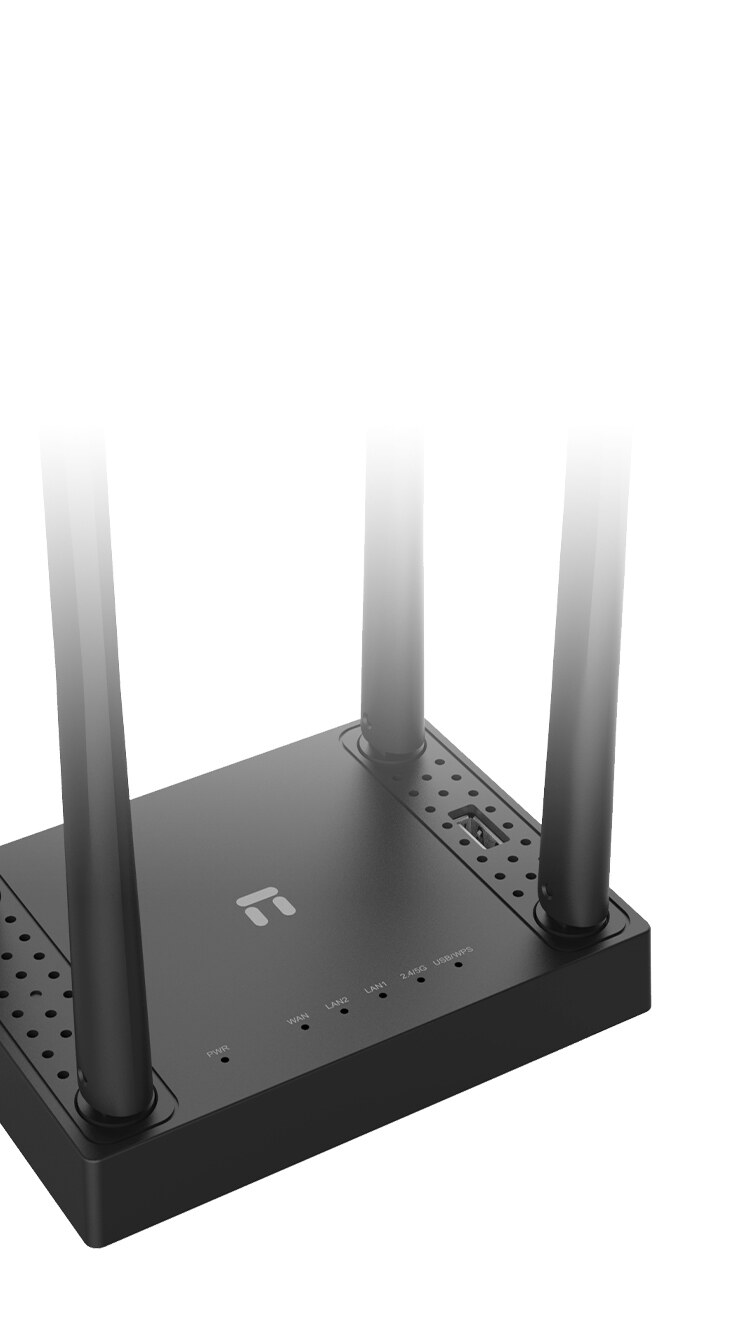

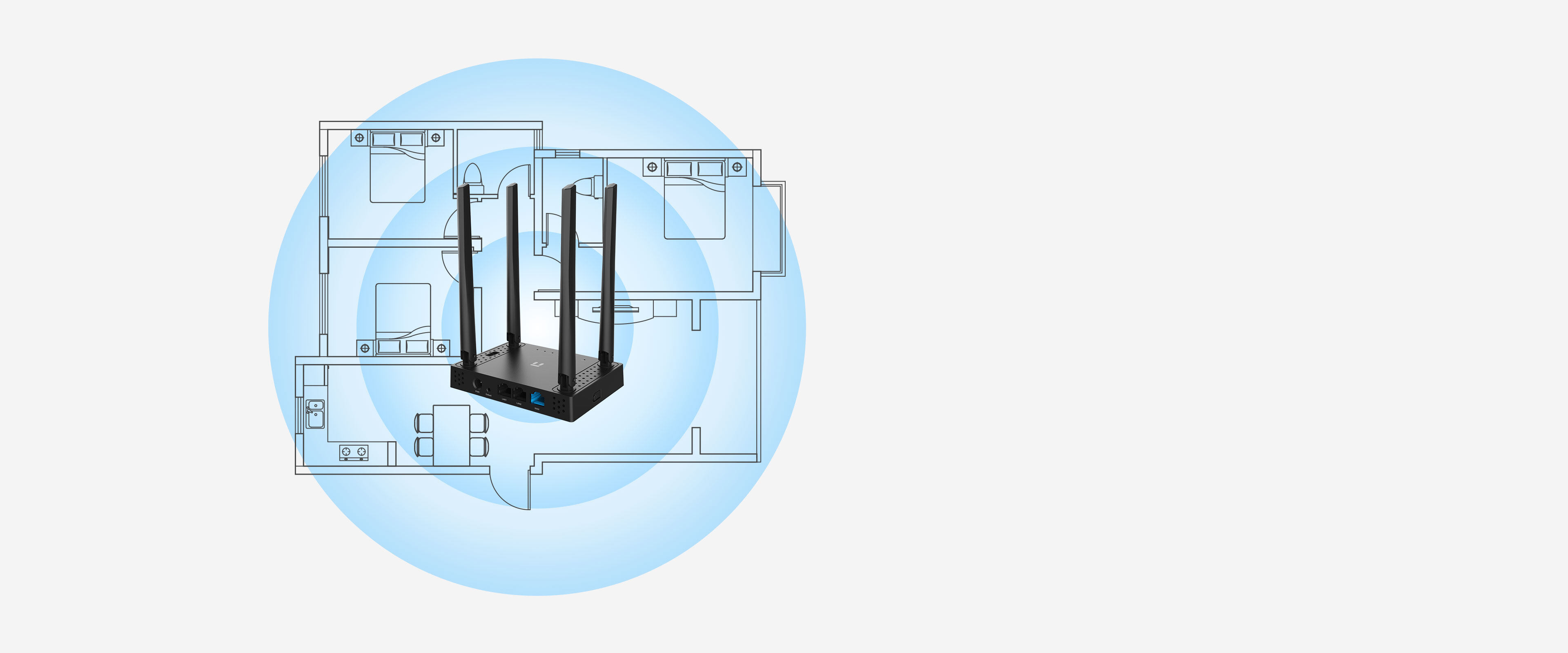

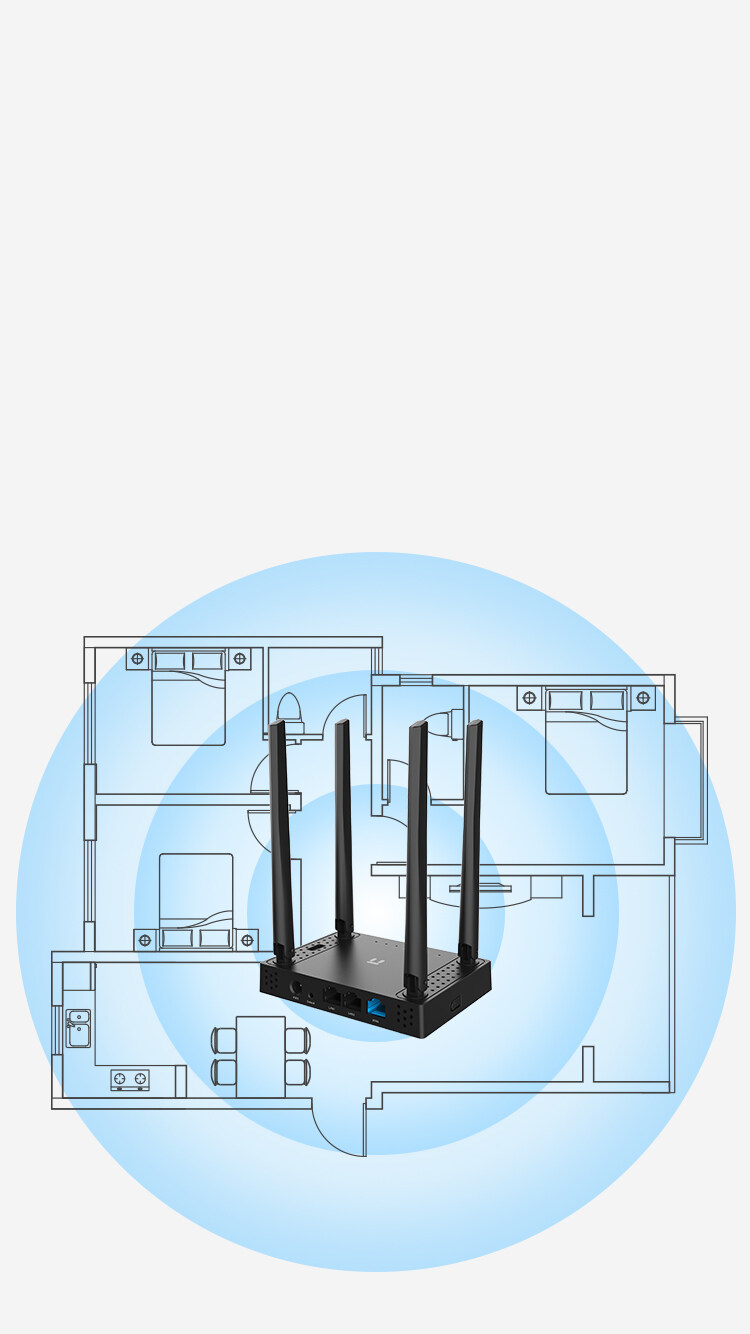

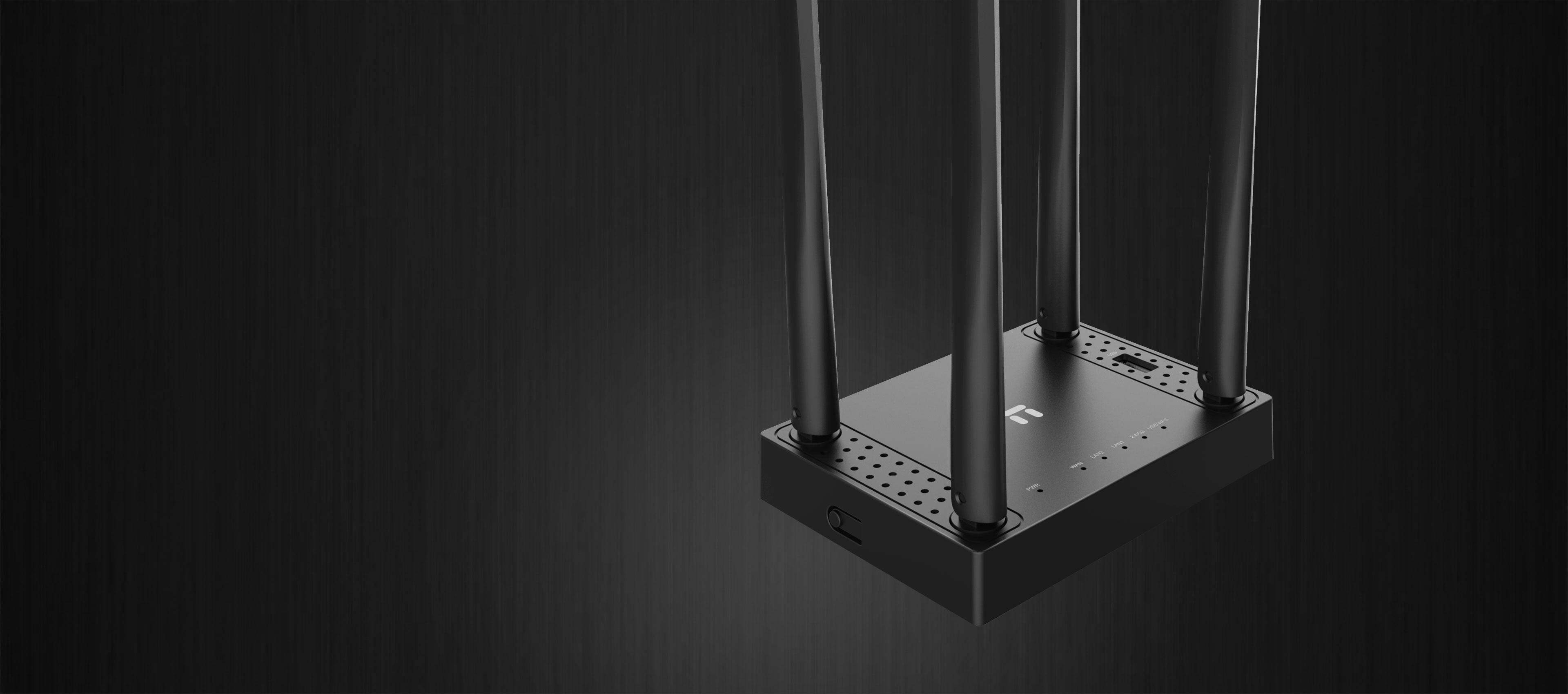

Multiple High Gain Antennas

Equipped with 4 external high gain antennas for 2.4GHz and 5GHz,the netis N5 ensures a wide range across a greater distance. This allows you to enjoy the wireless freedom with incredible signal and coverage in any large home or office.

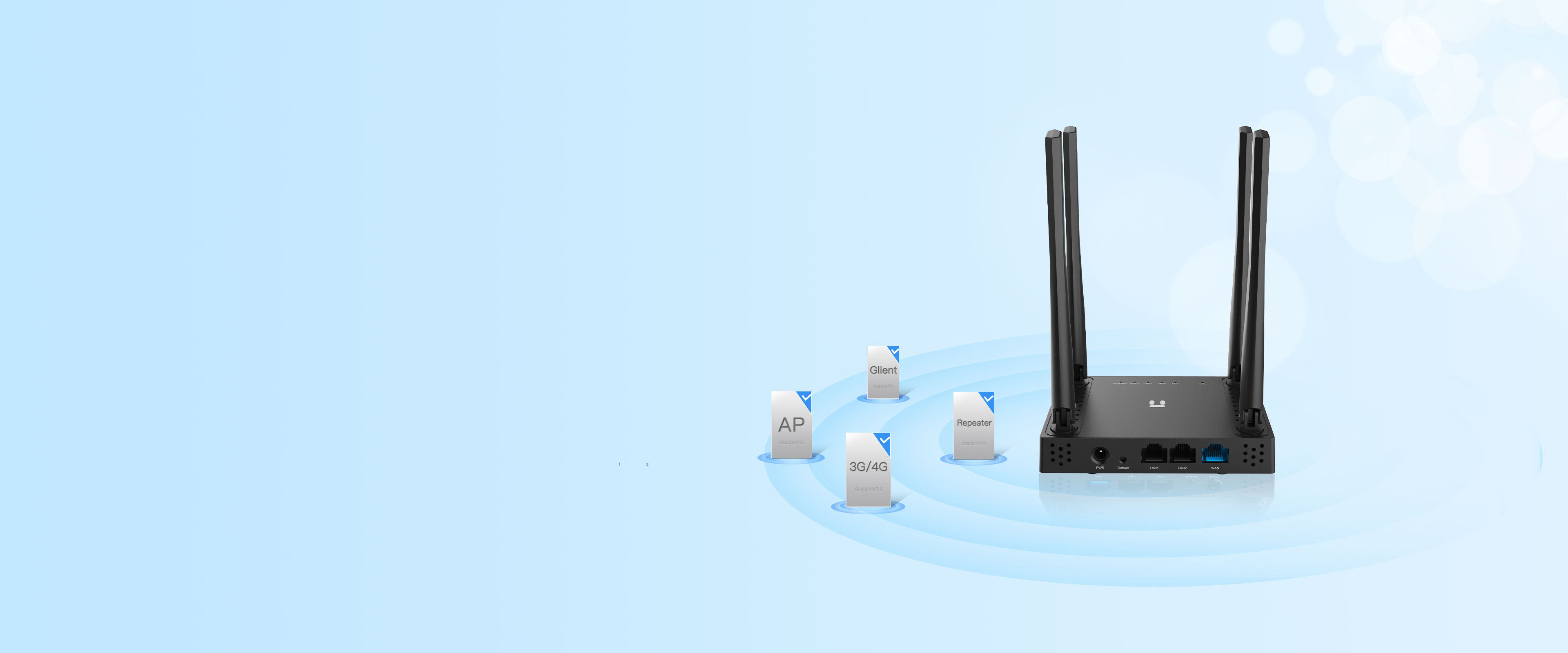

Multiple Wireless Modes

Flexible WLAN Solutions

The netis router N5 supports AP, Repeater, WISP,Client modes, providing various wireless solutions.
Based on your current network structure, you can flexibly choose a suitable wireless mode to build or extend the wireless network.

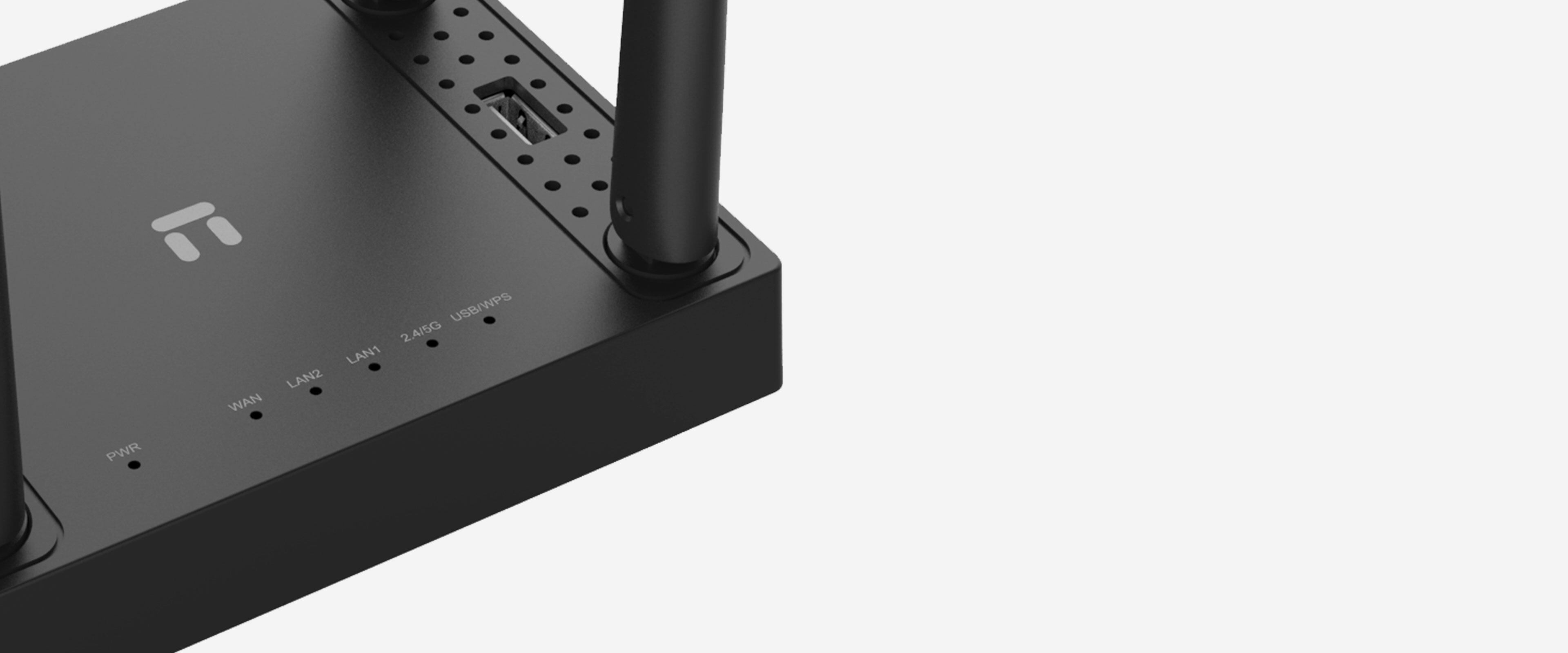

Extended USB 2.0 Port

With a USB 2.0 Port, N5 supports to connect with 3G/4G USB modem for network sharing, then you may connect a USB storage device to the USB2.0 to share files, stream media and setup a ftp server.

Specification

Wireless

Standard	IEEE802.11n/g/b; IEEE802.11ac/a;
Signal Rate	2.4GHz Up to 300Mbps 5 GHz UP to 867Mbps
Frequency Range	2.4-2.4835GHz; 5.180-5.825GHZ
Transmit Power	20dBm(MAX)
Data Transfer Rate	802.11ac: 80MHZ(433Mbps) 160MHZ(867Mbps) 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Mode	AP,APR, Multi-SSID
Wireless Security	64/128-bit WEP WEP/WPA-PSK/WPA2-PSK SSID Broadcast Enable/Disable Wireless MAC Filtering

Hardware

Standards	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

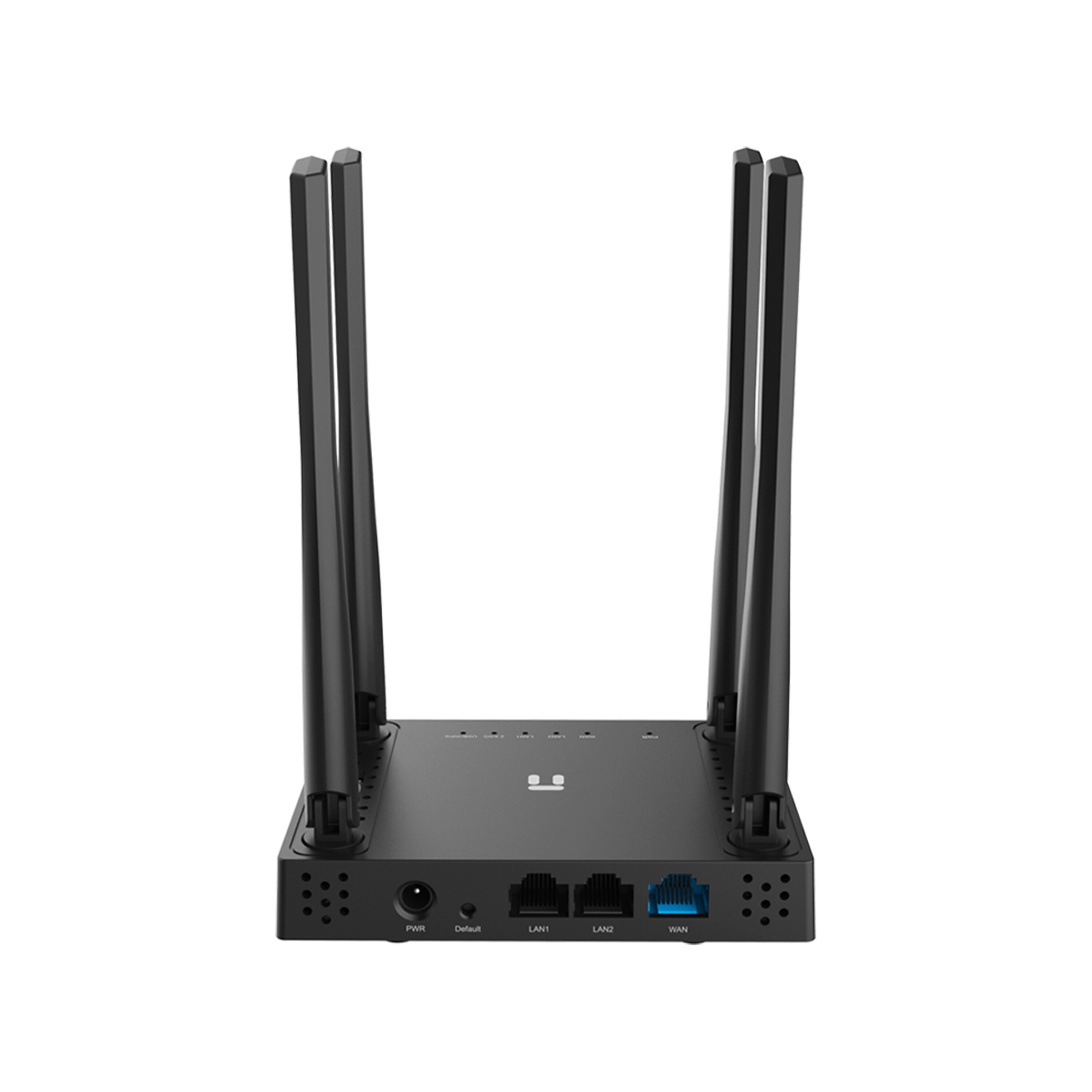

Interface	1* 10/100/100M Auto MDI/MDIX RJ45 WAN port 2* 10/100/100M Auto MDI/MDIX RJ45 LAN port
LED Indicators	Power,LAN1-2,WAN,WLAN2.4G,WLAN5G,USB,WPS
Buttons	WPS/Reset
Antenna	4 * external 5dBi antenna
Power Supply	DC 12V/1A(Output)
Dimensions (L x W x H)	118* 86 * 22 mm
WAN Type	DHCP, Static IP, PPPoE, L2TP, PPTP
Others	Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ，VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore

Others

Certification

FCC, CE, EAC

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

1 * N5

1 * Quick Install Guide

1 * Power Adapter
