E3
AC1200 Dual Band Mini WiFi Router
  • Dual band speed of 1167Mbps
  • Three modes cope with a variety of application scenarios
  • Router mode for secured internal network setup from a DSL or cable modem

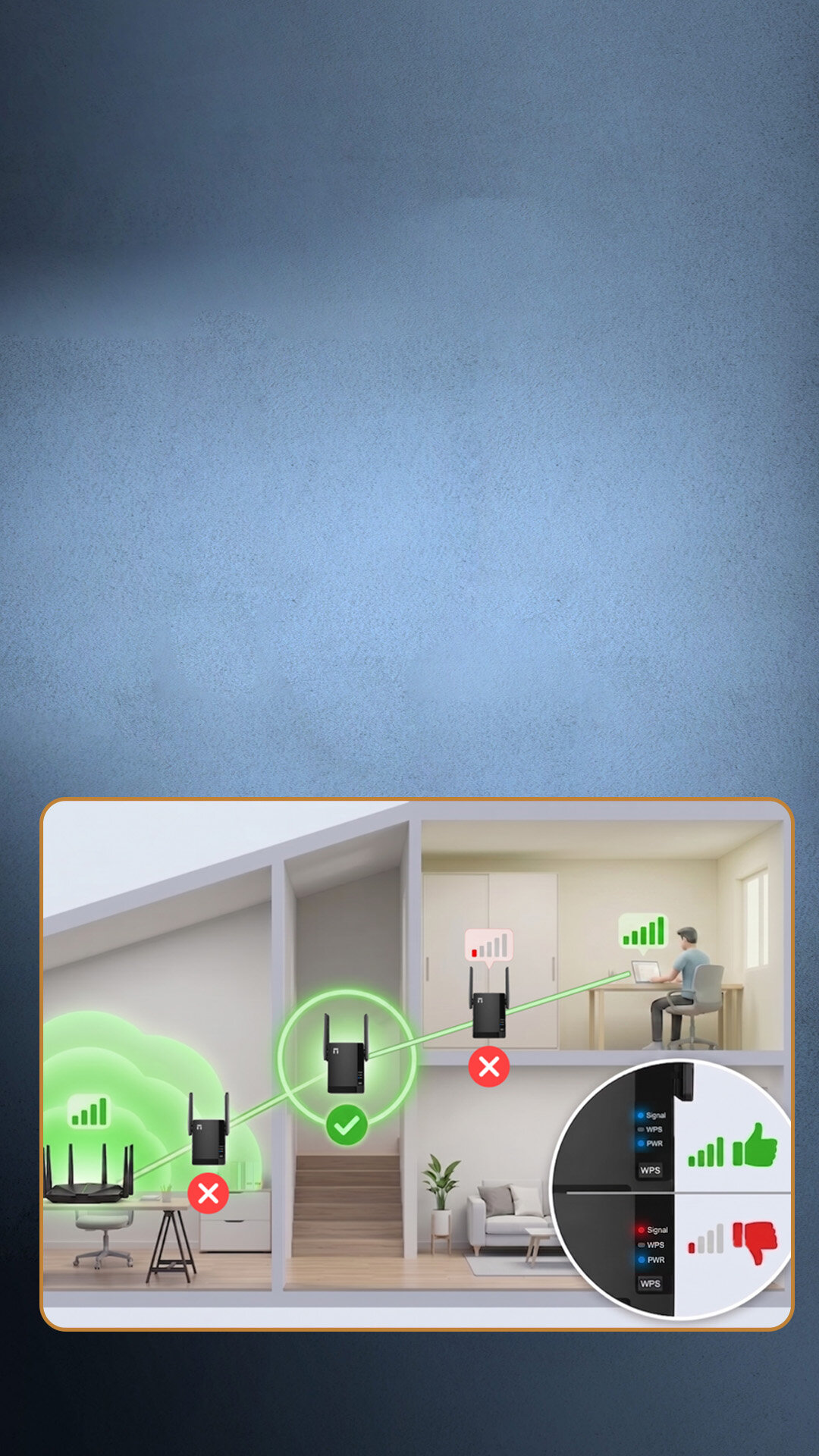

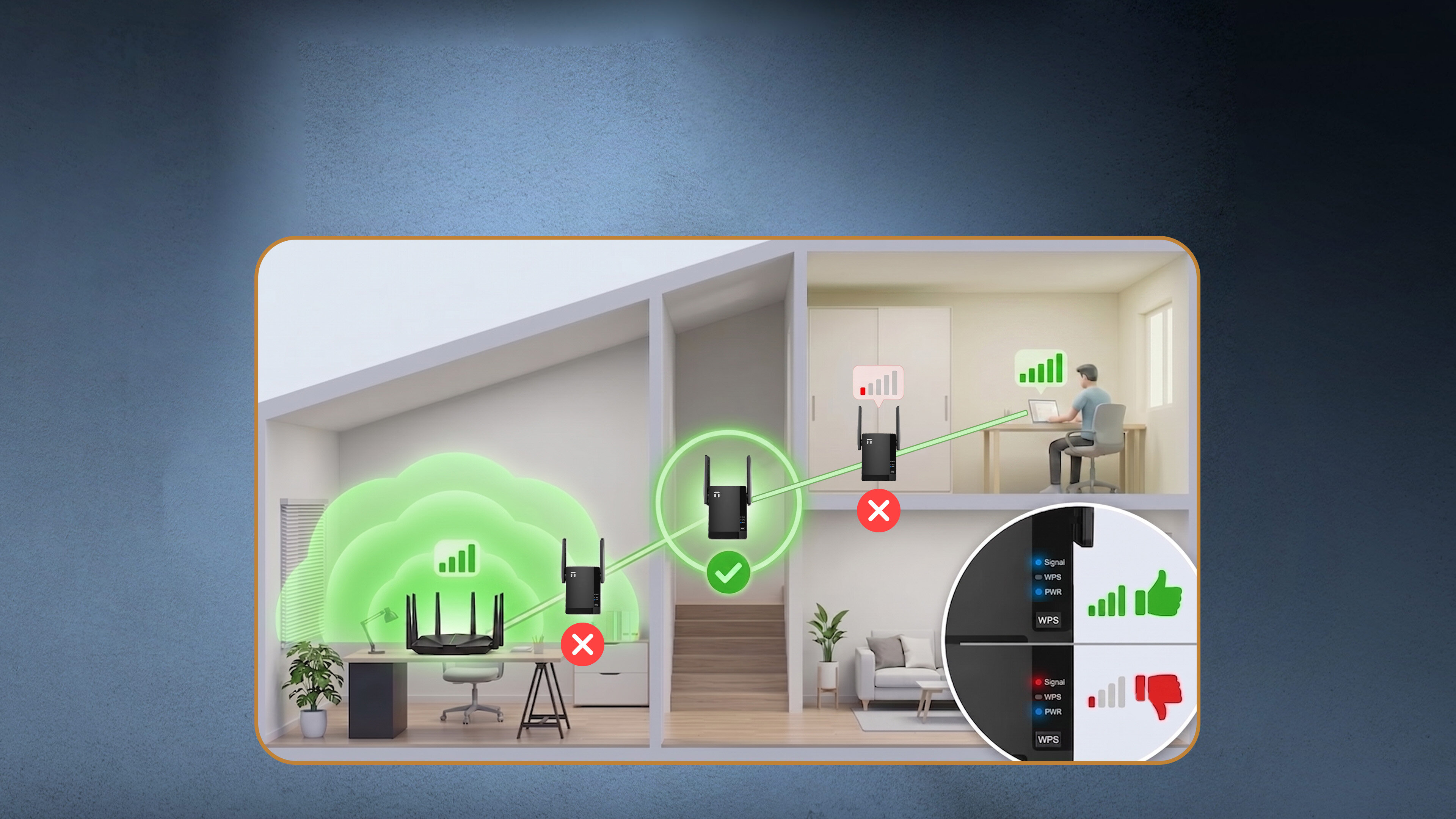

  • Smart Signal indicator helps to locate the range extender in a right place
  • WPS button for quick extender setup.
  • US, EU plugs available.
  • Intelligent bandwidth control.
  • Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
  • Quick setup.
  • Just Plug and Play
Overview | Specifications | Download

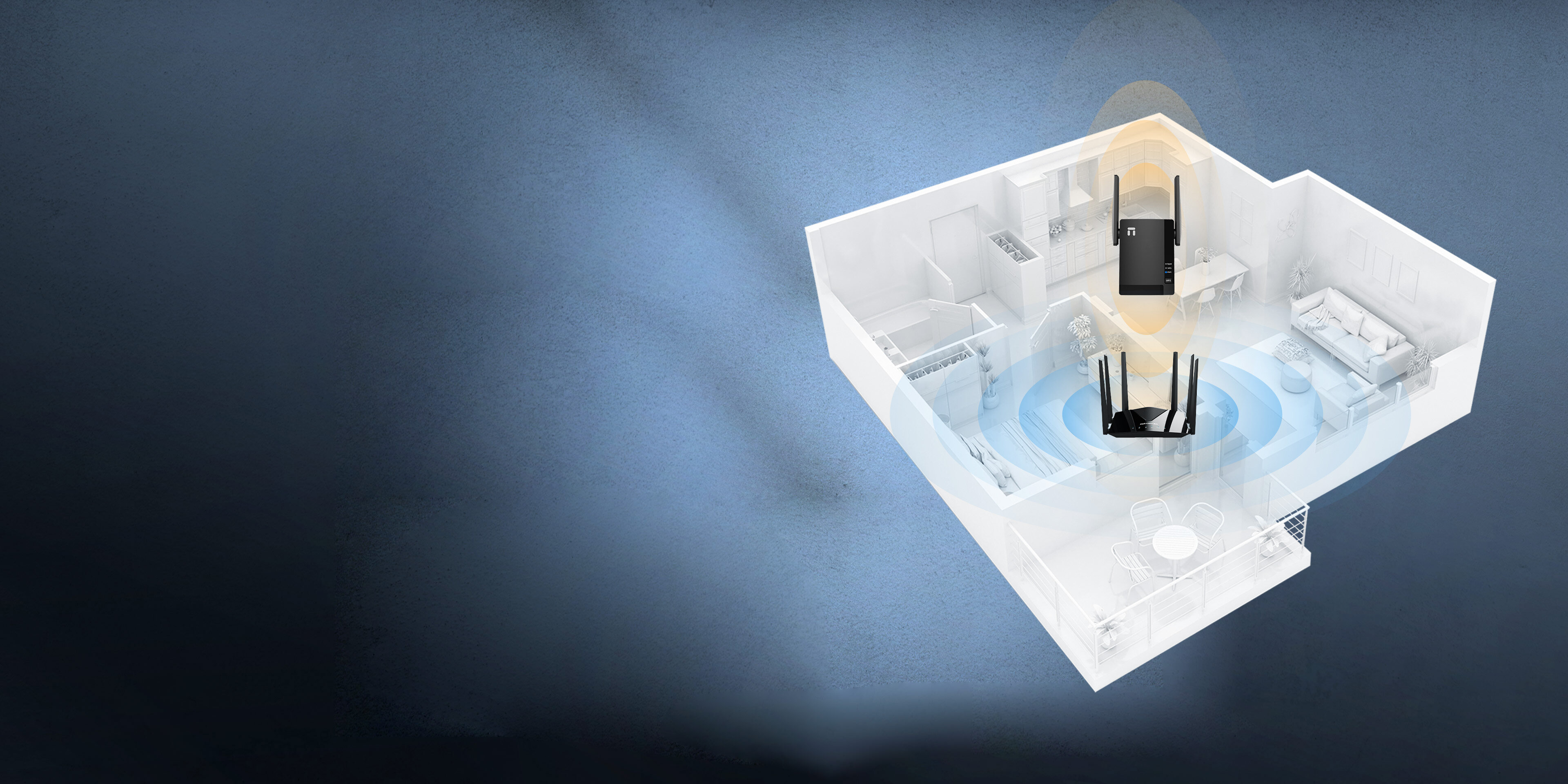

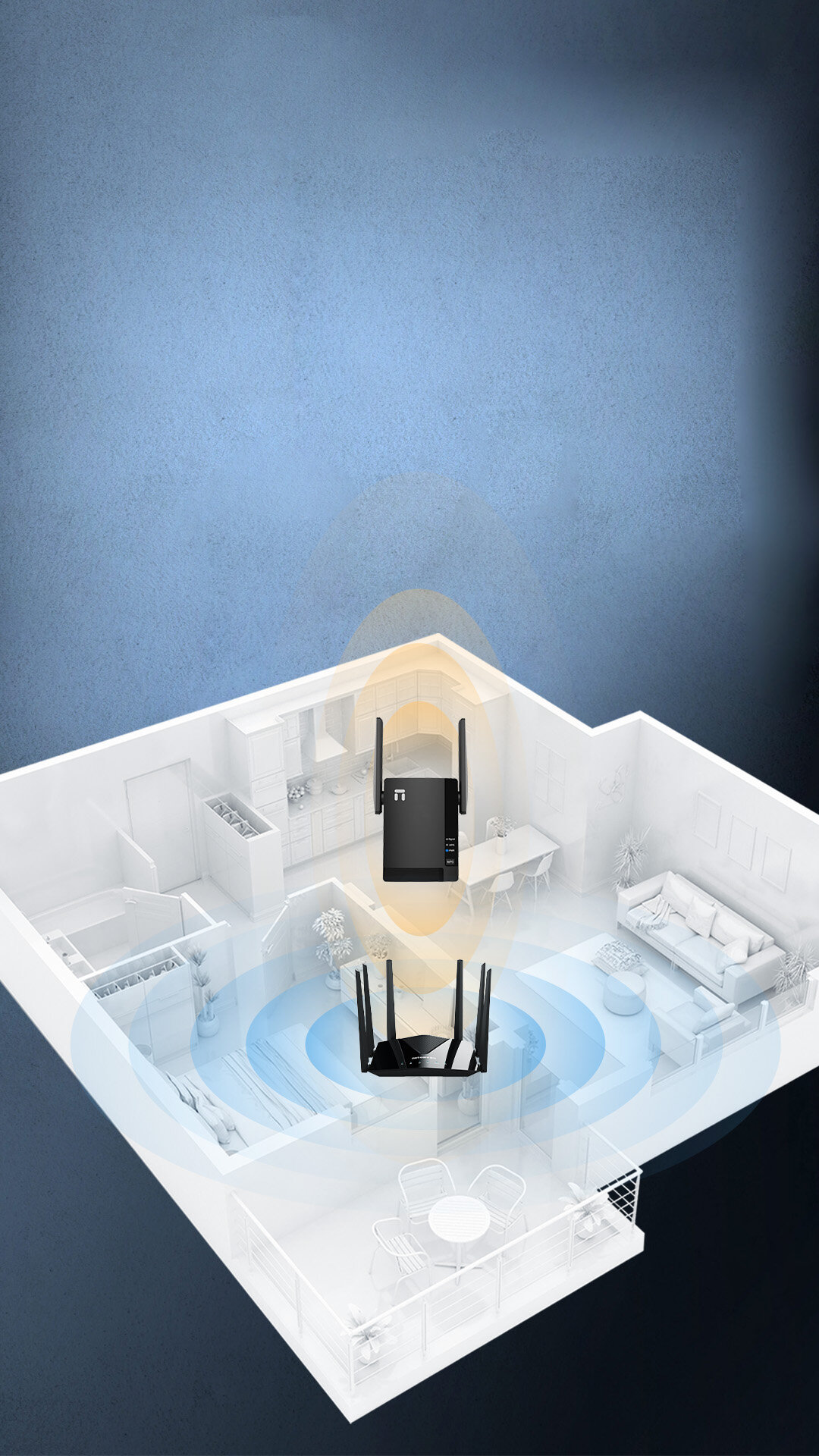

Whole Home Wi-Fi Coverage
AC1200 Dual Band Mini WiFi Router
E3
Router/ AP/ Repeater Three Working Modes
2.4G+5G

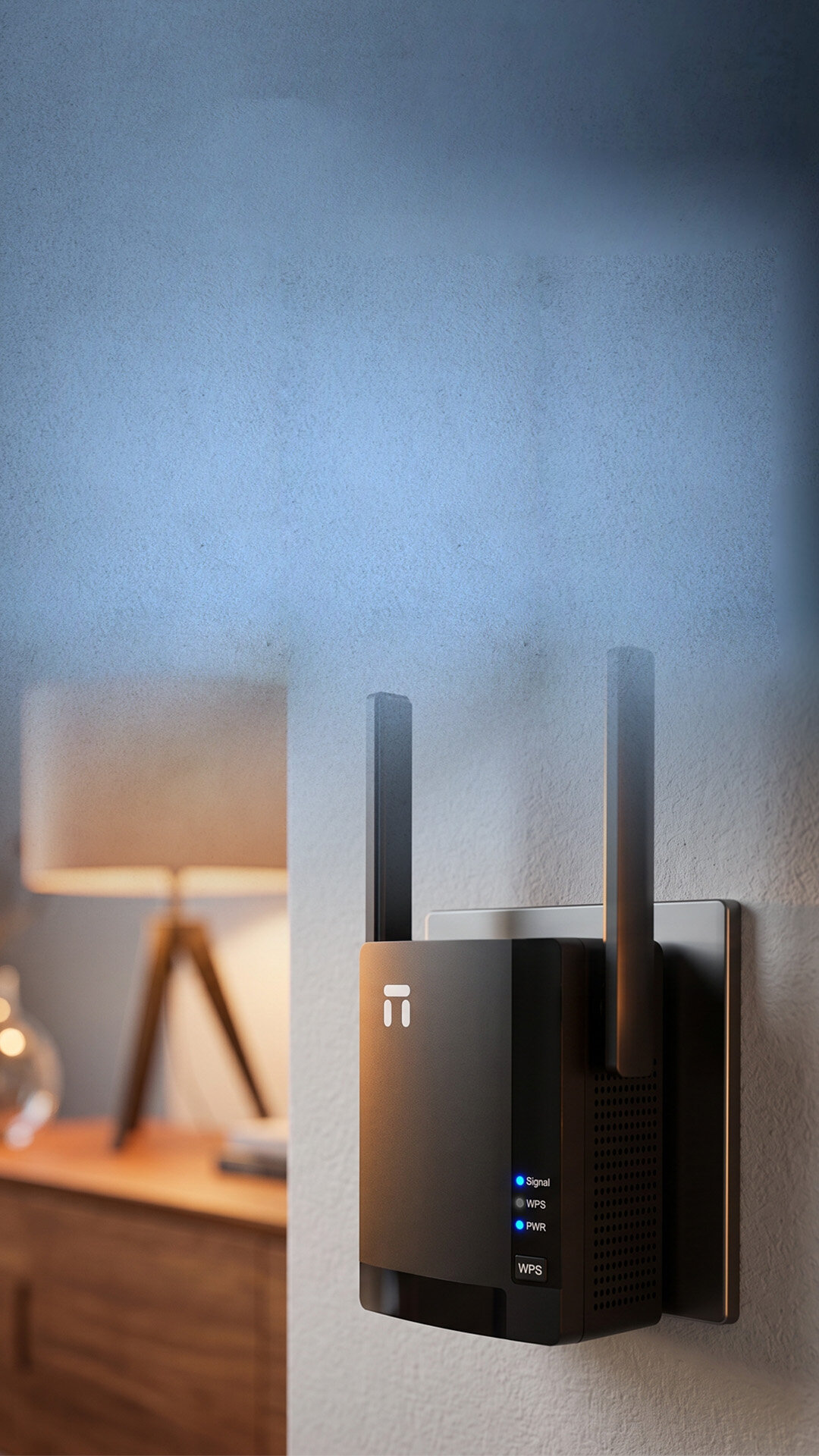

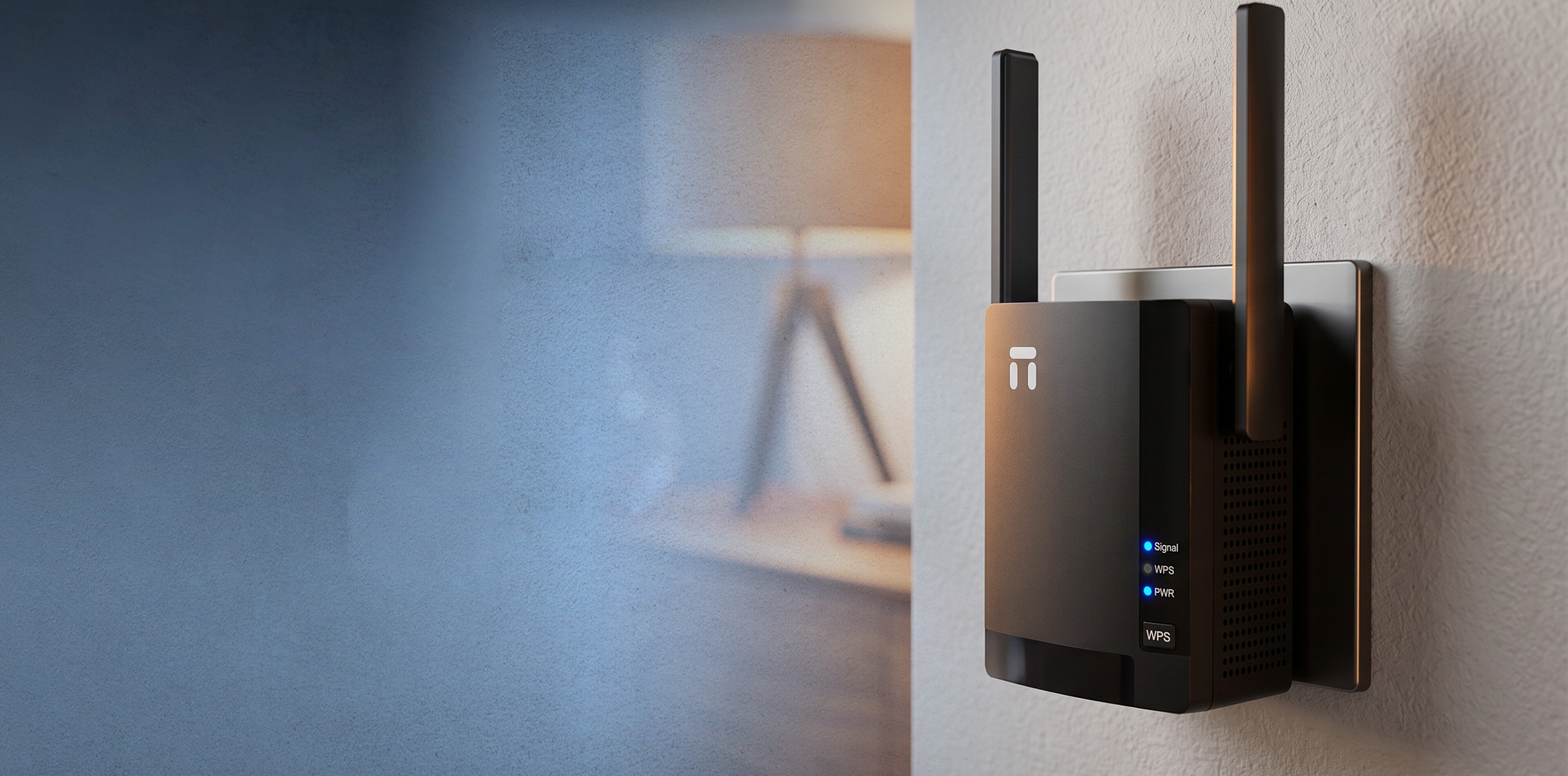

Portable Design
IPV6
Easy Setup
MU-MIMO
3dBi Antenna
WPS
AC1200 Dual-Band WiFi
Enjoy Home Entertainment Without Any Lag
Enjoy home entertainment without any lag, reaching speeds up to 1200Mbps.
(867Mbps on the 5Ghz band and 300Mbps on the 2.4Ghz band)

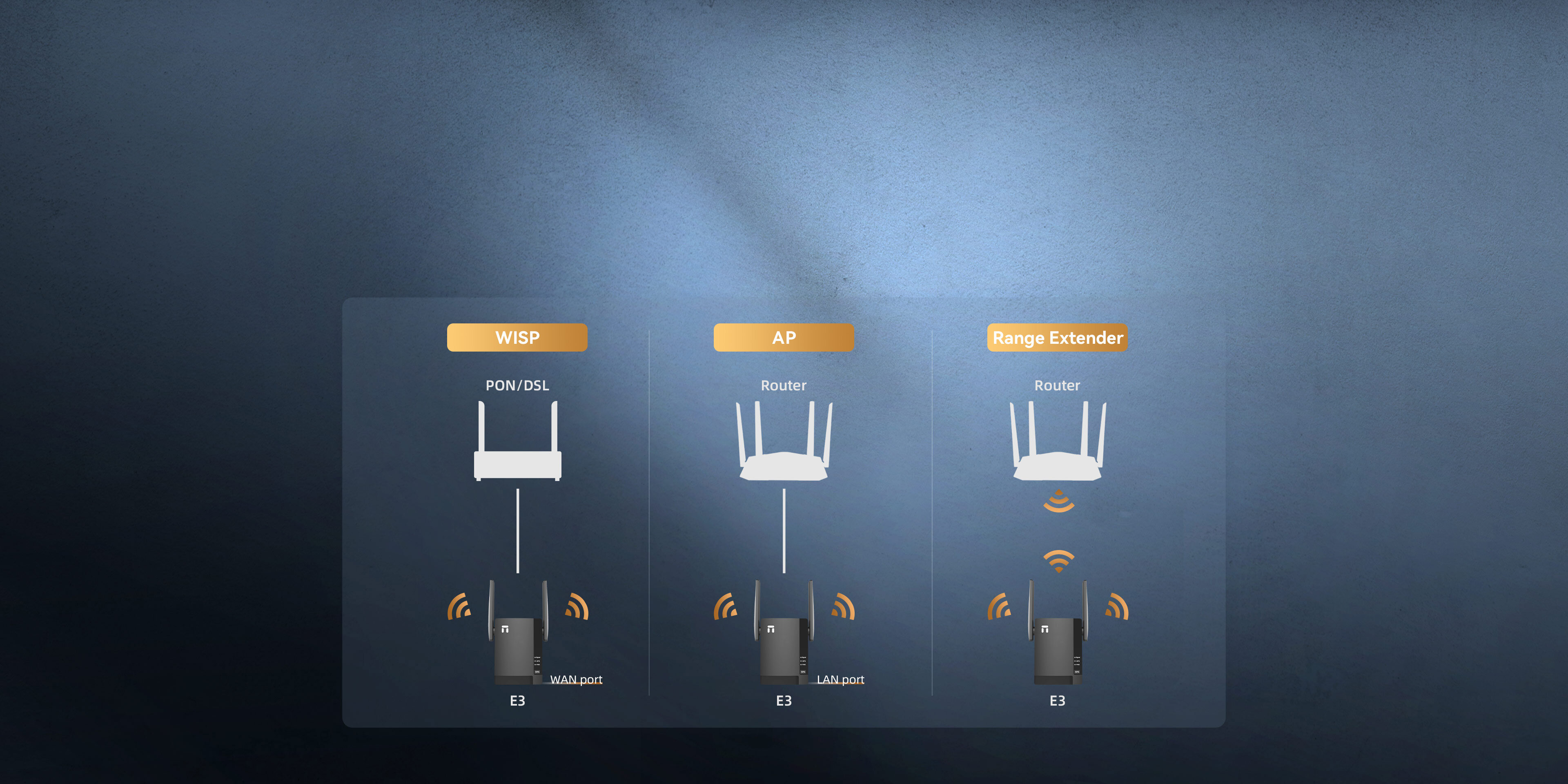

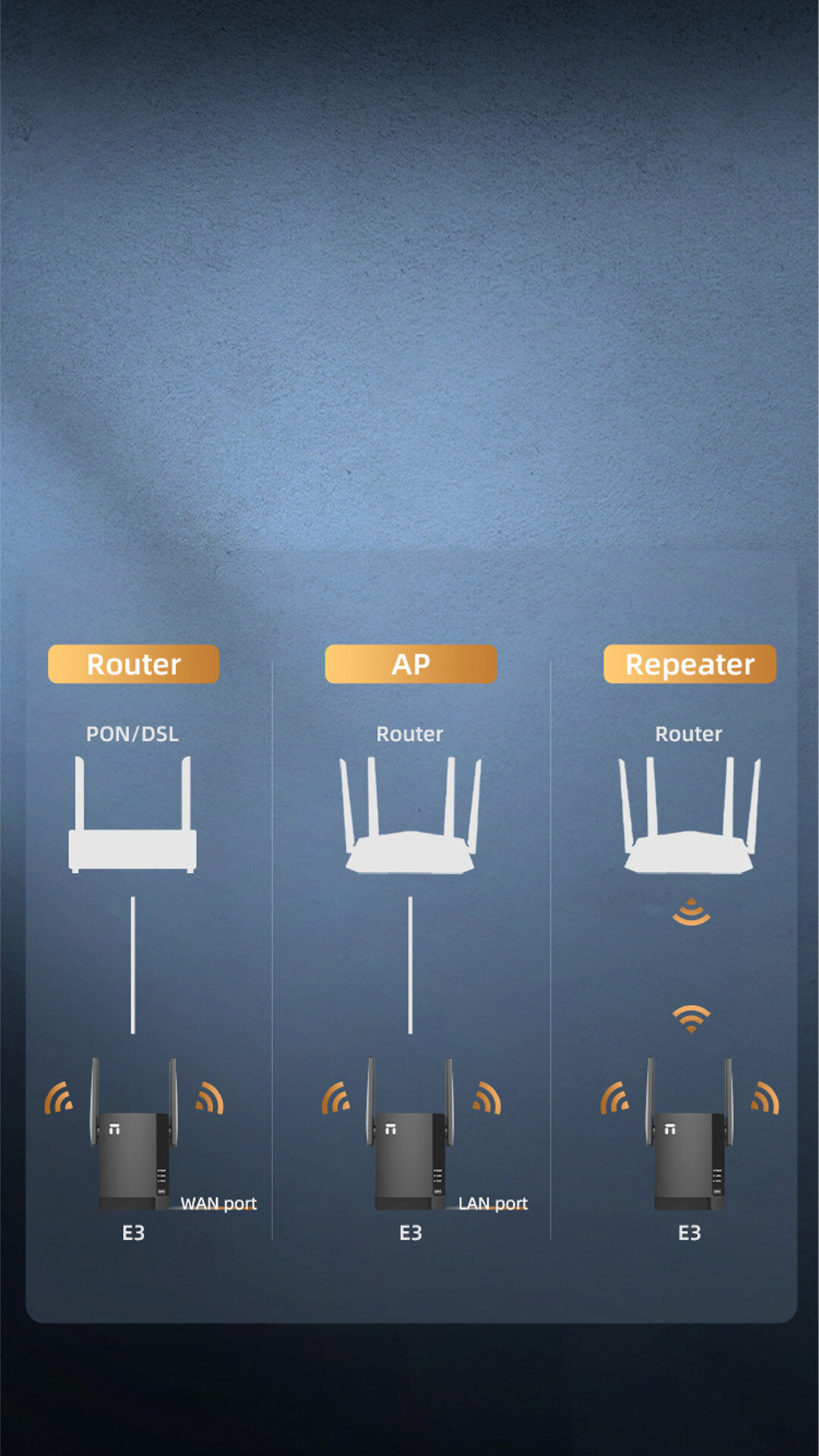

Router/ AP/ Repeater
Three Working Modes
E3 can Support three modes of router/AP (wired repeater)/wireless repeater,
users can choose the corresponding mode according to different Internet access needs.
MU-MIMO Technology
Mutiple Devices to Connect Simultaneously
E3 is the superior choice for seamless HD streeaming, online gaming and other bandwidth-intensive tasks at the same time to allow connected devices achieve faster speeds than standard AC routers, improving network efficiency.
Easy Setup and Use
Set up your router in minutes with the intuitive web interface.
Specification
Wireless

Standards

IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Signal Rate

Up to 300Mbps2.4GHz
UP to 867Mbps 5GHz

Frequency Range

2.4~2.4835GHz and 5.150 ~5.85GHz

Transmit Power

20dBm(MAX)

Data Transfer Rate

802.11ac:80MHZ(433Mbps, 867Mbps)



802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

AP, Repeater, Router

Wireless Security

None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed
IP Filtering/MAC Filtering/Domain Filtering/IPv6 Filtering

Hardware

Standards

IEEE 802.11b/g/n/ac

Interface

1*10/100Mbps Auto MDI/MDIX RJ45 WAN port
2x2 11b/g/n/ac 2.4 / 5GHz dual band

LED Indicators

Power/Single Good/Single Poor/WPS

Buttons

1x WPS button/1x Reset to default button

Antenna

2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna

Power Supply

DC 3.35V/3A

Dimensions

74 x 50 x1.6mm(L x W x H )

Others

Support IPv4 / IPv6/DHCP server/LAN IP set /Firmware Upgrade/Diagnostic/Ping Watchdog /System Log
Others

Certification

FCC, CE, EAC

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

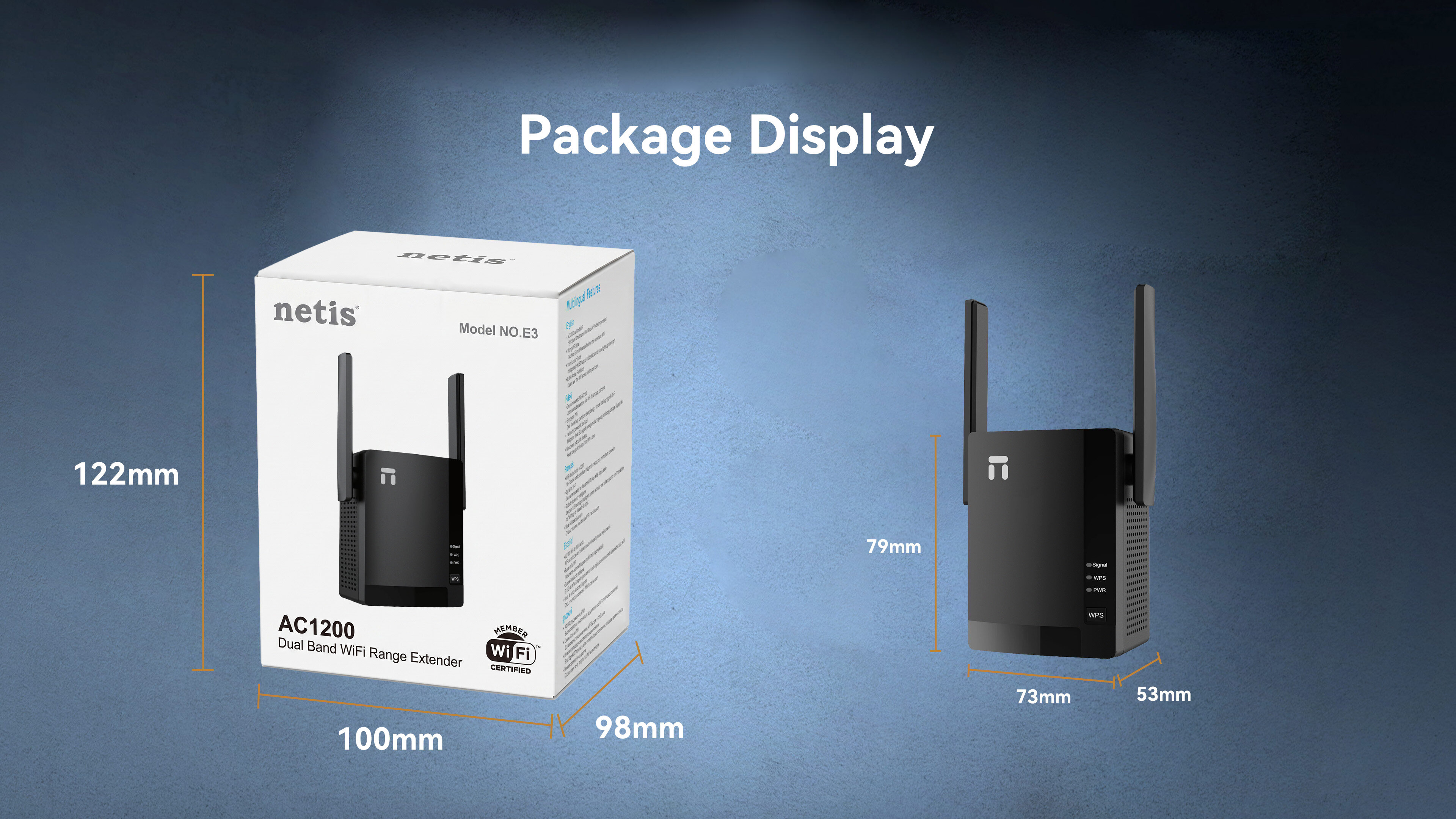

Package

1* E3
1* Quick Installation Guide (Multilingual)
