NC63
AC1200 Wireless Dual Band Gigabit MU-MIMO Router
  • Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections
  • Dual band concurrency，lower latency，lower consumption
  • Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP), WISP
  • MU-MIMO, beamforming technology.
  • Multi-SSID providing up to 8 additional separate networks for guests and friends
  • 6* 5dBi high gain antennas
  • Built-in signal power amplifier in chip for higher WiFi coverage
  • Intelligent bandwidth control.
  • Support EASY MESH networking
  • Complete Gigabit ports.
  • Easy setup and support App management conveniently.



Overview | Specifications | Download
Specification
Wireless

Standards

IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Signal Rate

Up to 300Mbps2.4GHz
UP to 867Mbps 5GHz

Frequency Range

2.4-2.4835GHz;5.180-5.825GHZ

Transmit Power

20dBm(MAX)

Data Transfer Rate

802.11ac:80MHZ(433Mbps, 867Mbps)



802.11n:

40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
803.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

AP Router,   Repeater, Client, Multi-SSID



Wireless Security

WEP/WPA-PSK/WPA2-PSK/WPA/WPA2-PSK Encryption
Wireless MAC Filtering

Hardware

Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Interface

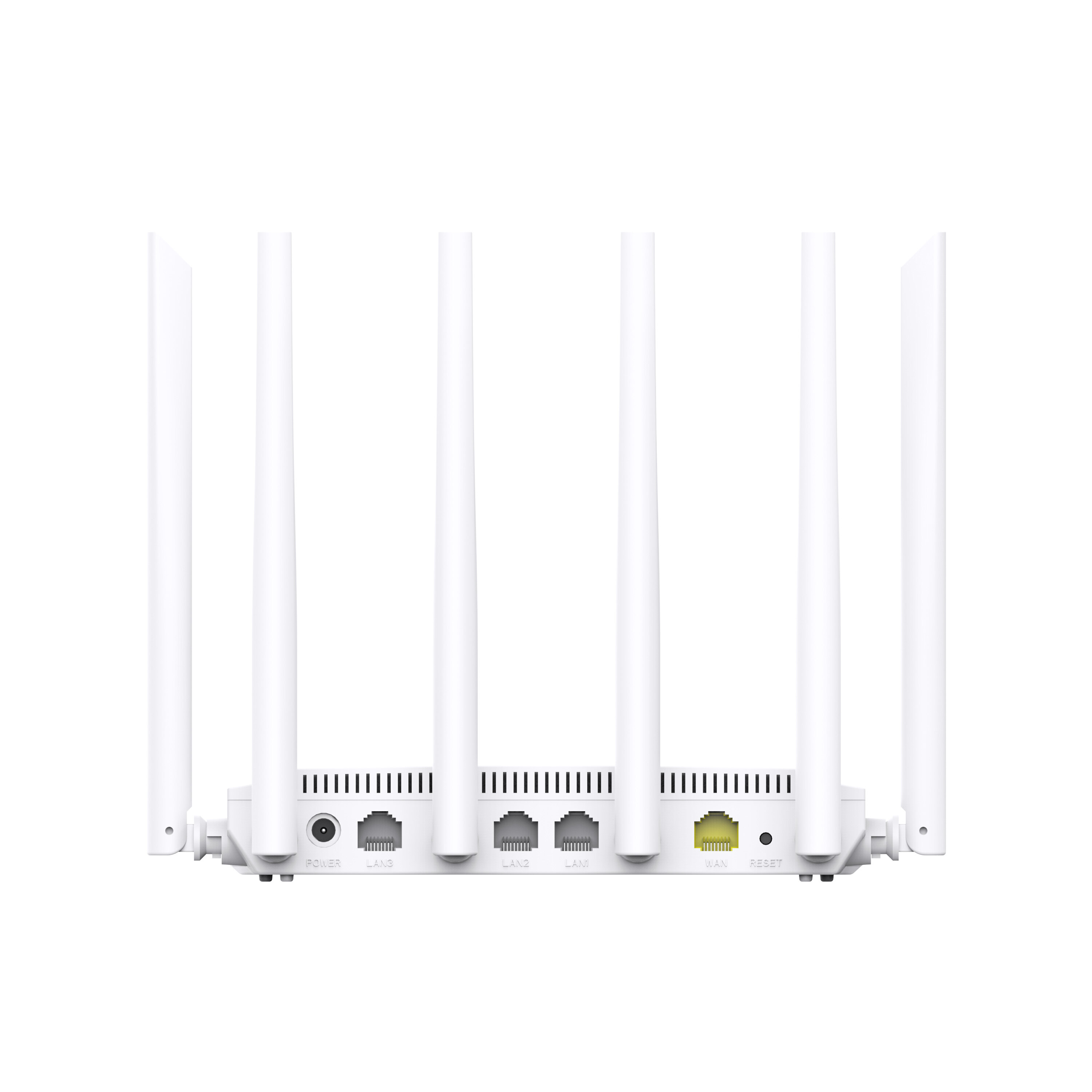

1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port
3*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port

LED Indicators

PWR、Internet

Buttons

Reset

Antenna

6* external fixed 5dBi antenna

Power Supply

DC 12V/1.0A(Output)

Dimensions(L x W x H )

182mm*108mm*35mm

WAN Type

DHCP, Static IP, PPPoE,（Russia PPPoE）, L2TP, PPTP,

Others

Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing,   Backup & Restore

Others

Certification

FCC, CE, EAC

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package

1* NC63
1* Power Adapter
1* Quick Installation Guide (Multilingual)
