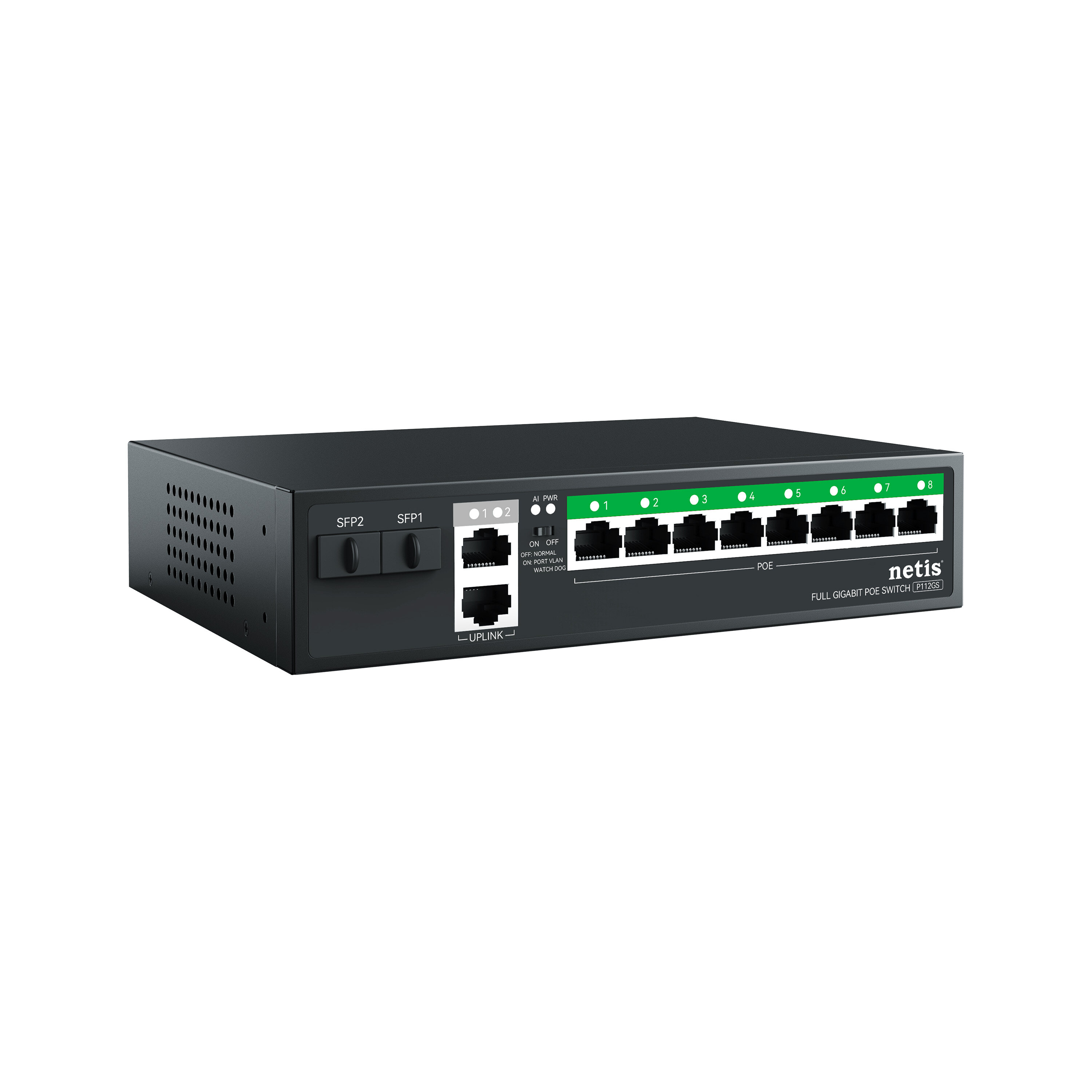

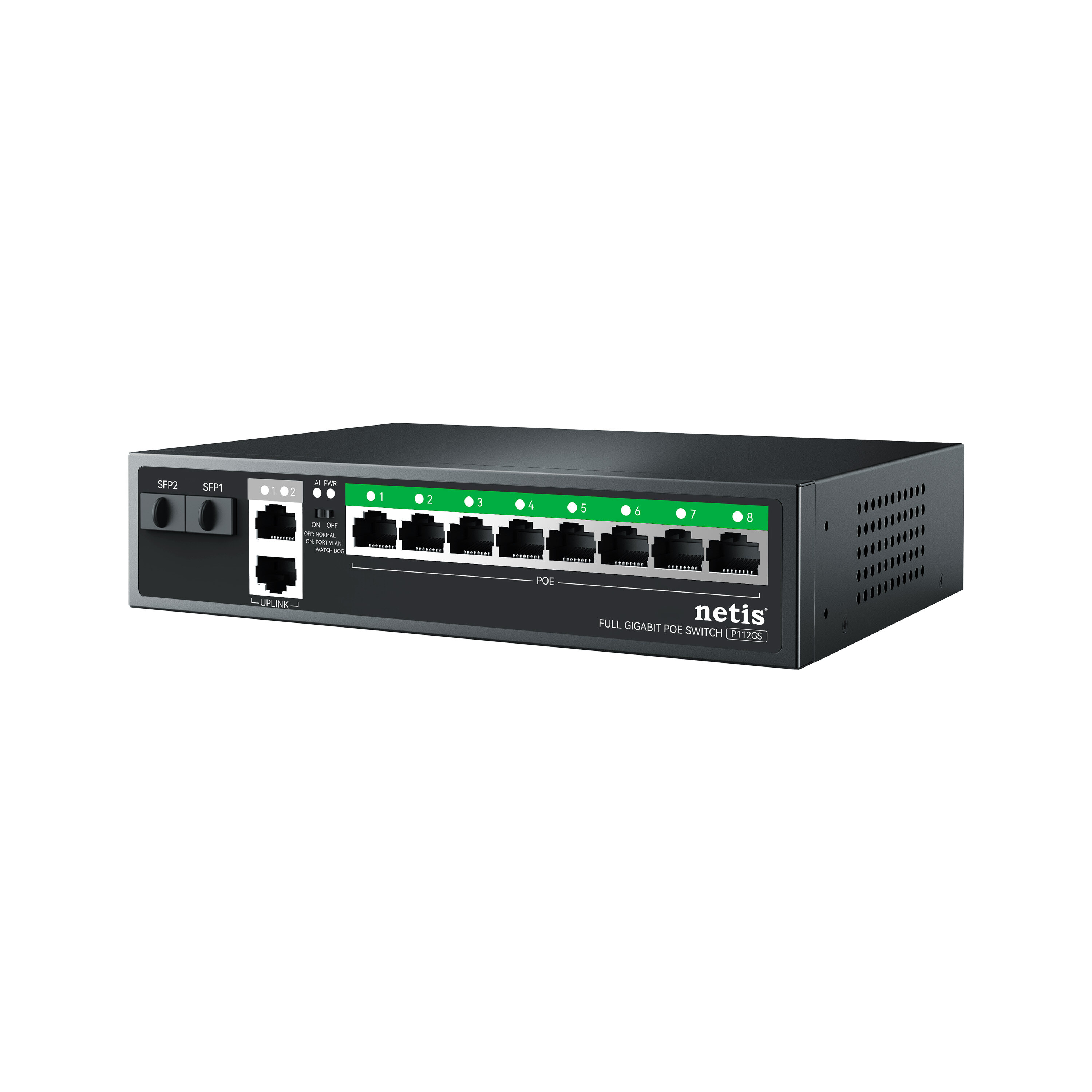

Interface

8 10/100/1000Mbps POE Ports(Data /Power)

2 10/100/1000Mbps RJ45 Ports(Data)

2 SFP Slot(Data)

LED

PWR: Lighting - The device is powered on normally

AI: Lighting - The intelligent mode is enabled

Port: Lighting - Port link is normal

Blinking - Data in transit

Mode

Normal

Port VLAN + Watch Dog Mode

Backplane bandwidth

24G

MAC Address Table Size

2K

Cabling type

1000Base-T: 4 pairs of Cat5e or above UTP/STP(≤100m)

100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m)

10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m)

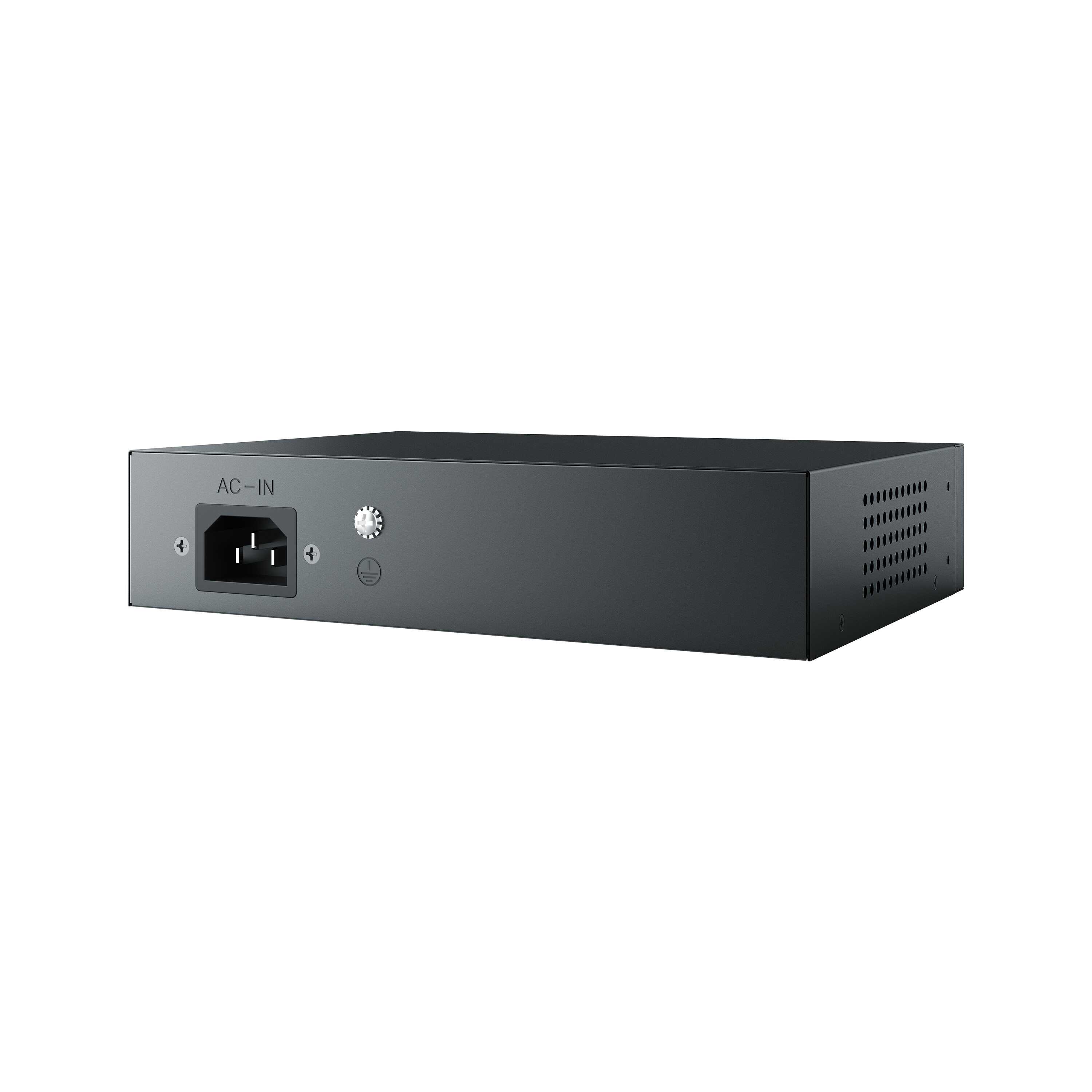

Power supply

AC input 100-240V, standard 120W power supply

Basic function

Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol

Supports POE IEEE 802. 3af/at compliant Powered Device (PD)

Store-and-forward switching scheme

Compatible with certified non-standard electrified equipment (PD)

Support IEEE802.3X full duplex and Backpressure half duplex

MAC address auto-learning & auto-aging

VLAN port isolation

AI Monitor

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3af/at, Power over Ethernet

IEEE 802.3x Flow Control

Data Transfer Rate

10Mbps(Half-duplex and Full-duplex)

100Mbps(Half-duplex and Full-duplex)

1000Mbps(Full-duplex)

Environment

Operation Temperature：0℃～40℃

Storage Temperature：-40℃～70℃

Operation Humidity：10%～90% RH Non-condensing

Storage Humidity：5%～90% RH Non-condensing

Dimensions

190*140*43mm(L * W * H )
