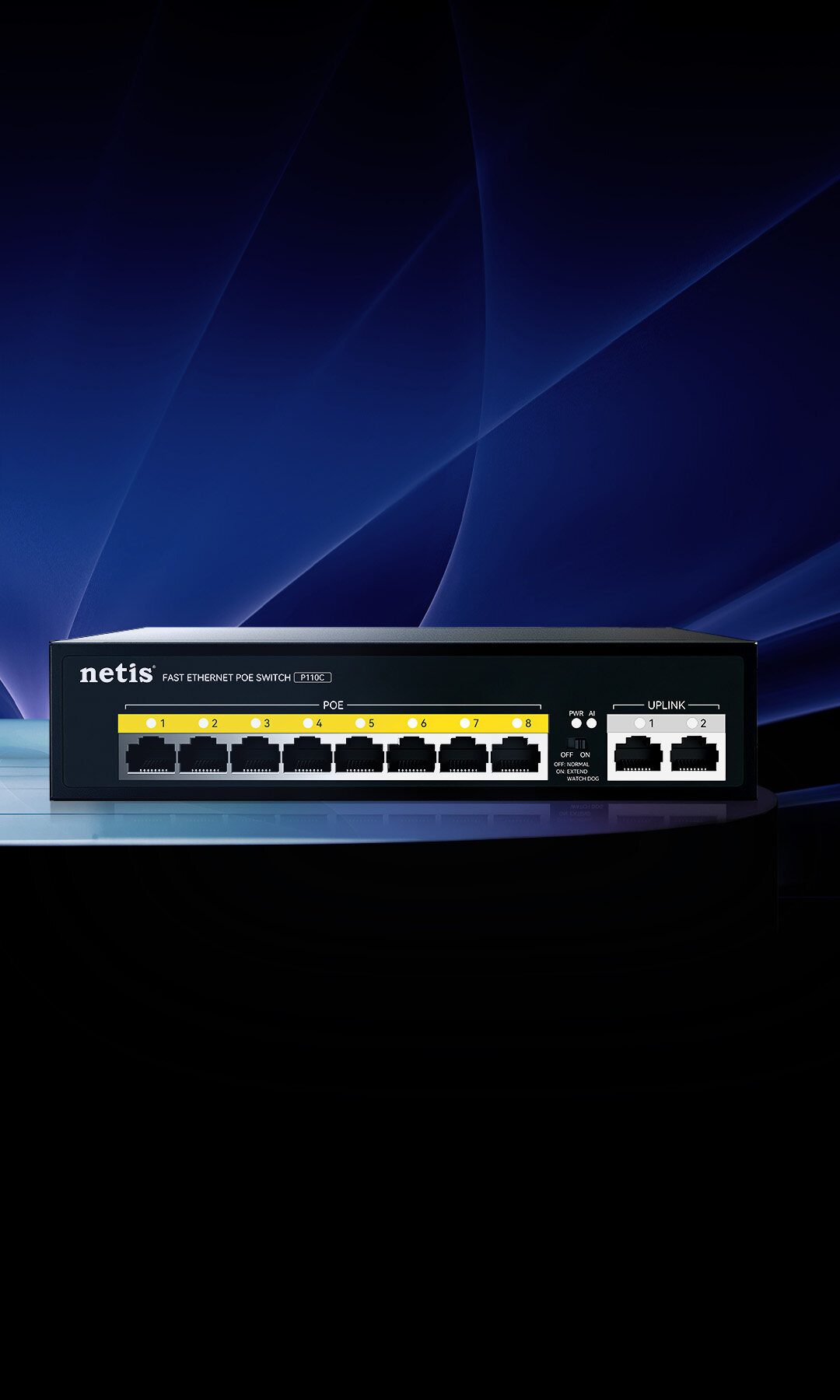

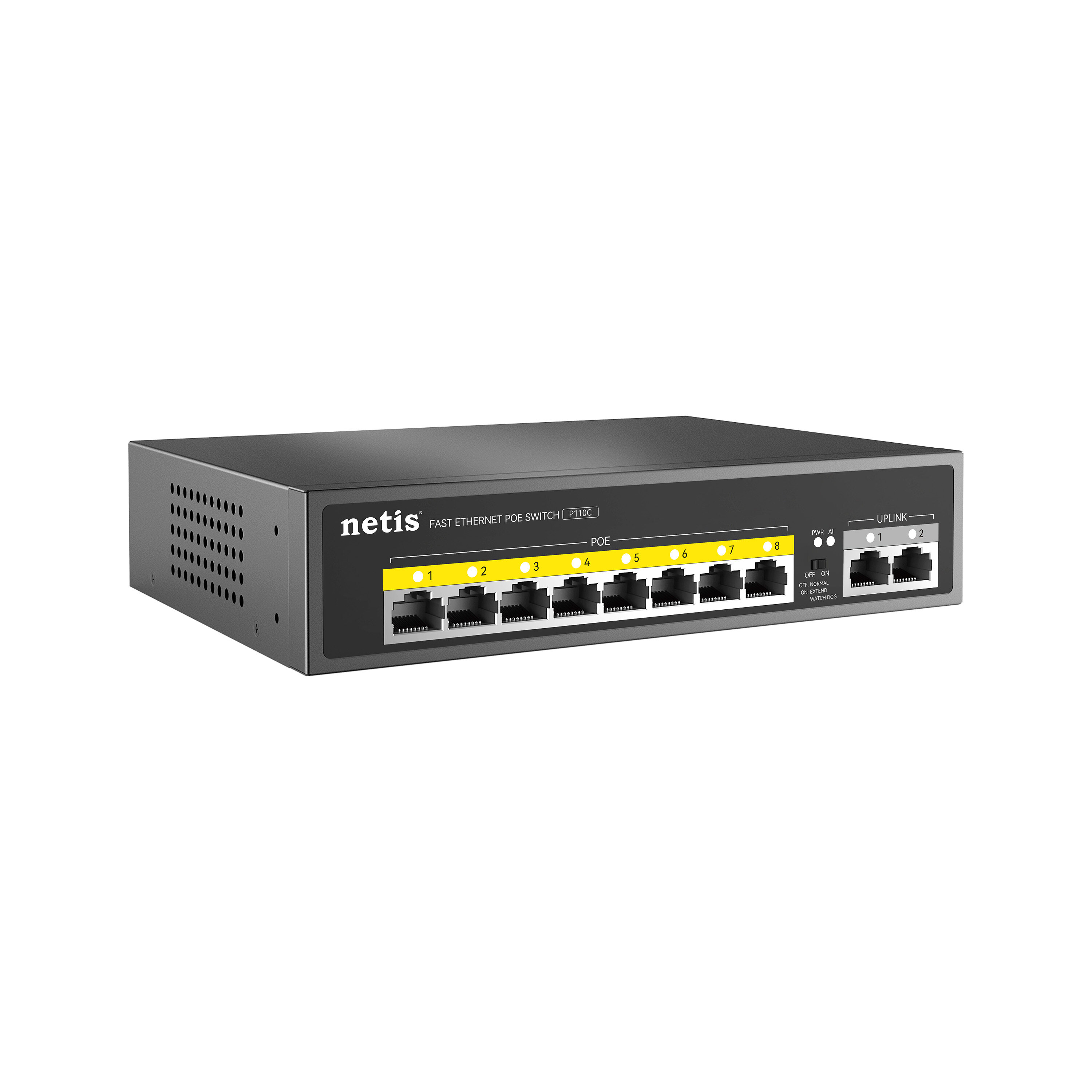

P110C
8POE+2RJ45 100M Standard POE Switch
- Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
- POE IEEE 802.3af/at compliant Powered Device (PD)
- Modes: Normal Mode/Extend+Watch Dog Mode
- Ports 1~8 features POE power supply capability and can be used as power over Ethernet devices
- Auto MDI/MDIX crossover for all ports
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- Non-blocking wire speed forwarding
- MAC address auto-learning & auto-aging
- Steel case，the total POE power budget of 120W
- Just Plug and Play
Fast Ethernet Standard POE Switch
8FE POE+2FE UPLINK
P110C
AI Watch Dog
Extend to 250m
Steel Housing
120W Power Supply Unit
Plug and Play

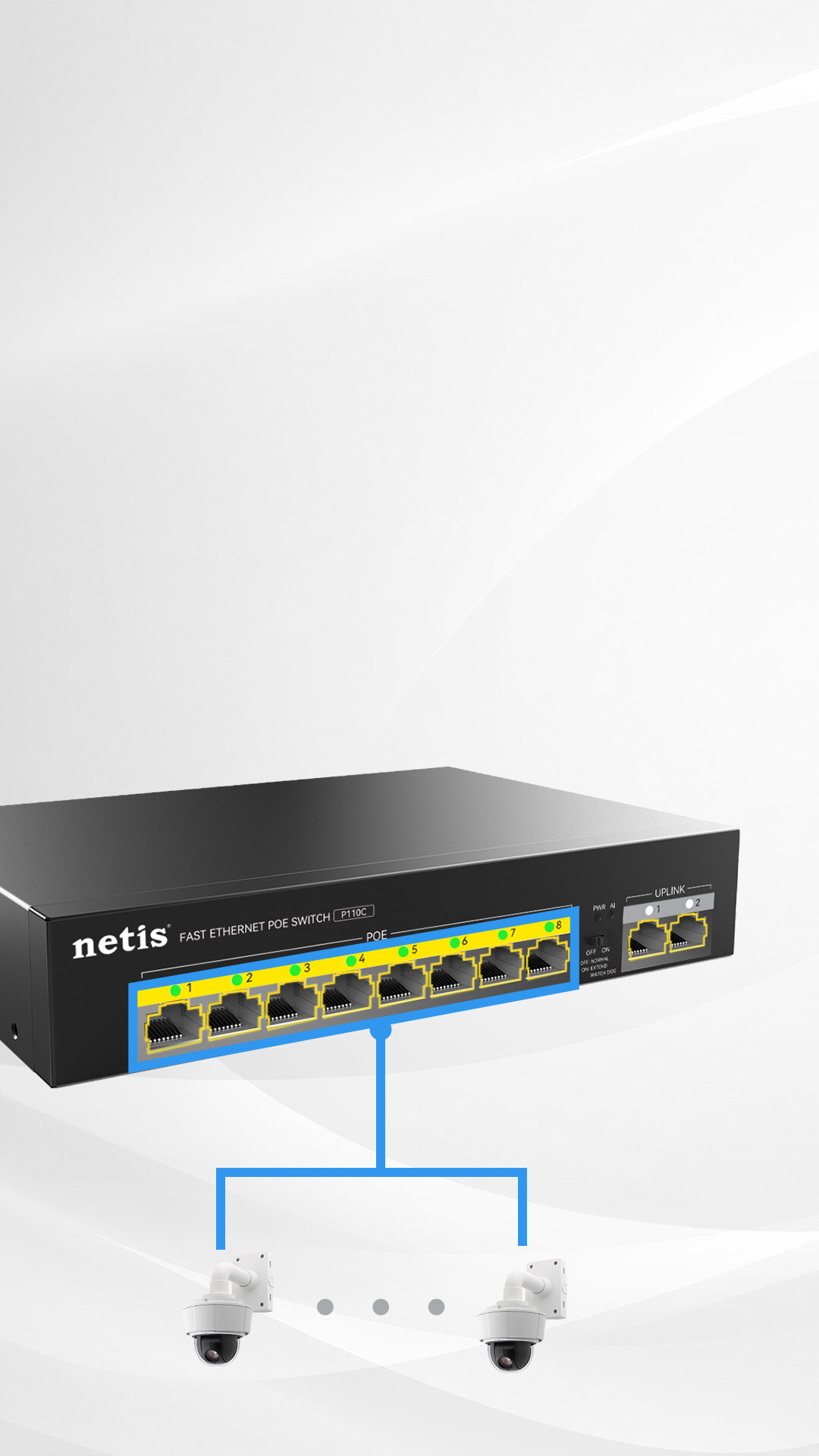

120W Power Supply Unit
Standard POE power supply
The device power is 120W, power of each port is up to 30W. It supports IEEE802.3af/at power supply, automatically identify if powered devices support POE or not. The powered devices do not need external power supply. The network cable can transmit power and data at the same time. More flexibility in deployment.

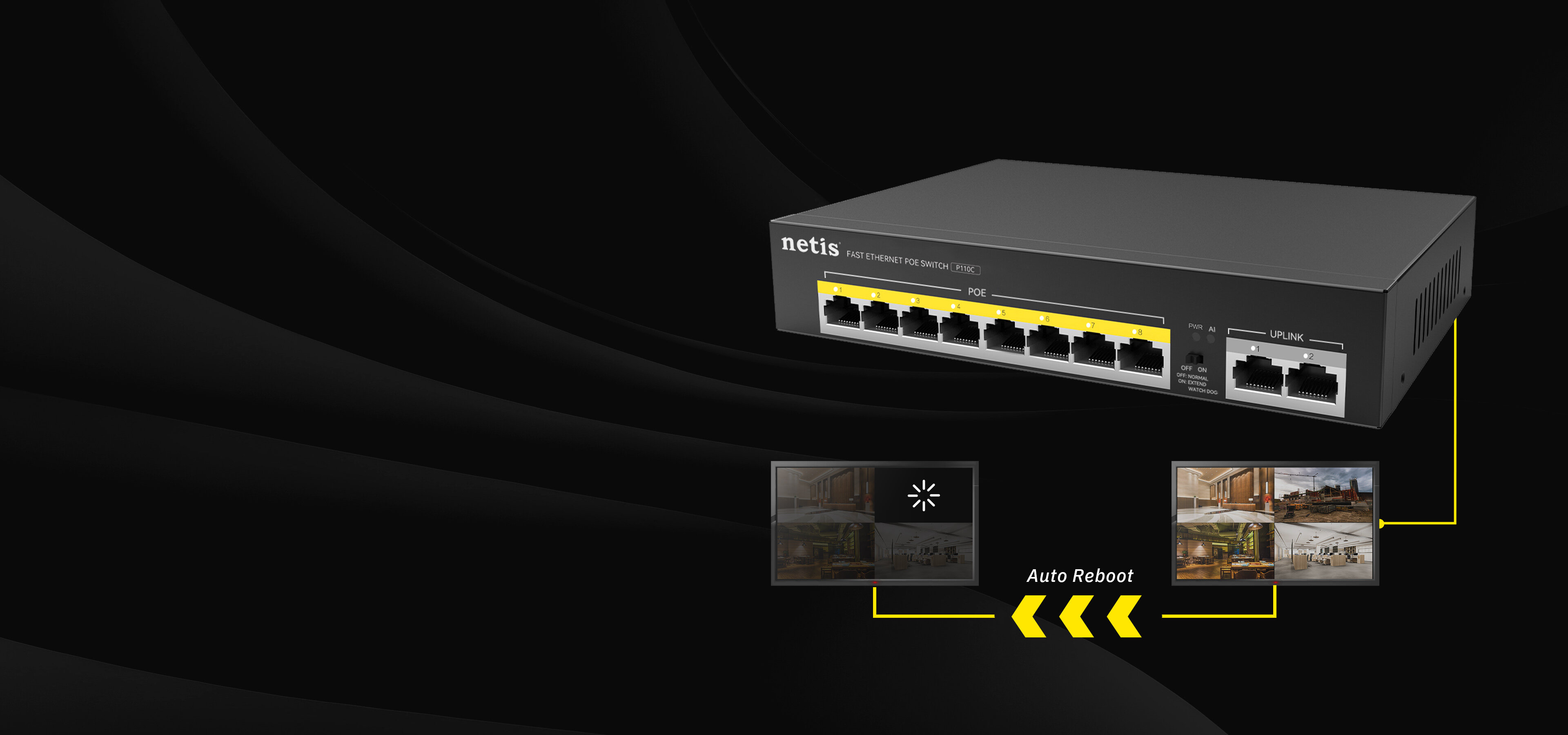

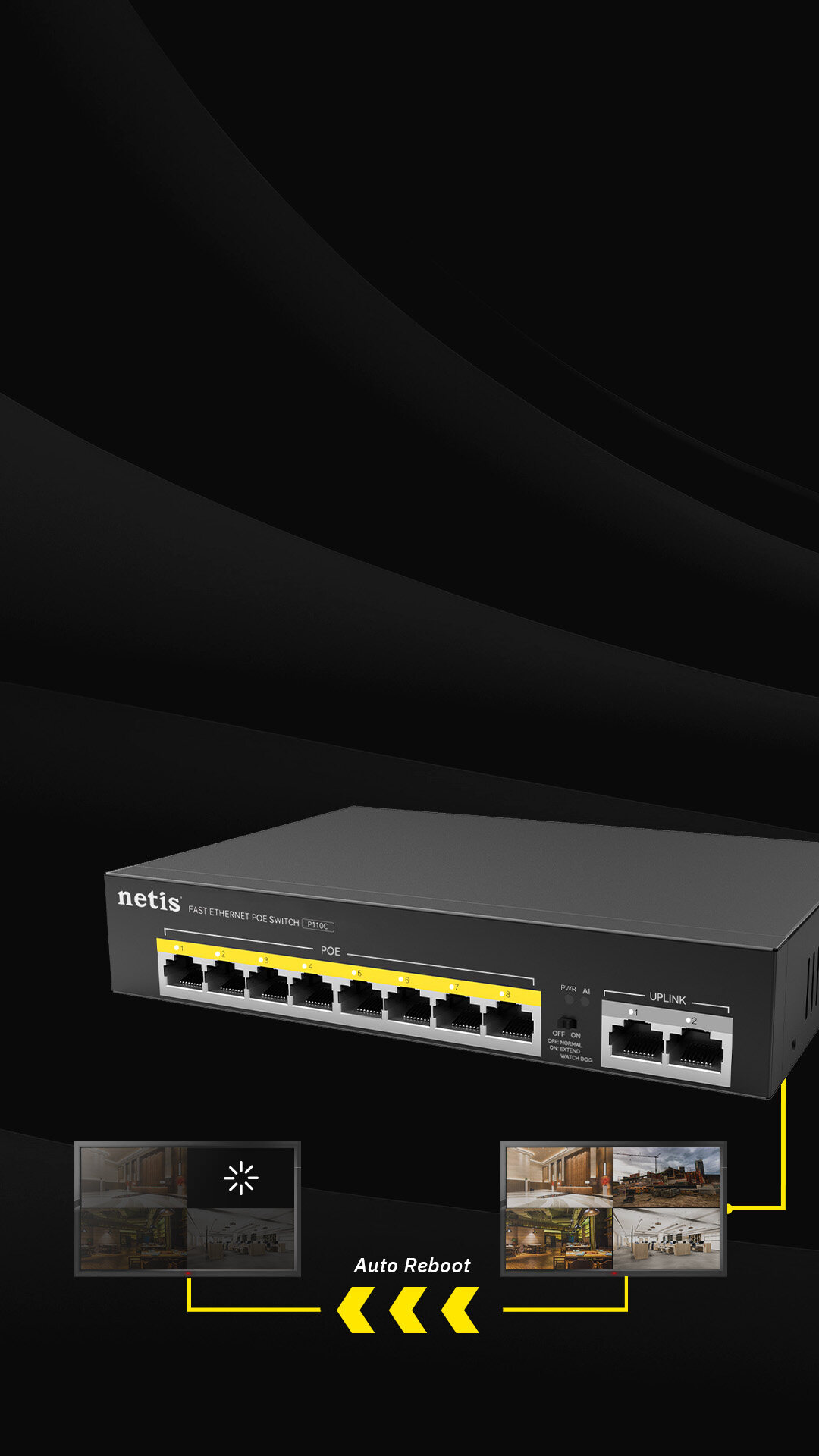

AI Watch Dog
Intelligent Detection And Troubleshooting
Automatic restart the problem port
Solve most of the problems effectively, such as camera crash and frozen screen.
Low-voltage power supply after restart
Great protection to the camera
Smart troubleshooting detection
Reduce on-site maintenance costs, save your time and energy
24-hour watch
A faithful guardian of the monitors

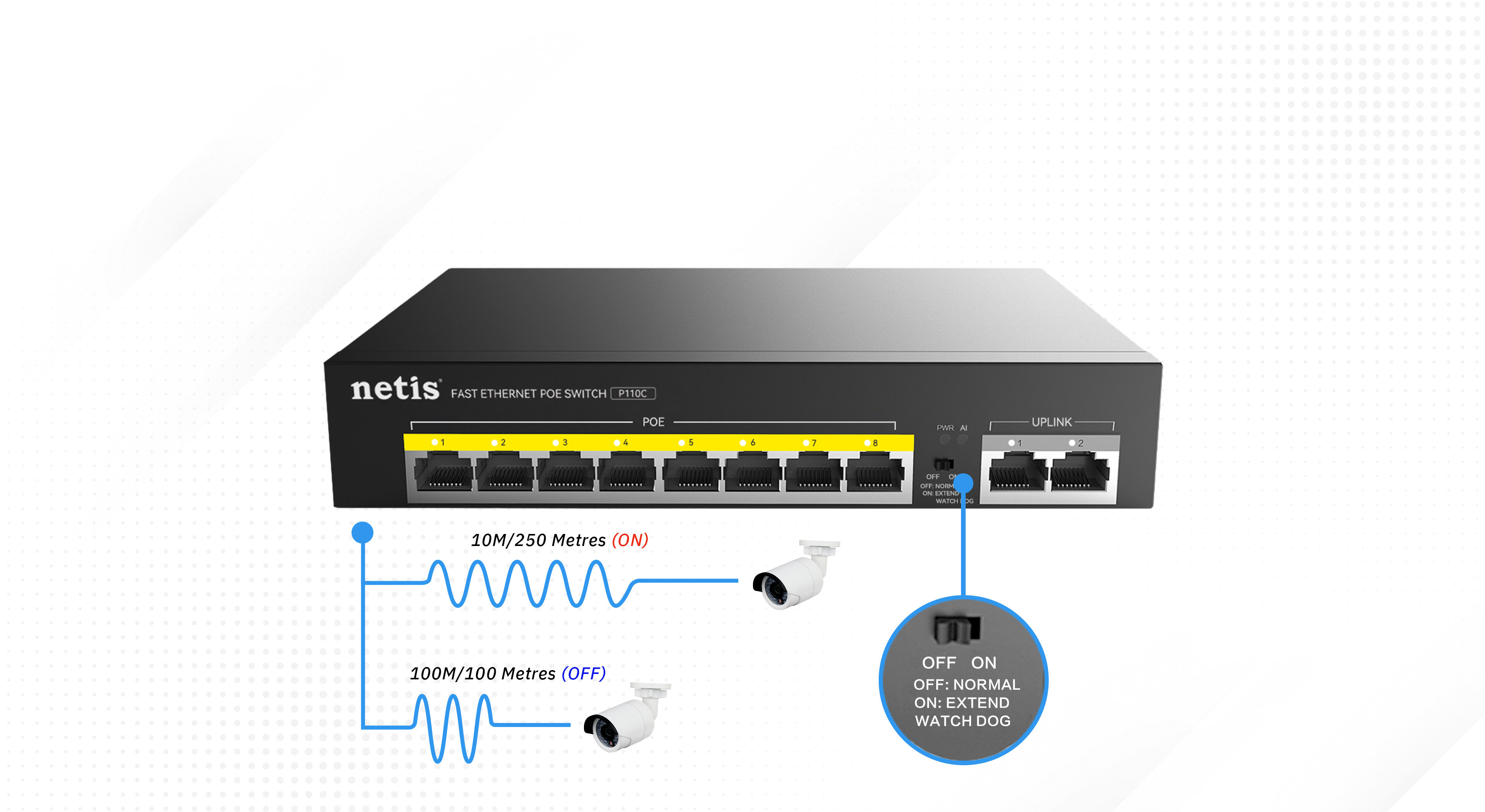

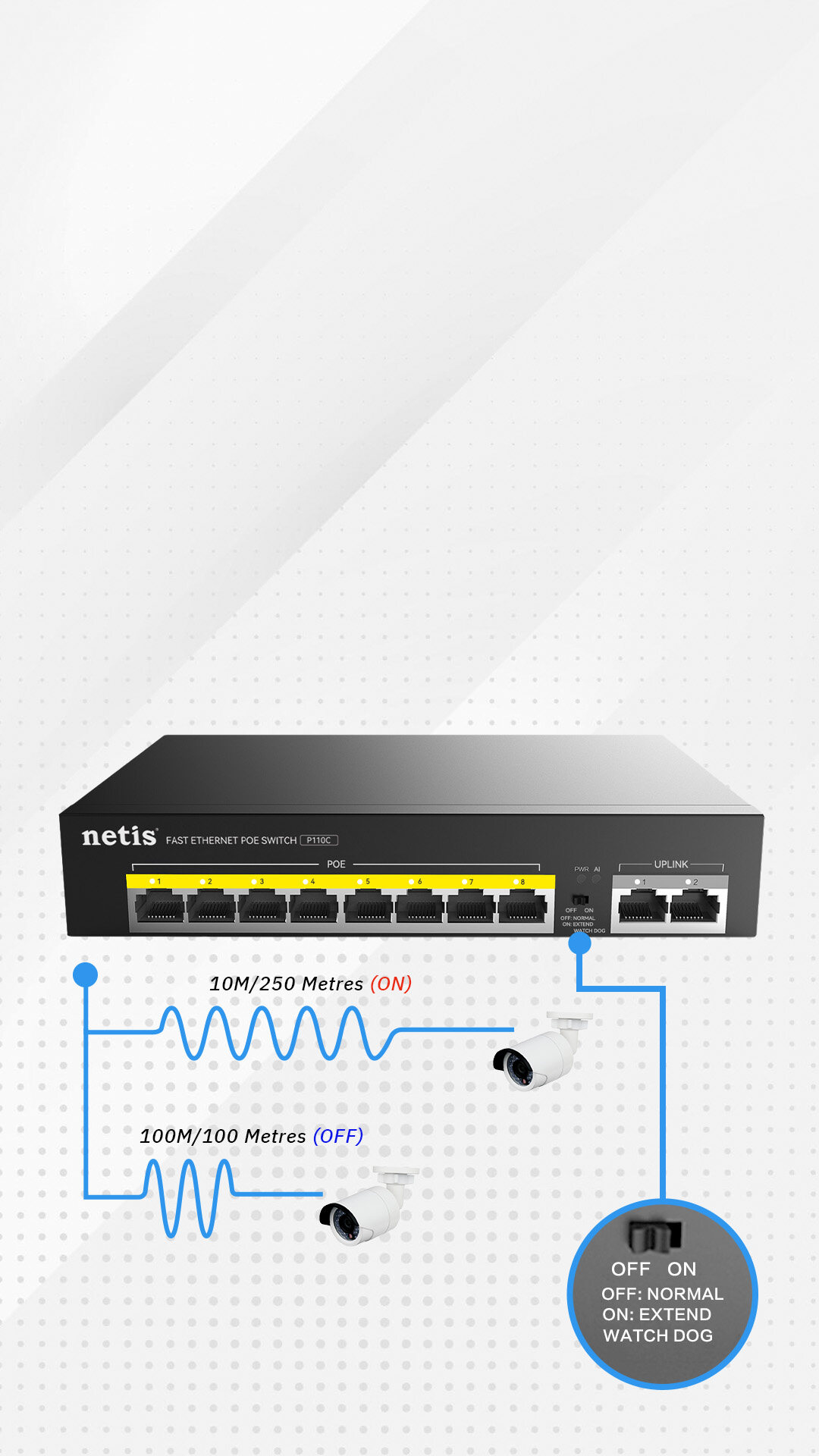

Network Cable Extended to 250 Metres
Stable Transmission
With a ON/OFF switch on the switch for AI function, support watch dog and extend functions, extend the power supply up to 250m with stable and reliable transmission, allowing IPC, NVR, computer and other equipment.
4KV Surge Protection
High-quality capacitors, inductors and other electronic components, integrated professional surge protection circuit, stable and reliable in thunderstorms, effectively reducing surge damage, can be used in a variety of harsh weather and environment.

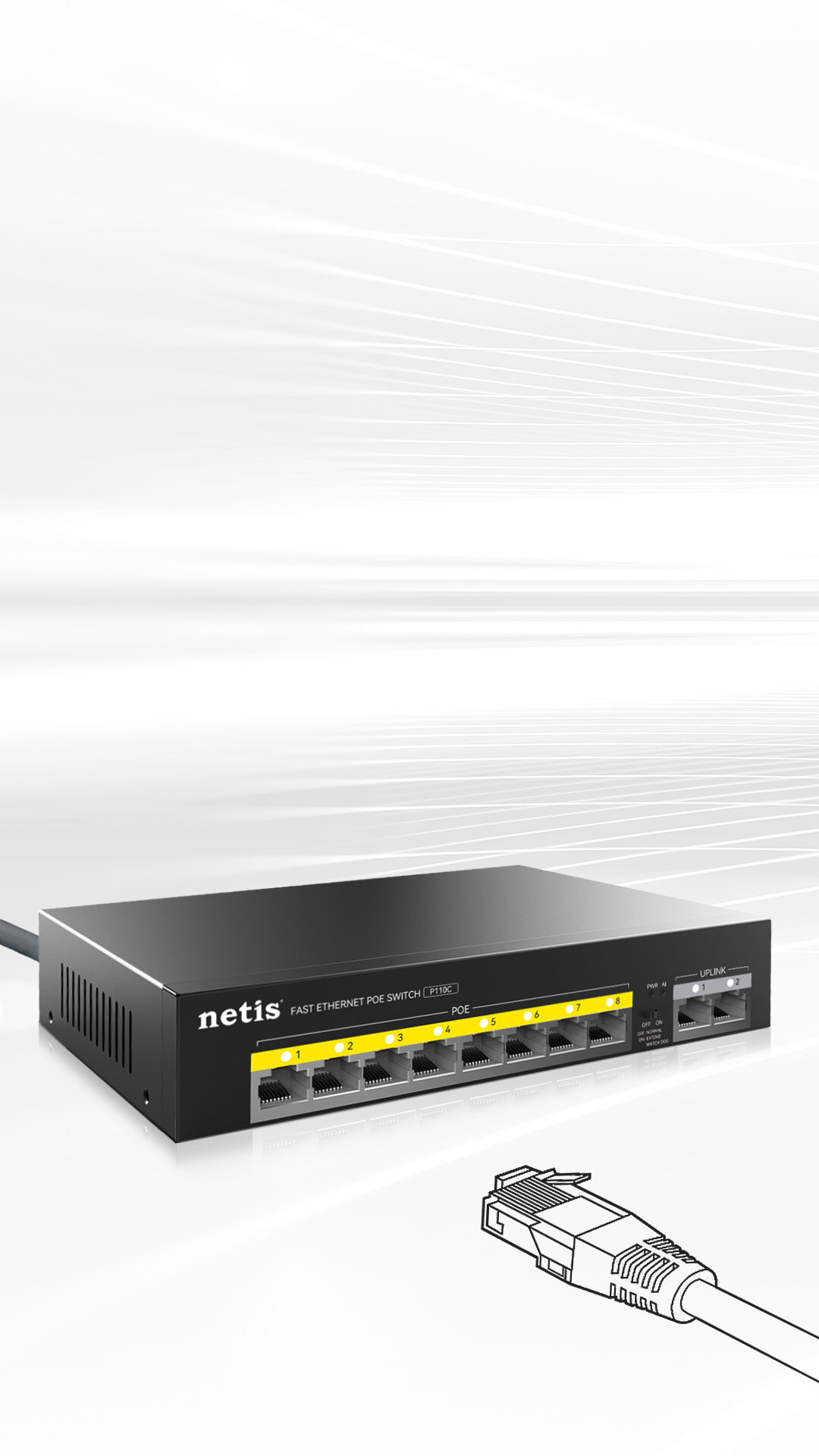

Support Four-core Network Cable
Lower Cost in Networking
It supports four-core network cable networking, only needs four-core network cable to meet the power supply and data transmission demand, greatly saving the wire cost in security monitoring and wireless coverage construction, and making the overall networking cost lower.

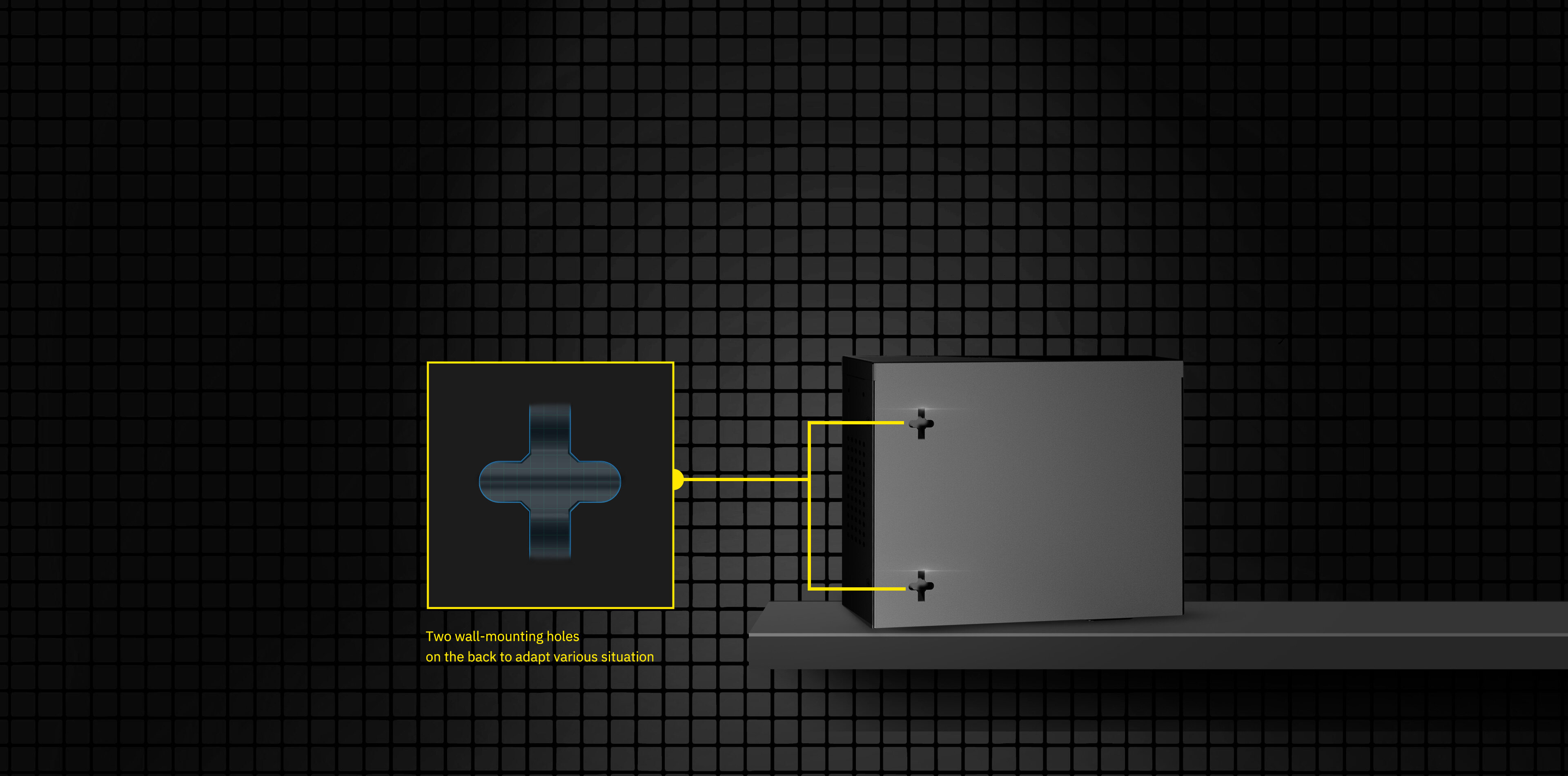

Hanging Design, More Flexible Deployment
The hanging design on the back of the machine allows the device to be hung on the wall or in the weak electric box, proper placement and flexible choice of location.

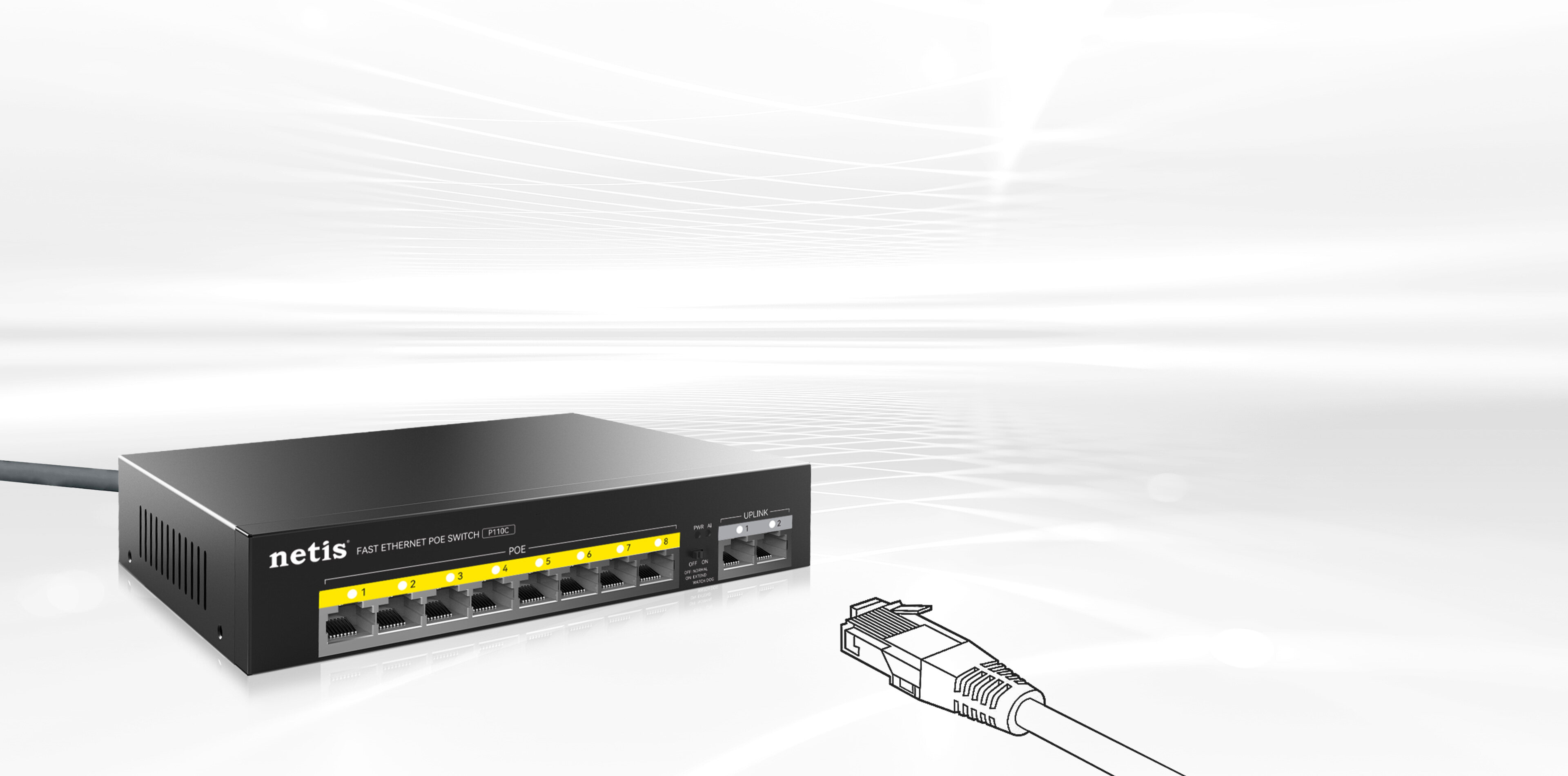

Plug And Play
No Configuration Required
It adopts store-and-forward switching mechanism, and automatically supply power to adaptive devices without additional configuration. Plug and play, faster and more convenient.
Specification
Hardware
|
Interface |
8 10/100M POE ports (Data /Power) 2 10/100M RJ45 ports (Data) |
|
LED |
PWR: Lighting - The device is powered on normally AI: Lighting - The intelligent mode is enabled Port: Lighting - Port link is normal Blinking - Data in transit |
|
MAC Address Table Size |
2K |
|
Jumbo Frame |
2048 byte |
|
Store & Forwarding |
Yes |
|
Mode |
Normal Mode Extend+Watch Dog Mode |
|
Cabling type
|
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
|
Power Input POE Standards |
Single port maximum power 30W Whole switch maximum power 120W Supporting over-current, over-voltage and short-circuit protection Supporting Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60Hz |
Software
|
Data Transfer Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) |
|
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
|
Standards
|
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Switching Capacity |
2G |
Others
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Dimensions |
190*140*43mm(L * W * H ) |
