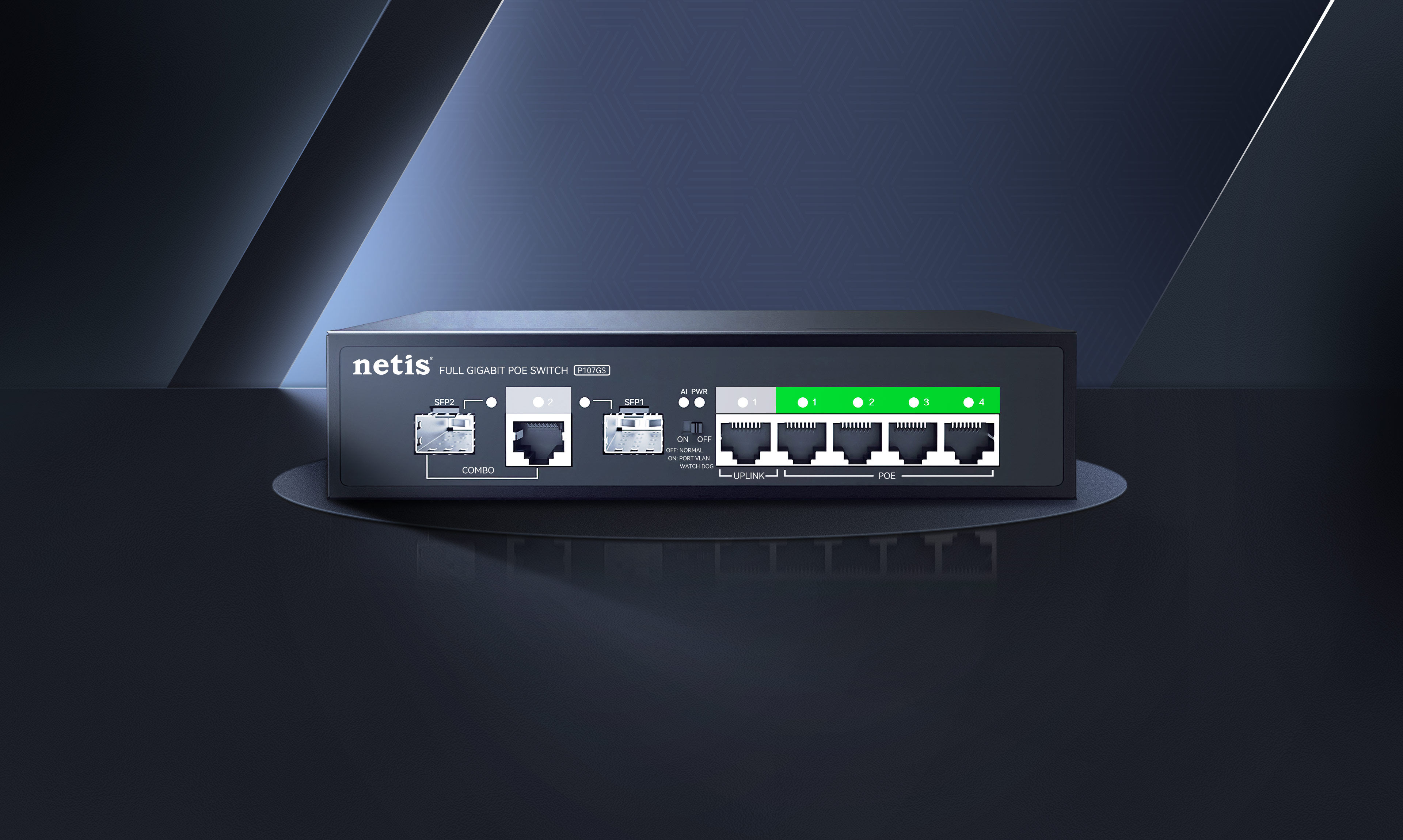

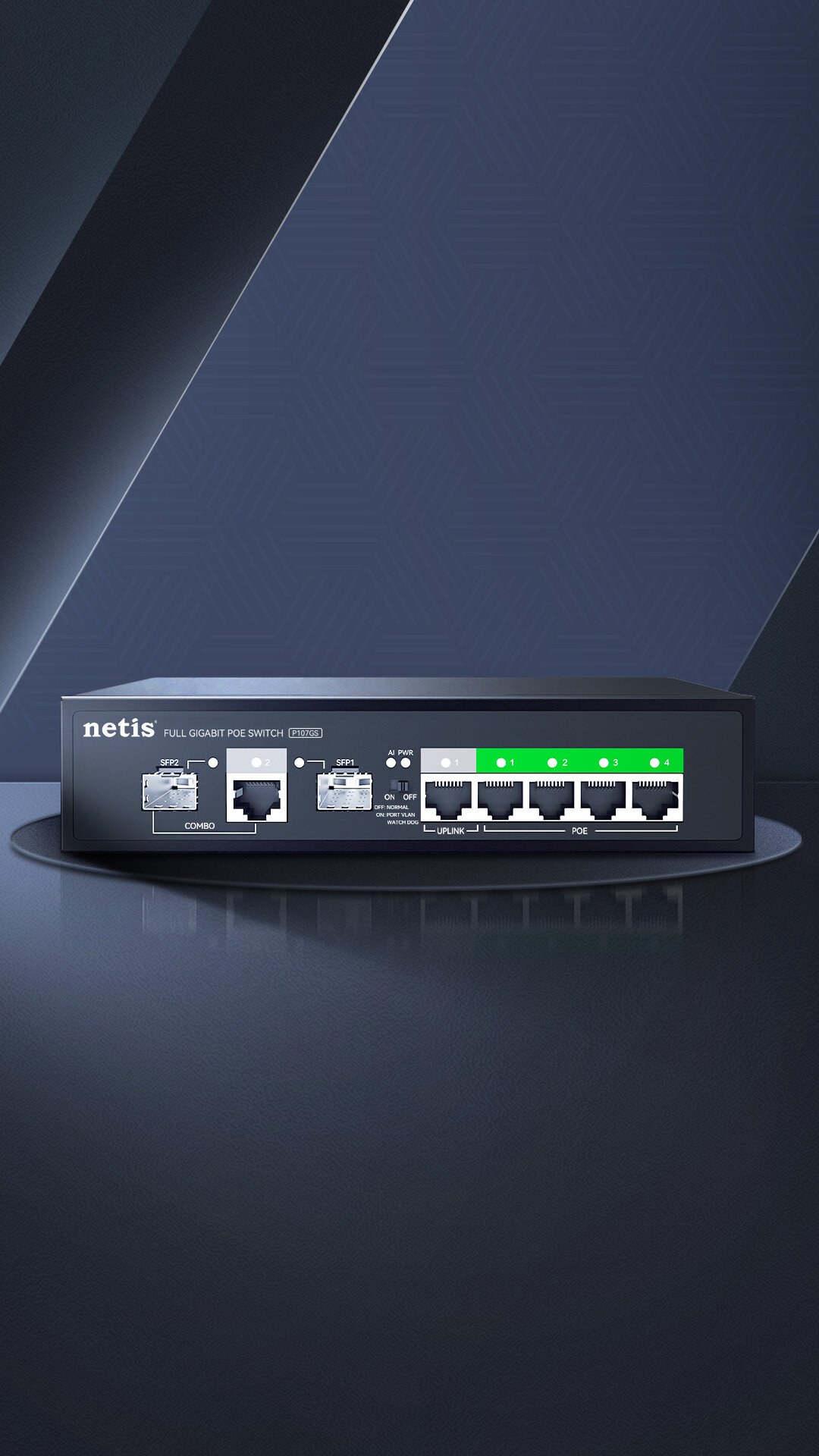

P107GS
4GE POE+1GE Uplink+1SFP+(1GE+1SFP)COMBO POE Switch
- Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
- POE IEEE 802.3af/at compliant Powered Device (PD)
- Supporting Normal Mode/Port VLAN + Watch Dog Mode
- 4 10/100/1000M adaptive RJ45 ports,2 1000M adaptive RJ45 UPLink ports,2 SFP Gigabit ports,including SFP2 and LAN2 (gigabit RJ45 +SFP) as the photoelectric multiplexing interfaces
- Auto MDI/MDIX crossover for all ports
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- All ports have wire-speed forwarding capability
- MAC address auto-learning & auto-aging
- Power supply: built-in 65W
Dual SFP With Serial Link POE Switch
4POE+1RJ45+1SFP+SFP/RJ45 combo
P107GS
SFP/RJ45 Combo
Full Gigabit
Port VLAN
POE watch dog
65W Power Supply Unit
4KV Surge Protection

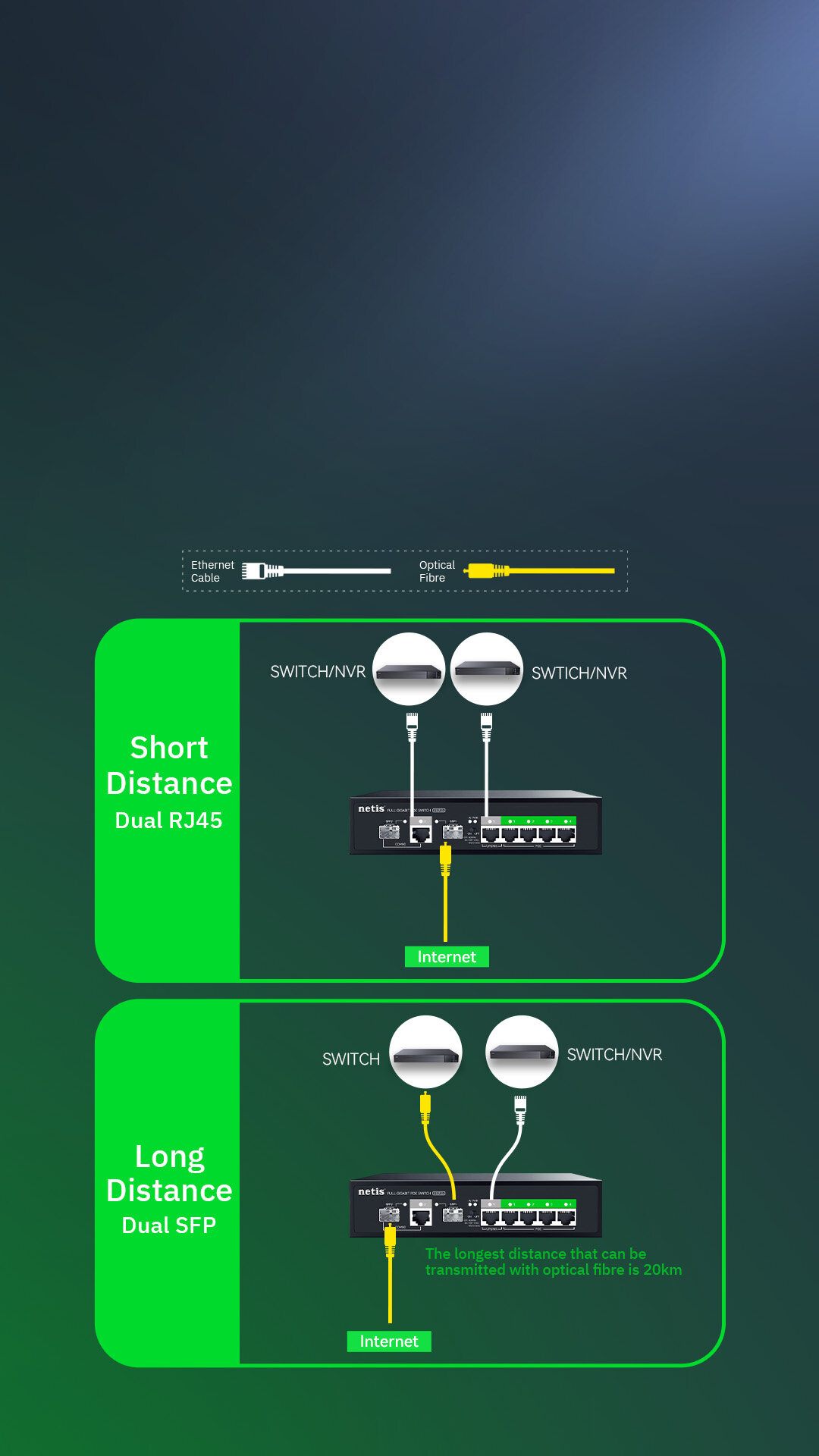

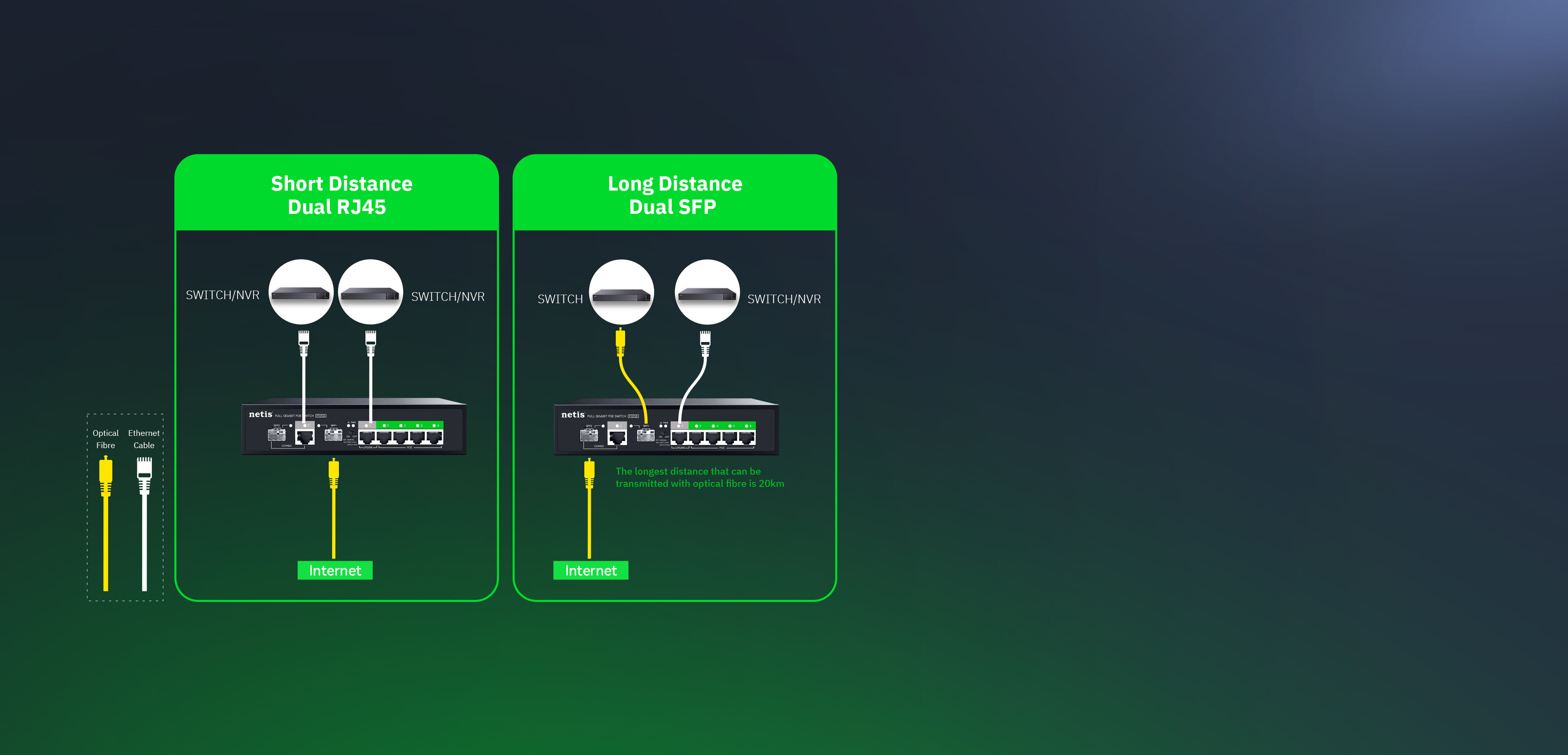

RJ45/SFP Combo
Supports dual SFP/RJ45 for multiple scenarios
RJ45 for short distance/ SFP for long distance.

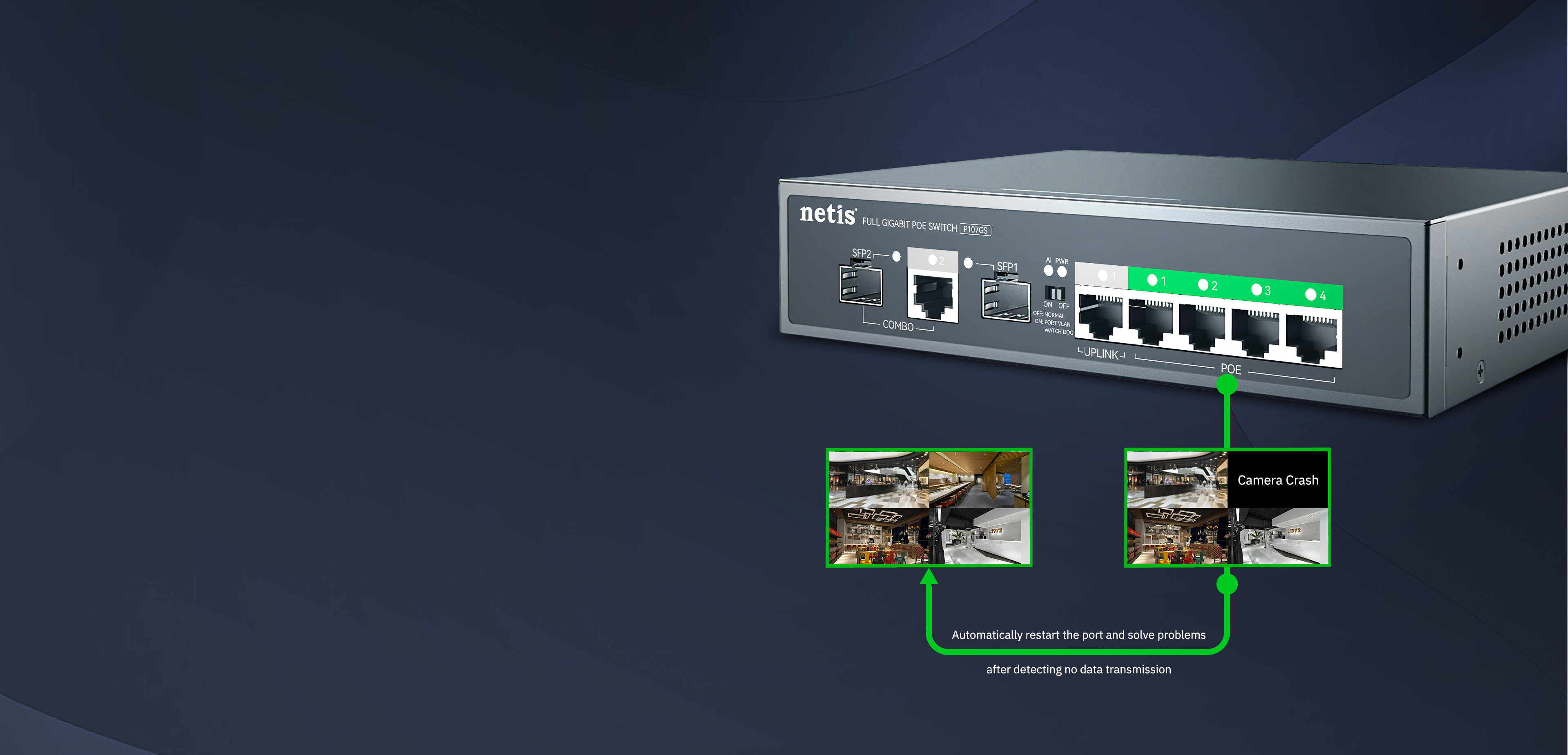

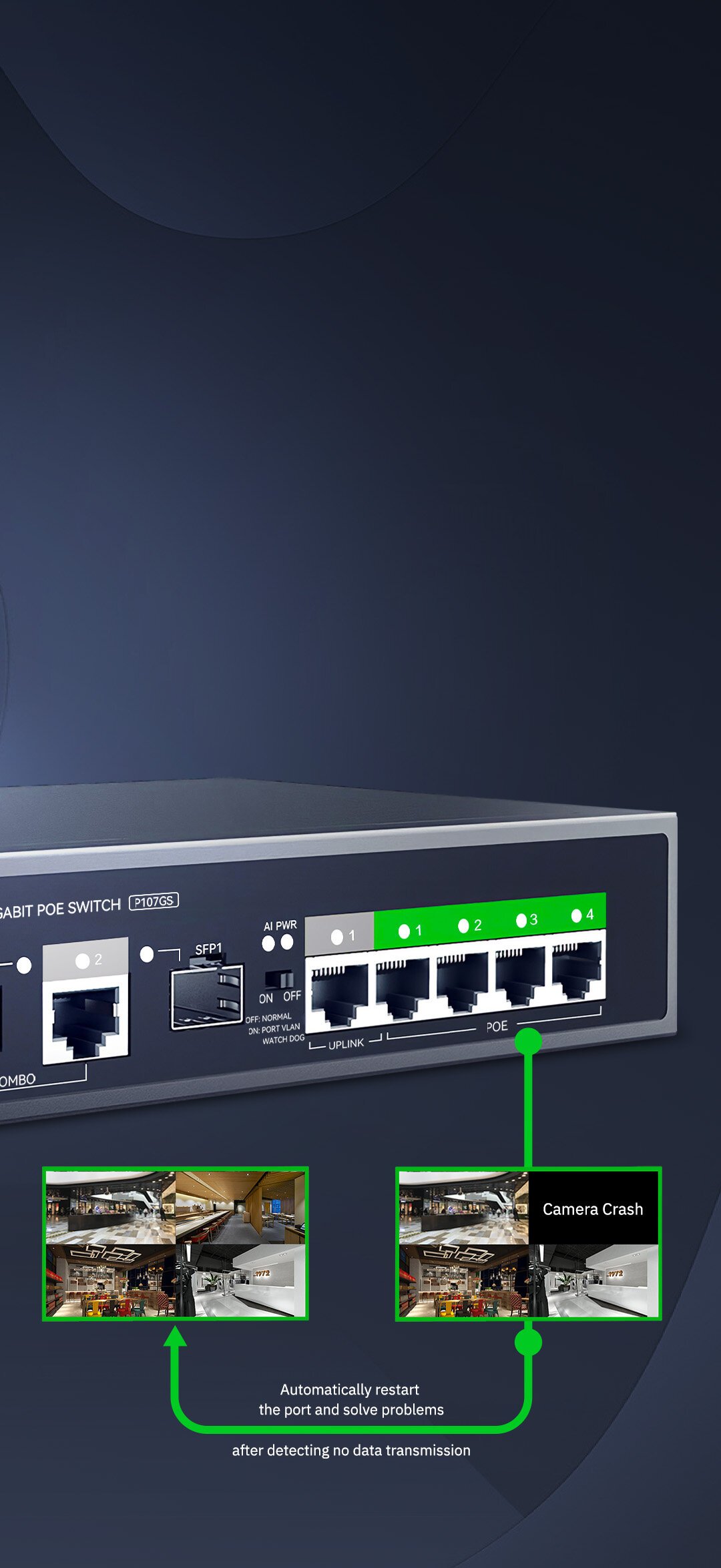

POE Watch Dog
Intelligent detection and troubleshooting
Automatic restart the problem port
Solve most of the problems effectively,
such as camera crash and frozen screen.
such as camera crash and frozen screen.
Low-voltage power supply after restart
Thoughtful protection to the camera
Intelligent detection and troubleshooting
Reduce on-site maintenance costs, save your time and energy
24-hour watch
A faithful guardian of the cameras

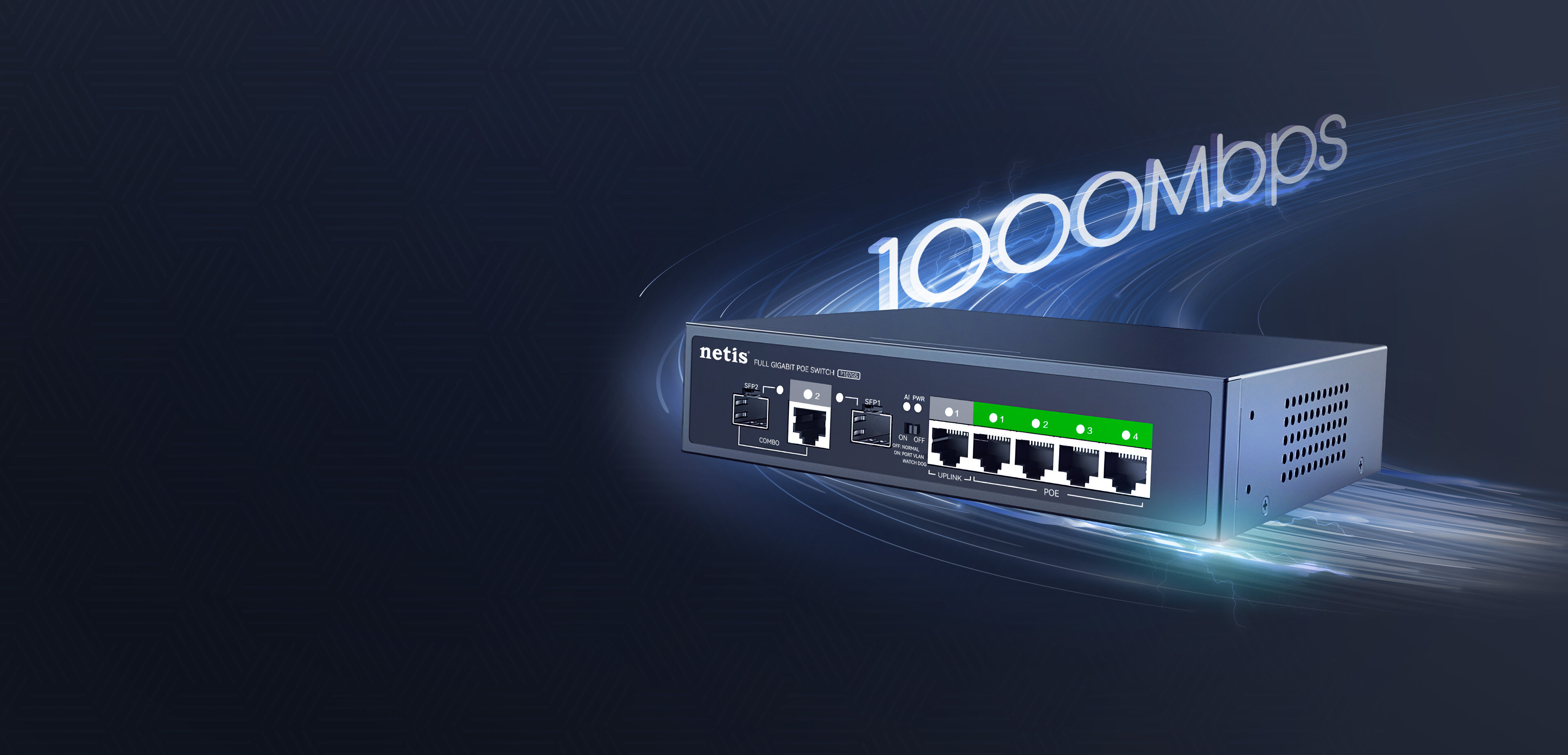

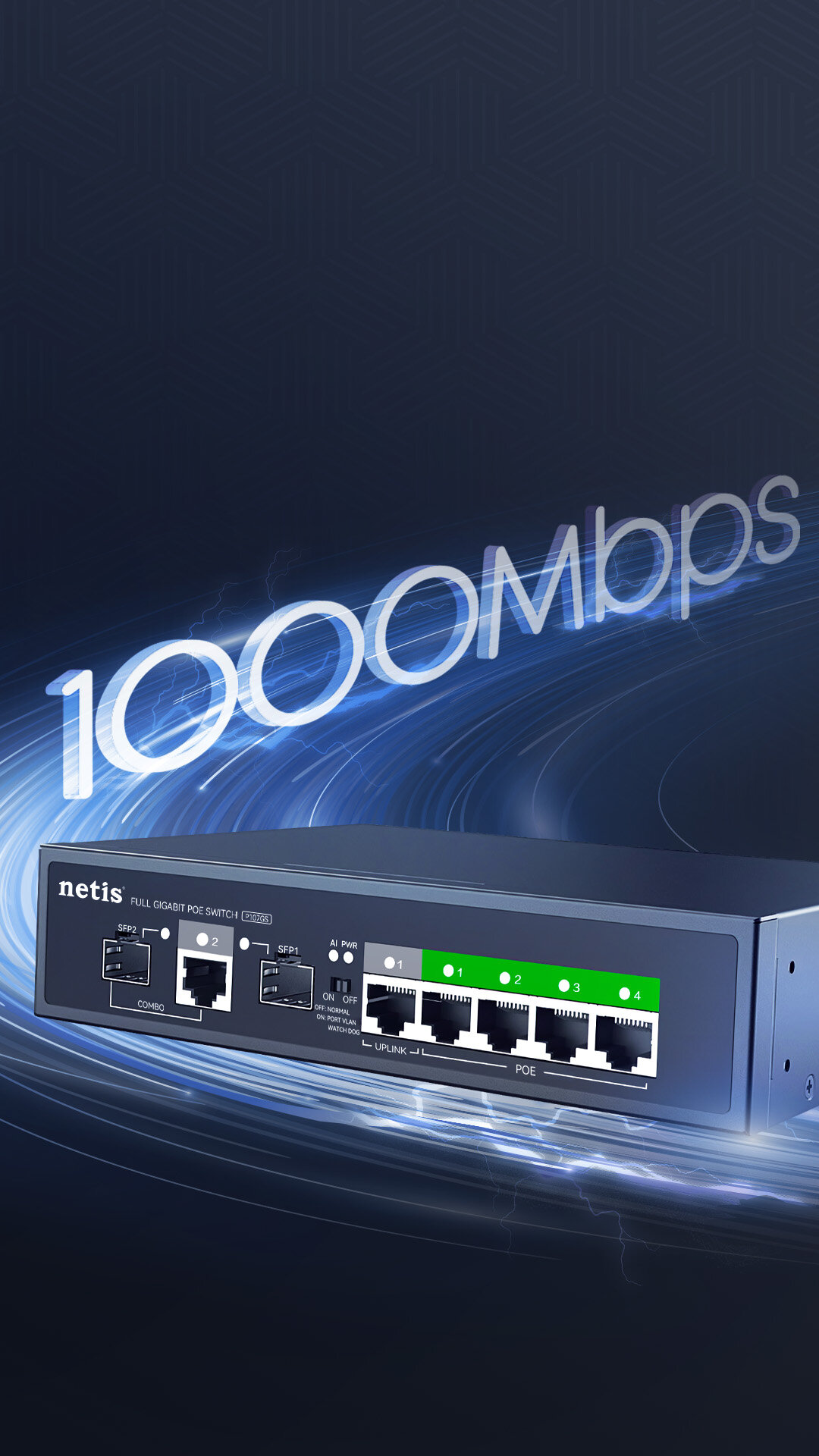

Full Gigabit Ports
Support high speed transmission
Full gigabit ports, fully utilized broadband,
to meet different scenarios.

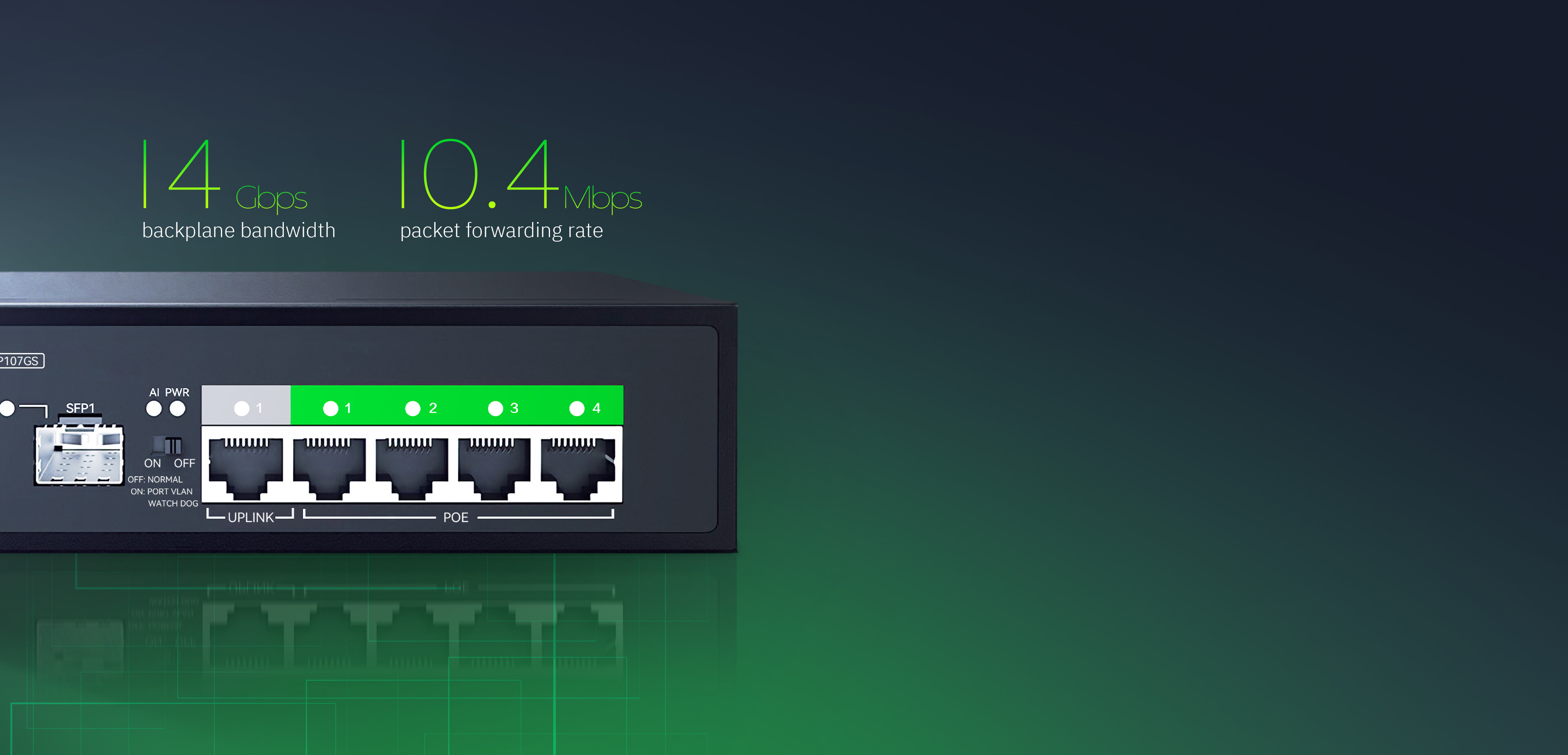

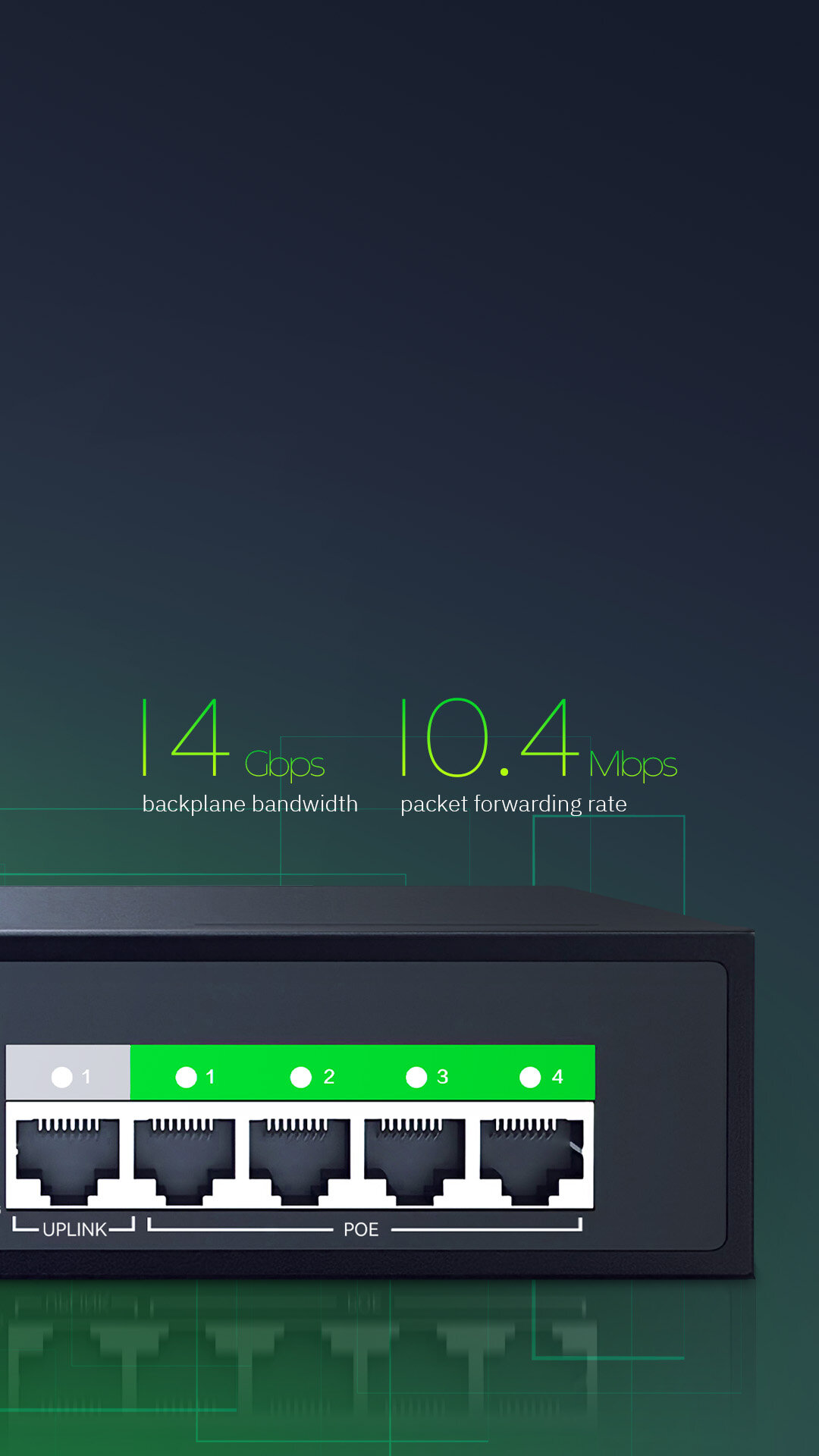

Large Backplane Bandwidth And High Packet Forwarding Rate
Data processing in high efficiency
14Gbps backplane bandwidth & 10.4Mbps packet forwarding rate. Greatly improve the efficiency of data processing, speed up the data transmission.

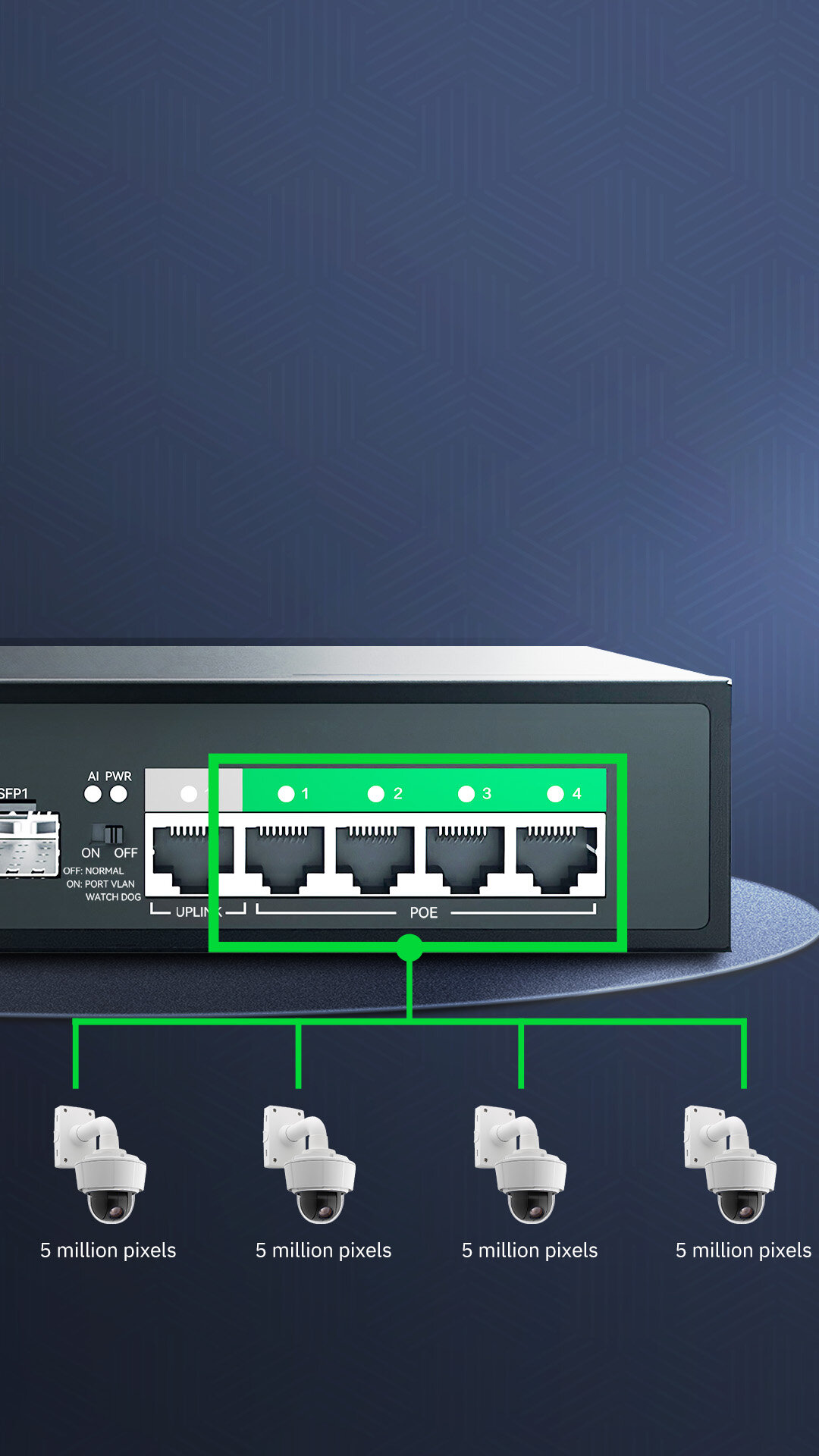

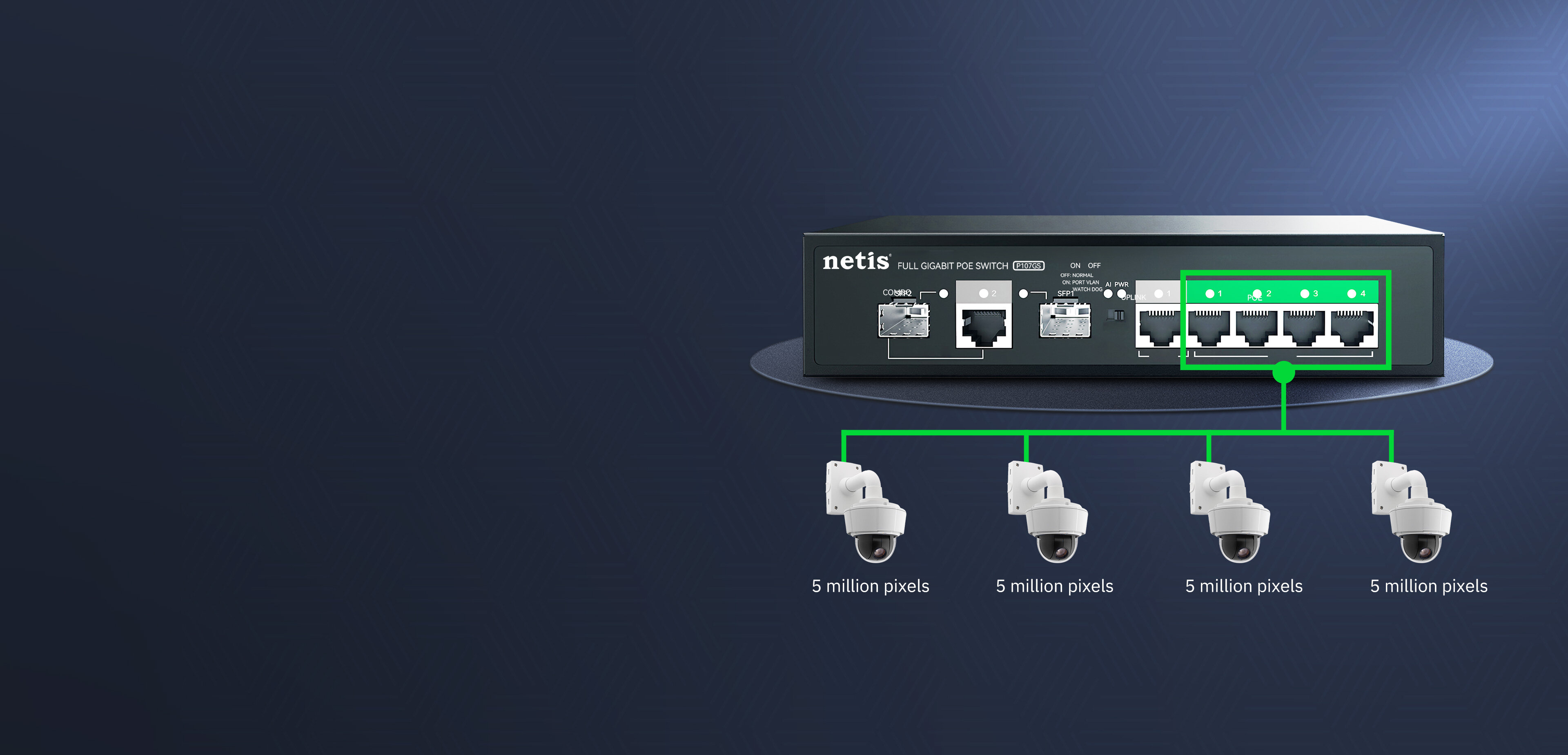

65W Power Supply Unit
Up to 30W For Each Port
Up to 30W For Each Port
Standard POE supply
65W budget support IEEE802.3af/at power supply, Up to 30W for each port, stable operation in full load with full gigabit AP & 5MP camera.

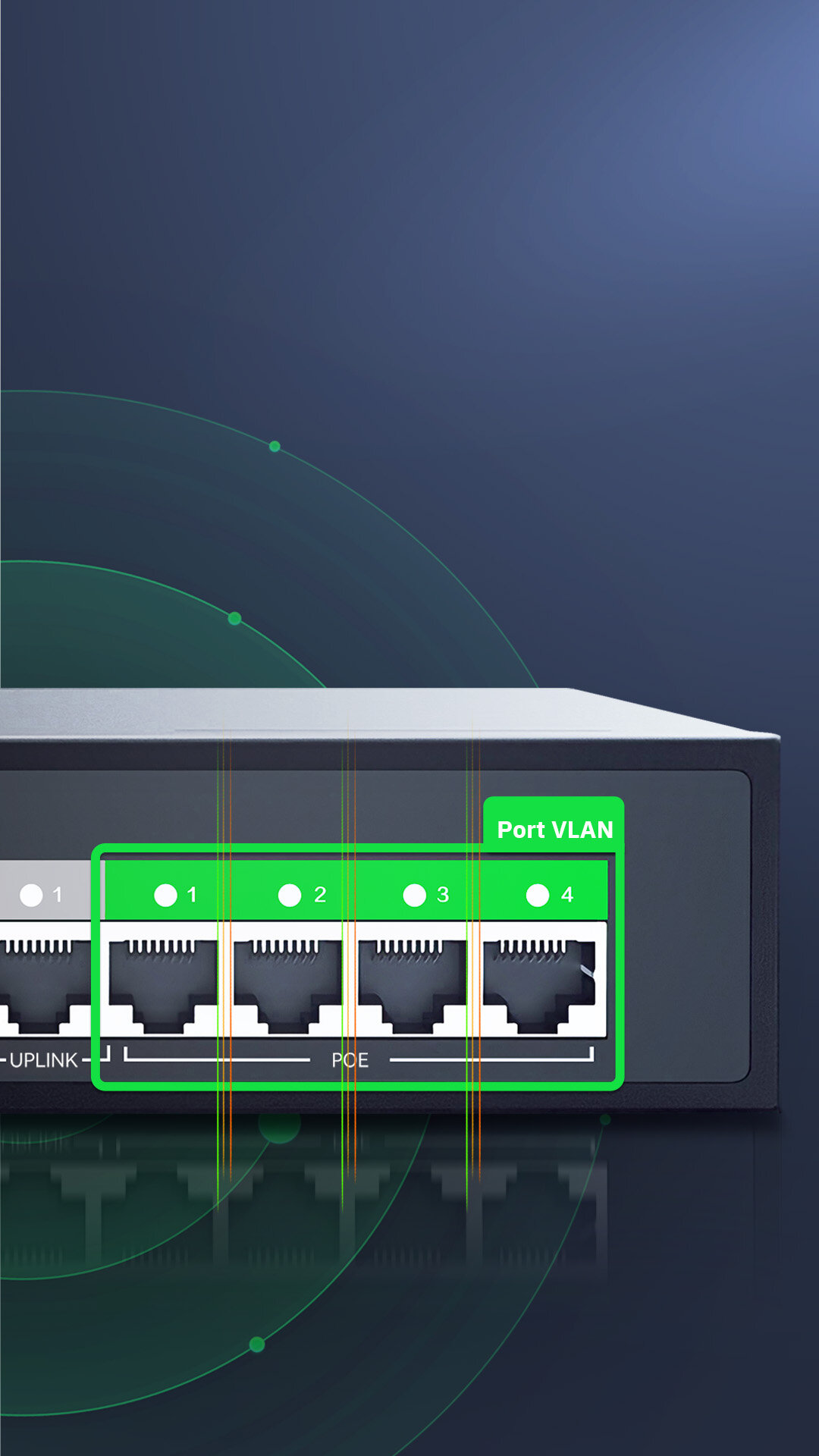

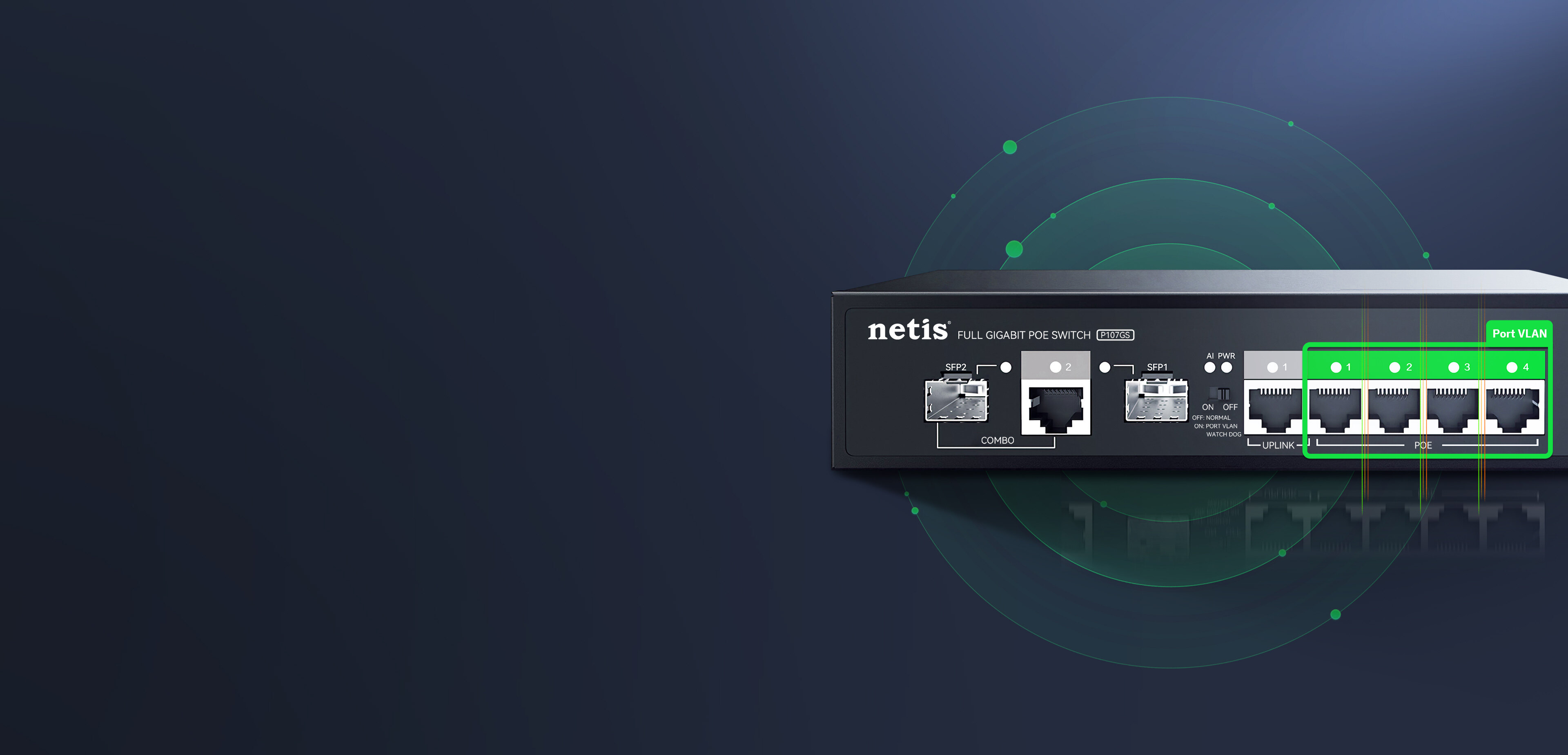

Port VLAN
Protect Internet Privacy
A button to start All POE port VLAN, no more data transmission interference. No connection among each port, protect the privacy of connected devices

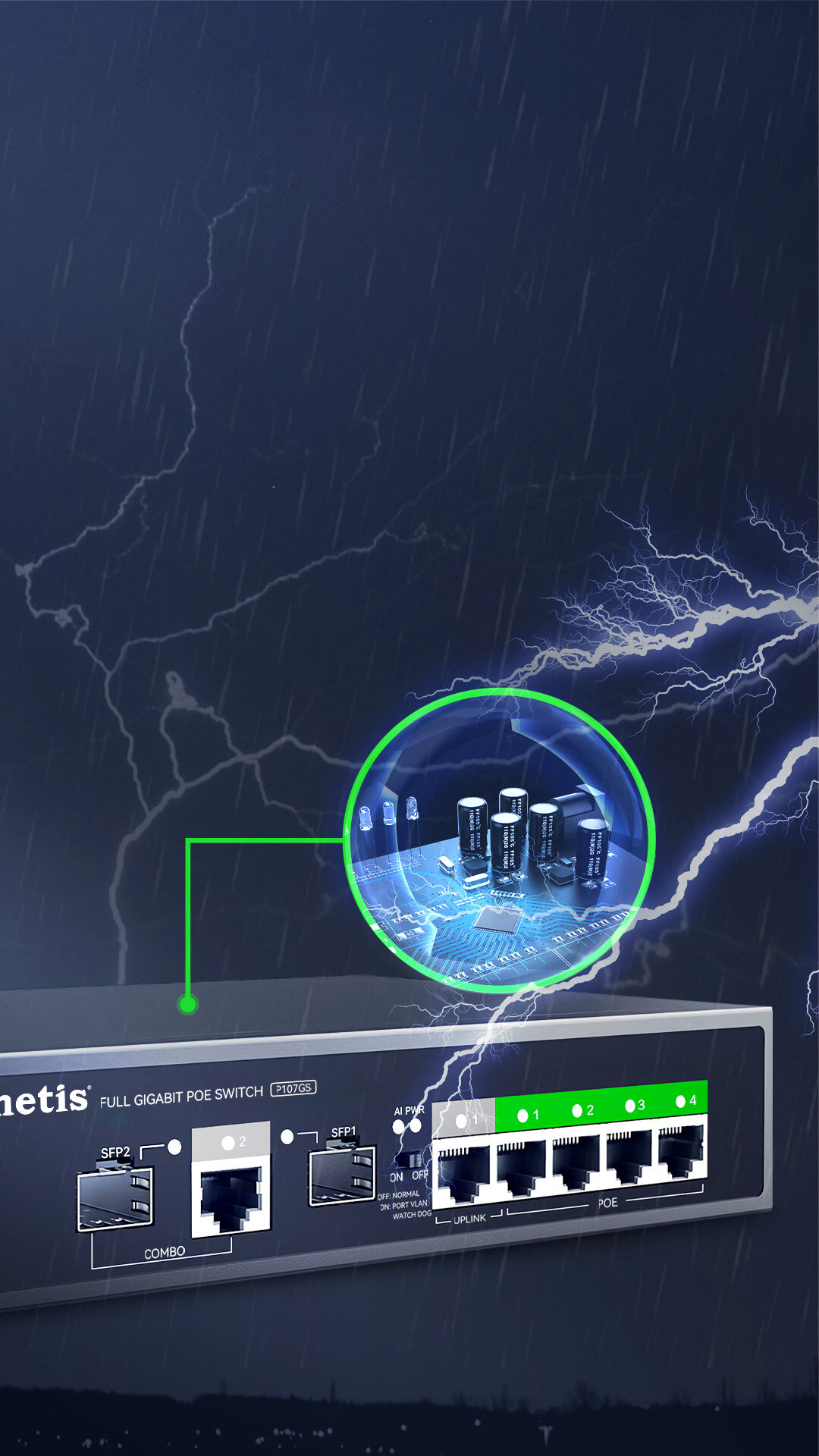

4KV Surge Protection
High-quality capacitors, inductors and other electronic components, integrated professional surge protection circuit, stable and reliable in thunderstorms, effectively reducing surge damage, can be used in a variety of harsh weather and environment.

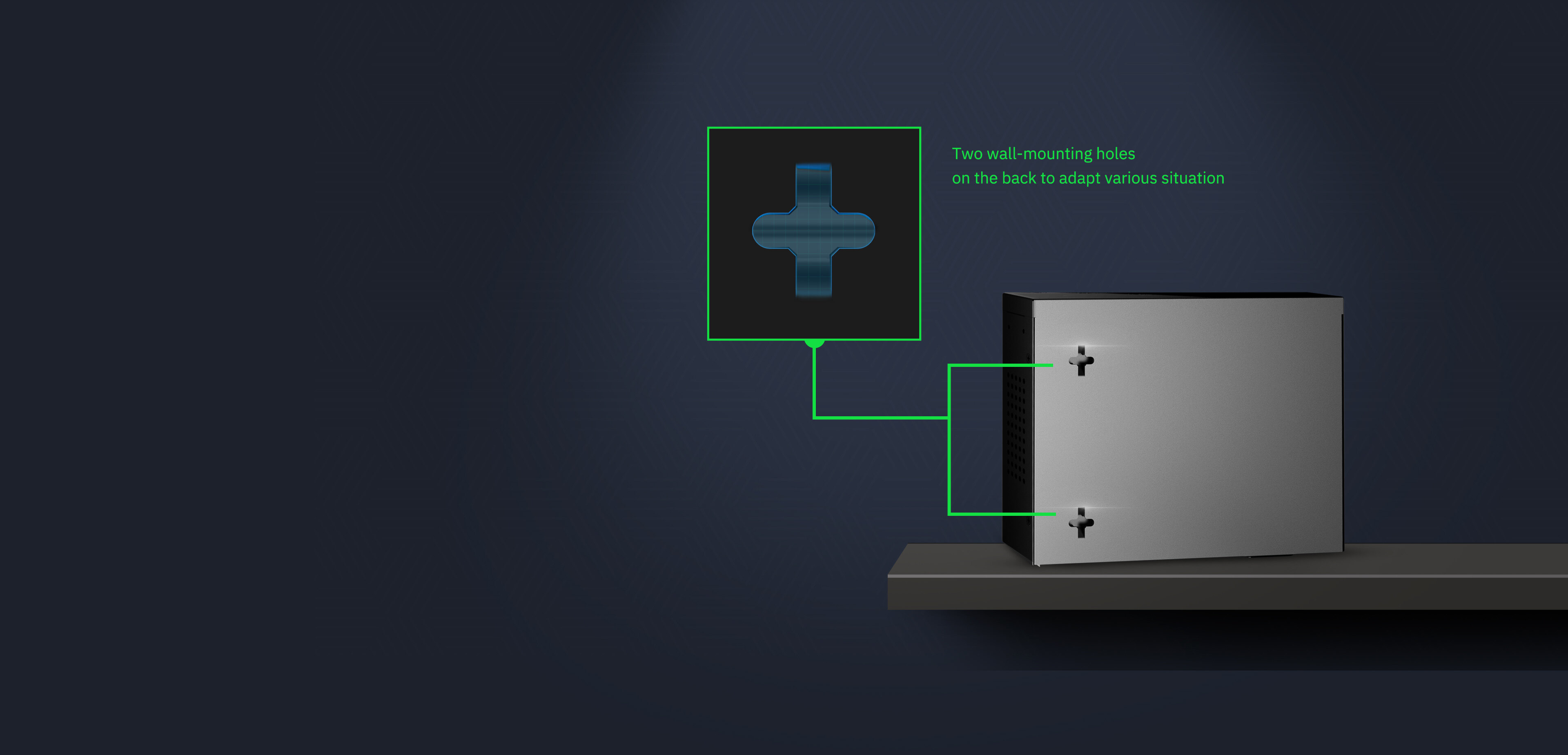

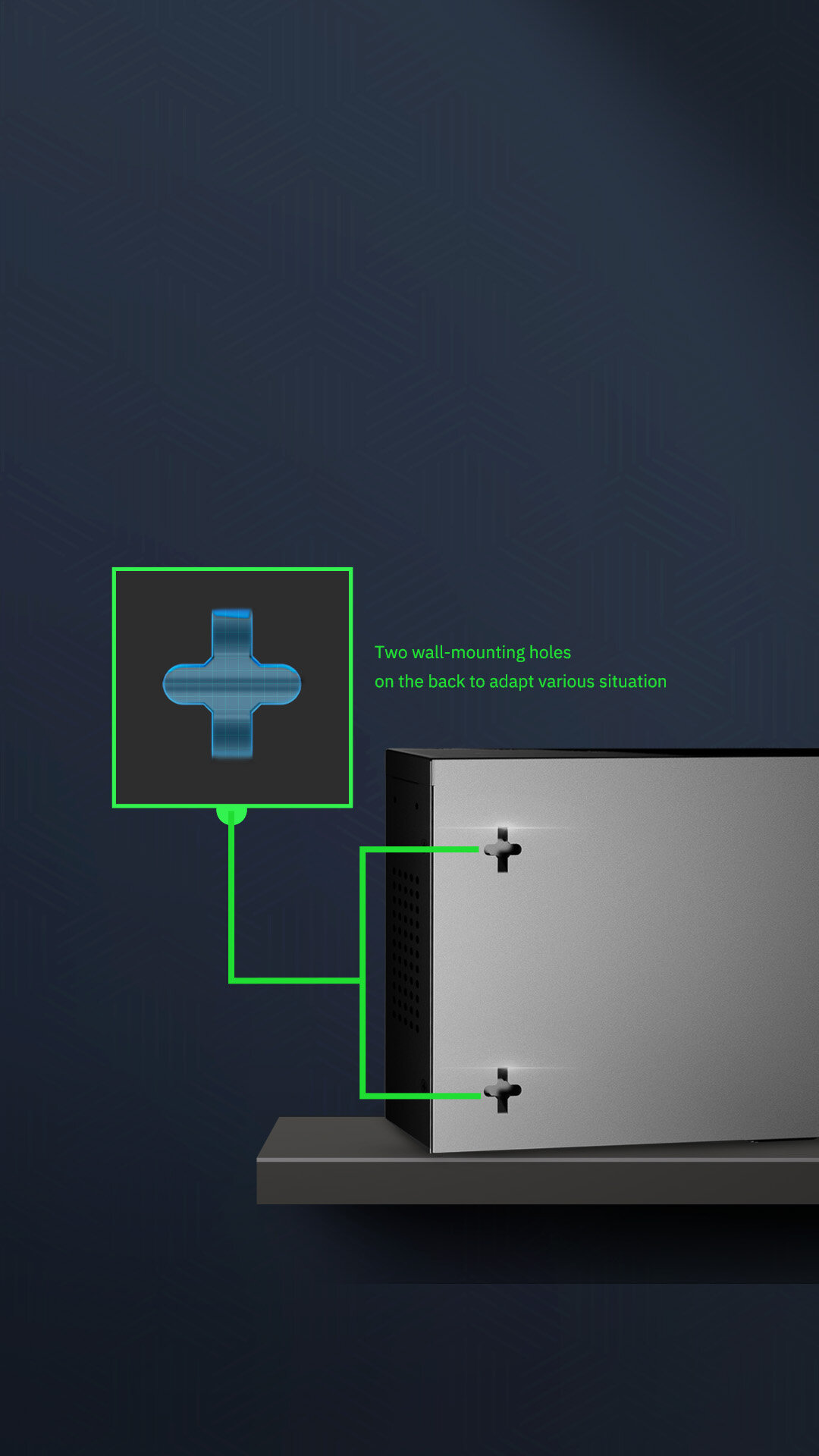

Wall-mounted Design
More Flexible Deployment
The hanging design on the back of the machine allows the device to be hung on the wall or in the weak electric box, proper placement and flexible choice of location.

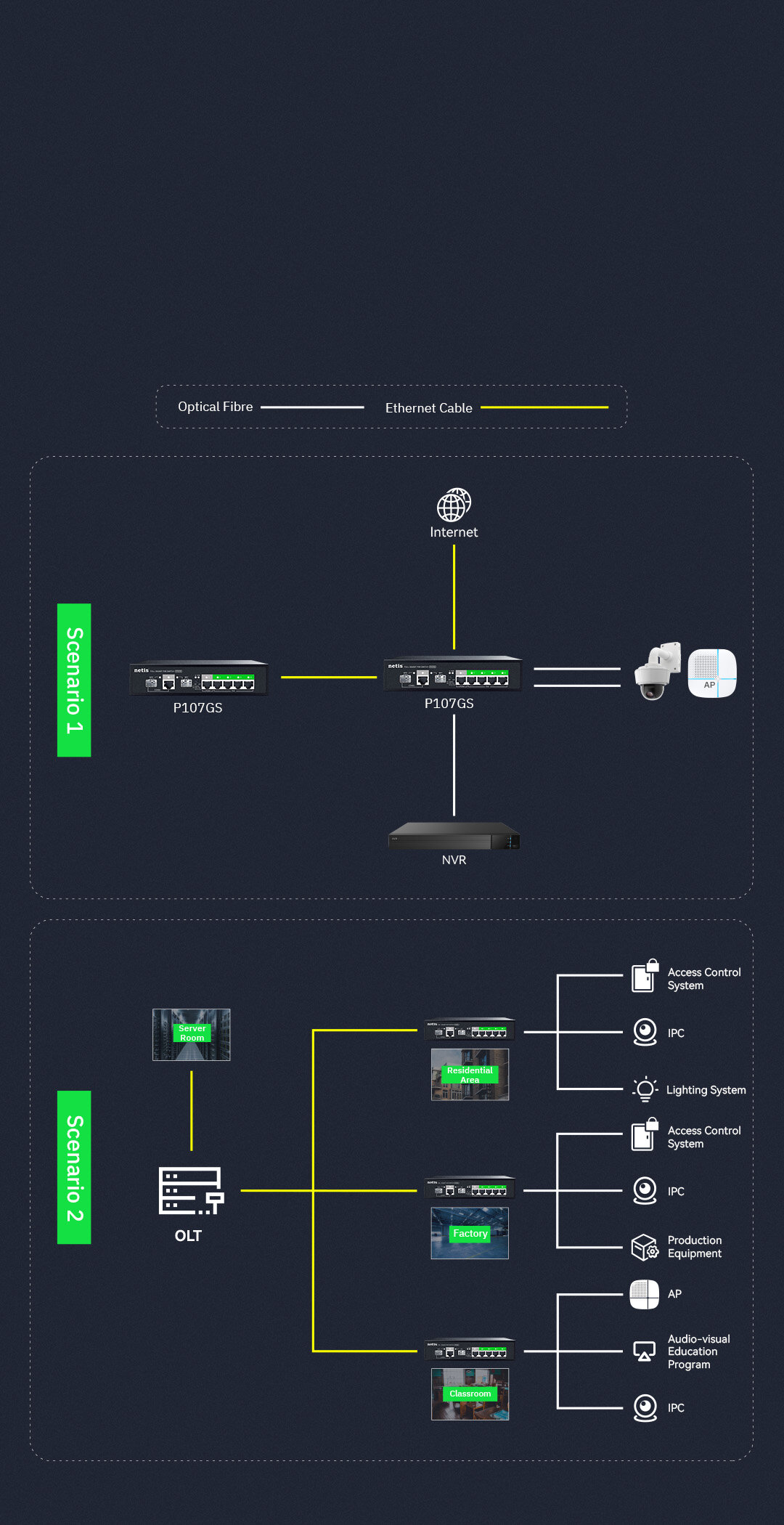

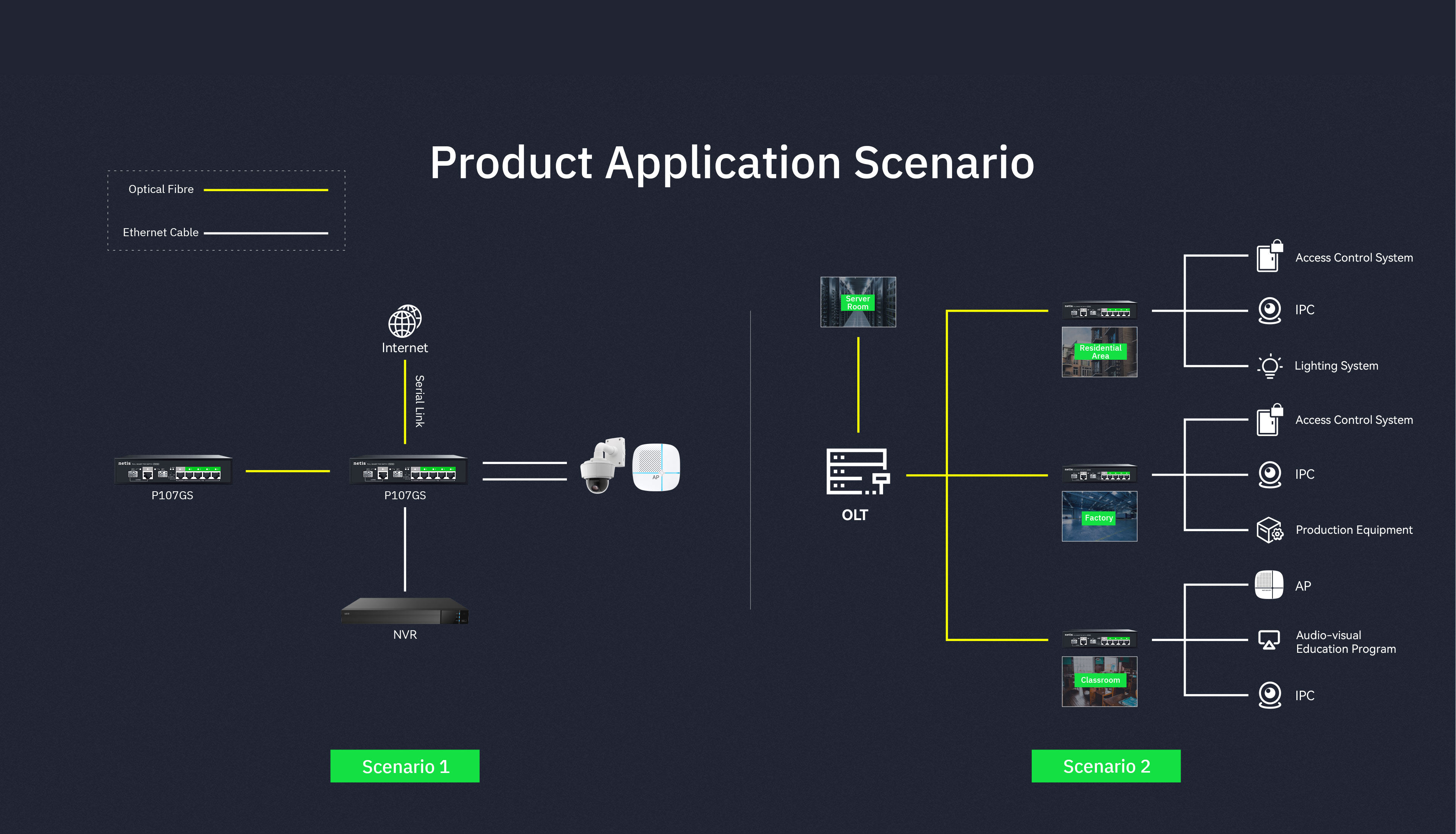

Product Application Scenario
Specification
Hardware
|
Interface |
4 10/100/1000Mbps POE RJ45 Ports(Data/Power) 1 10/100/1000Mbps RJ45 Port(Data) 1 Combo 100/1000Mbps SFP Slot(Data) |
|
LED |
PWR: Lighting - The device is powered on normally AI: Lighting - The intelligent mode is enabled Port: Lighting - Port link is normal Blinking - Data in transit |
|
Backplane bandwidth |
16G |
|
MAC Address Table Size |
2K |
|
Cabling type |
1000Base-T: 4 pairs of Cat5e or above UTP/STP(≤100m) 100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m) 10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m) |
|
Power supply |
AC input 100-240V, standard 65W power supply |
Software
|
Basic function |
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Compatible with certified non-standard electrified equipment (PD) Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
|
Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Mode |
Normal Mode Port VLAN + Watch Dog Mode |
|
Data Transfer Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
Others
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Dimensions |
190*140*43mm(L * W * H ) |
