P116GH
16 FE POE+2GE Uplink POE Switch
- Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
- POE IEEE 802.3af/at compliant Powered Device (PD)
- Supports two modes: Normal Mode/Extend+Watch Dog Mode
- Ports 1~16 features POE power supply capability and can be used as power over Ethernet devices；2*10/100/1000Base-T Uplink and 1*1000Base-X SFP
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- Auto MDI/MDIX crossover for all ports
- Non-blocking wire speed forwarding
- MAC address auto-learning & auto-aging
- Steel case, the total POE power budget of 240W
- Just Plug and Play
Fast Ethernet Standard POE Switch
16FE POE+2GE UPLINK
P116GH
AI Watch Dog
Extend to 250m
Steel Housing
240W Budget
Plug and Play
240W Budget
Standard POE power supply
The device power is 240W, power of each port is up to 30W. It supports IEEE802.3af/at power supply, automatically identify if powered devices support POE or not. The powered devices do not need external power supply. The network cable can transmit power and data at the same time. More flexibility in deployment.
AI Watch Dog
Intelligent Detection And Troubleshooting
Automatic restart the problem port
Solve most of the problems effectively, such as camera crash and frozen screen.
Low-voltage power supply after restart
Great protection to the camera
Intelligent troubleshooting detection
Reduce on-site maintenance costs, save your time and energy
24-hour watch
A faithful guardian of the monitors
Network Cable Extended to 250M
Stable Transmission
With a ON/OFF switch on the switch for AI function, support watch dog and extend functions, extend the power supply up to 250m with stable and reliable transmission, allowing IPC, NVR, computer and other equipment.
4KV Surge Protection
High-quality capacitors, inductors and other electronic components, integrated professional surge protection circuit, stable and reliable in thunderstorms, effectively reducing surge damage, can be used in a variety of harsh weather and environment.
Support 4-core Network Cable
Lower Cost in Networking
It supports four-core network cable networking, only needs four-core network cable to meet the power supply and data transmission demand, greatly saving the wire cost in security monitoring and wireless coverage construction, and making the overall networking cost lower.

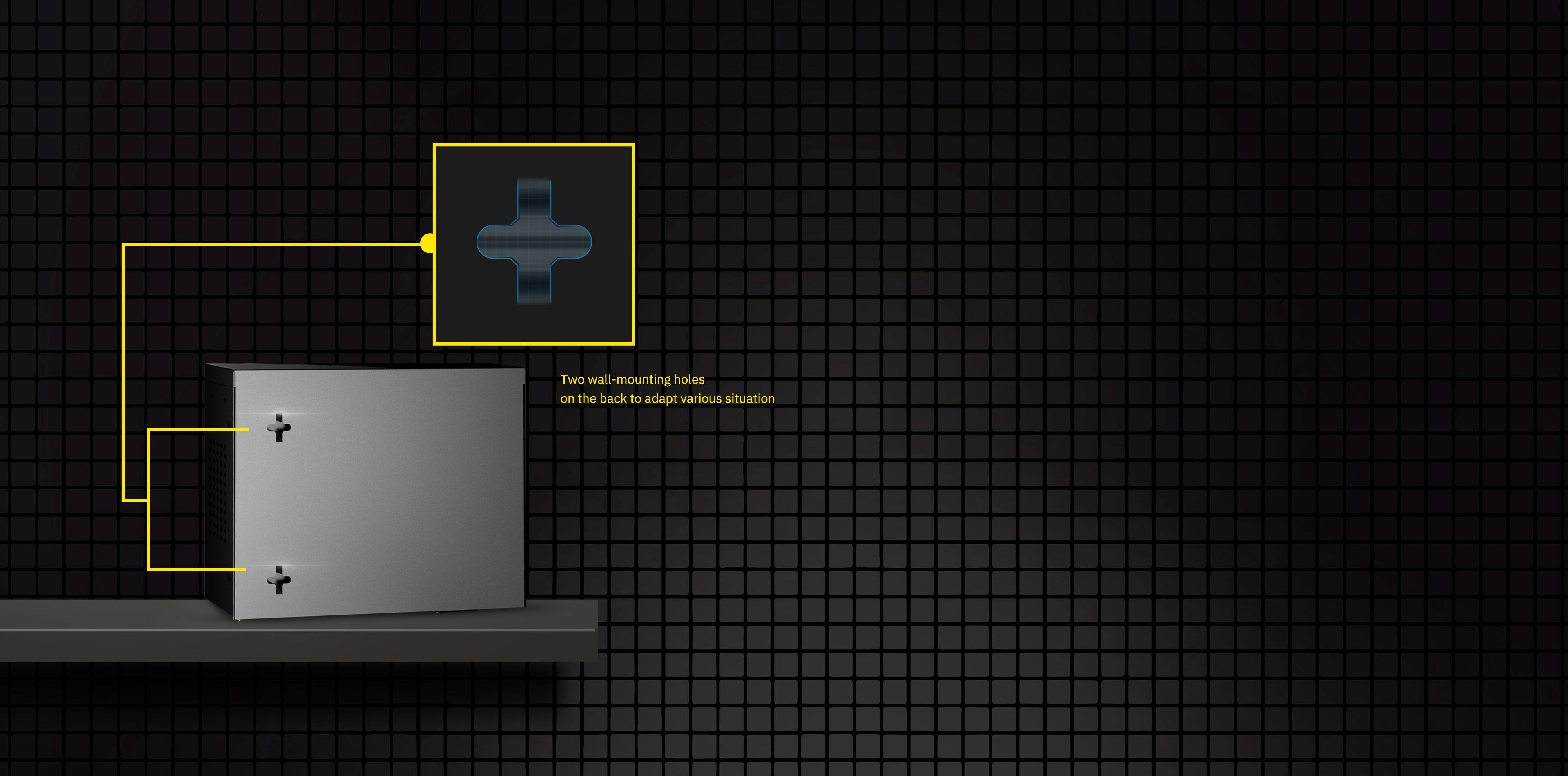

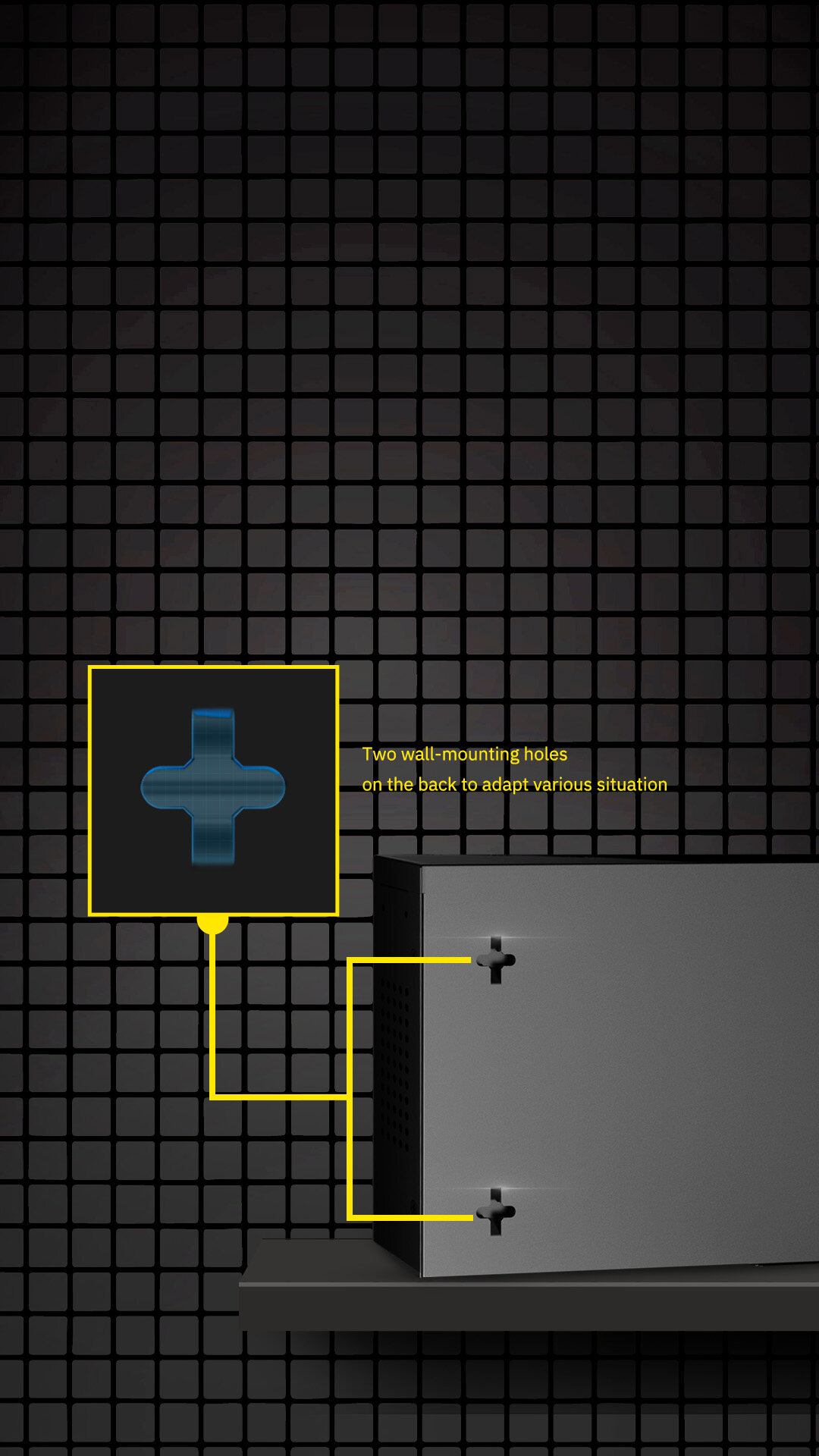

Hanging Design,More Flexible Deployment
The hanging design on the back of the machine allows the device to be hung on the wall or in the weak electric box, proper placement and flexible choice of location.
Plug And Play
No Configuration Required
It adopts store-and-forward switching mechanism, and automatically supply power to adaptive devices without additional configuration. Plug and play, faster and more convenient.
Specification
Hardware
|
Interface |
16 10/100M POE Ports (Data /Power) 2 10/100/1000M RJ45 Ports (Data) 1 SFP Slot(Data) |
|
Store & Forwarding |
Yes |
|
LED |
PWR - Lighting:The product is powered on Function indication - Lighting:The function switch is on and watch dog+ Extend Mode is enabled Port lights - Lighting:Port link is normal,Blinking: Data in transit |
|
Mode |
Normal Mode Extend+Watch Dog Mode |
|
Switching Capacity |
9.2G |
|
MAC Address Table Size |
2K |
|
Jumbo Frame |
2048 byte |
|
Power Input POE Standards |
Single port maximum power 30W, Whole switch maximum power 240W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ |
Software
|
Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Mode |
Normal switch mode Watch dog + Extend mode |
|
Basic function |
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
Others
|
Data Transfer Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Cabling type |
1000BASE-T : Cat5e or better UTP(≤100m) 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
|
Dimensions |
270*180*45mm(L * W* H ) |
