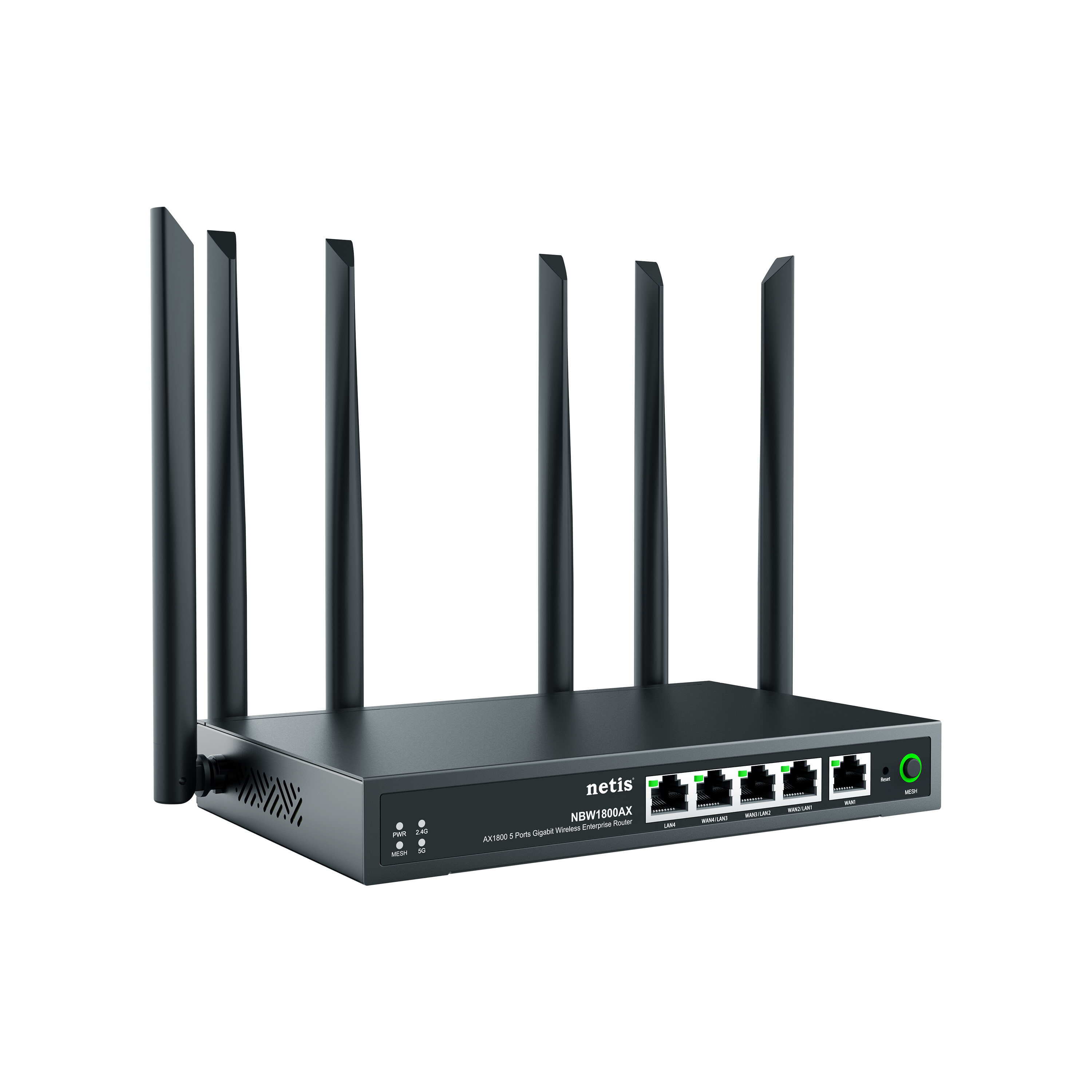

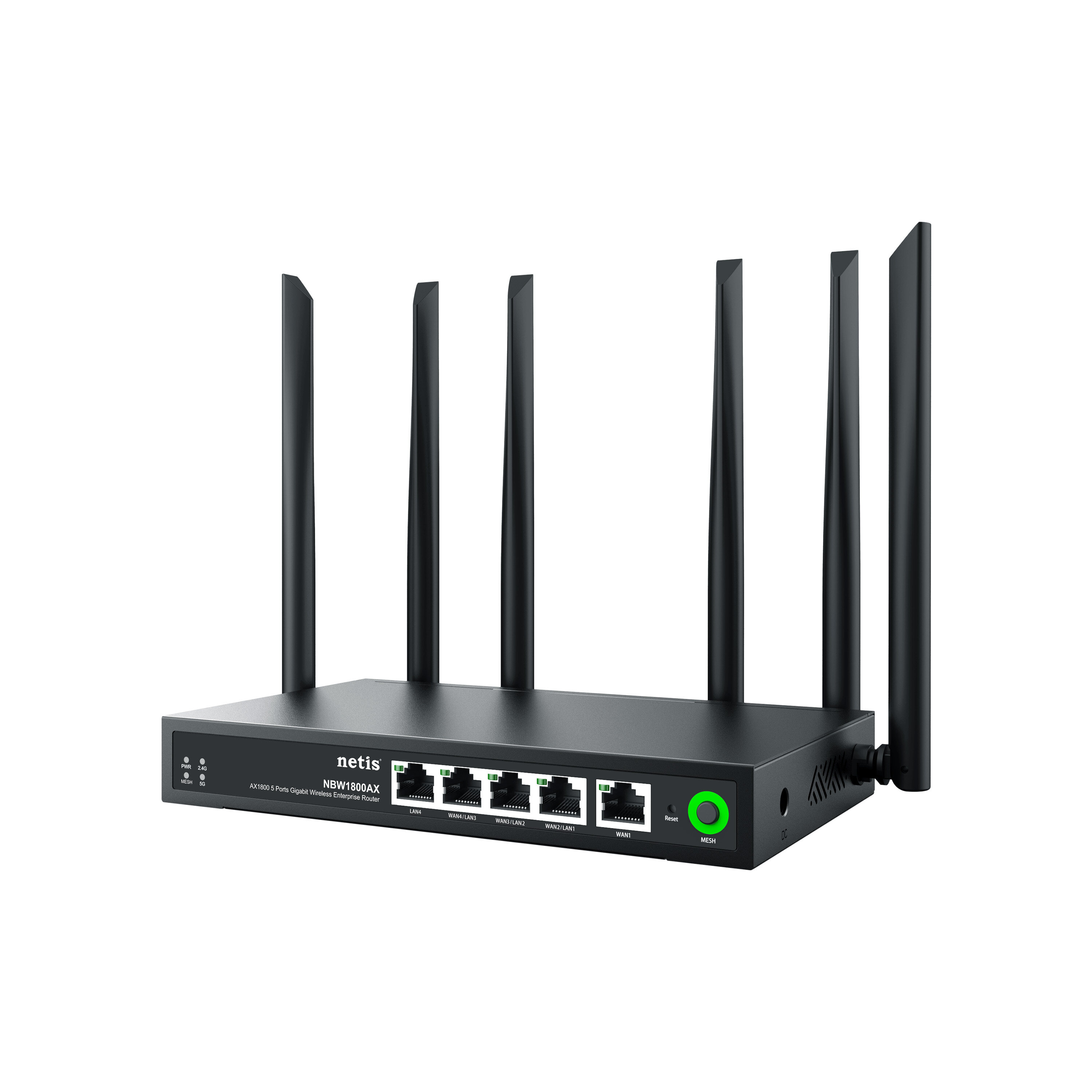

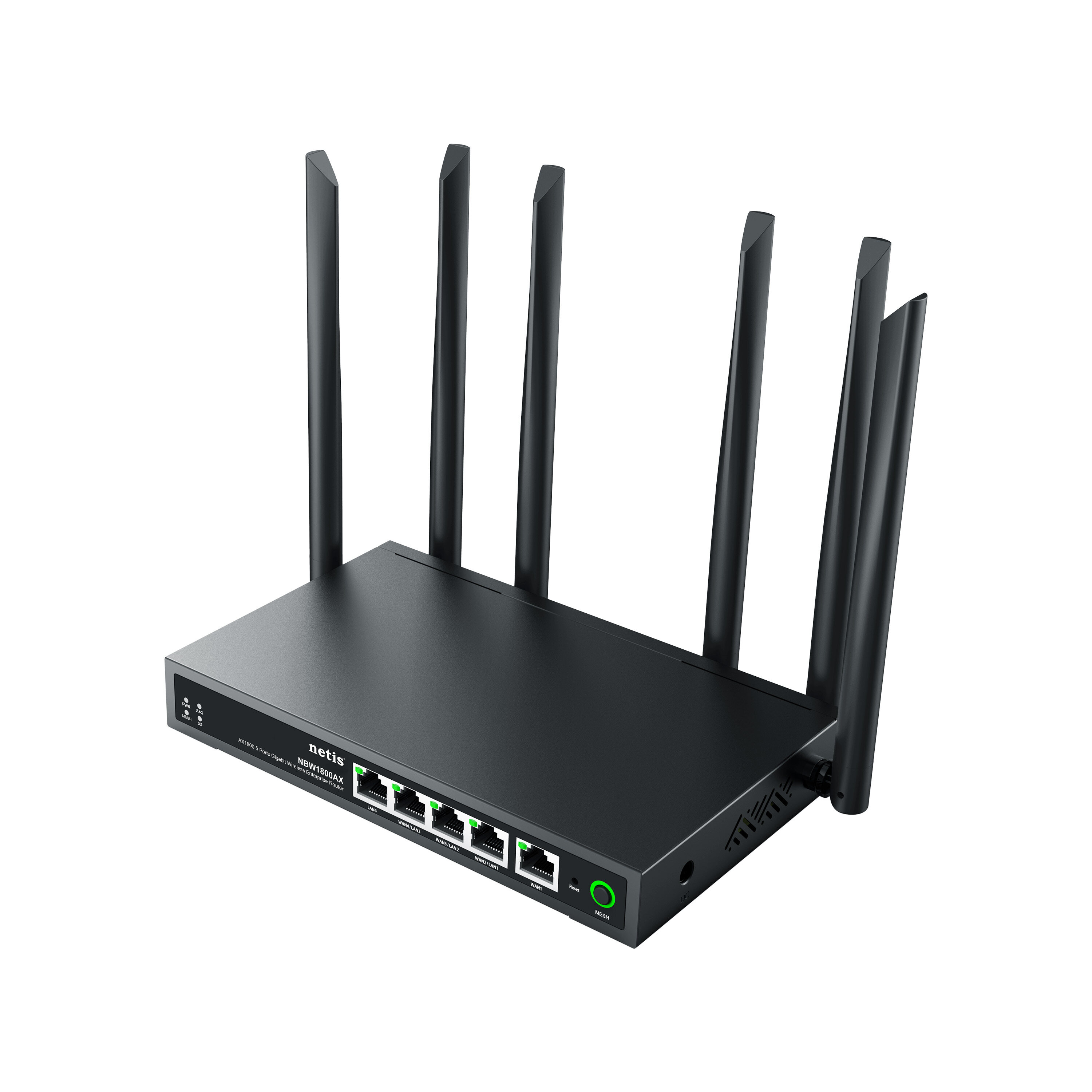

NBW1800AX
AX1800 5-Port Gigabit Wireless WiFi6 Enterprise Router
-
Netis NBW1800AX is an enterprise-class full-gigabit network port router that supports the latest WiFi6 protocol and wireless speed up to 1800Mbps.
-
Enterprise-class dual-core 1.6GHz high-end chip, which brings powerful performance.No configuration required for mesh networking.
- 1 to 4 variable WAN ports, multiple broadband overlay use.
- 6 high-gain omnidirectional antennas stabilize and control 100 devices.
- Suitable for 1000Mbps broadband access full gigabit port.
- MESH networking expands the coverage of wireless signals.
- Easy setup and support App management conveniently.
Specification
Hardware
|
Interface |
LAN : 4 * 10/100/1000M AUTO MDI/MDIX RJ45 port WAN: 1 * 10/100/1000M AUTO MDI/MDIX RJ45 port |
|
Antenna |
4 * 2.4G and 2 * 5G high-gain omnidirectional antennas |
|
Button |
Reset Button, MESH Button |
|
Power Supply |
External DC 12V/1A |
|
LED |
PWR、SYS、2.4G、5G、WAN1、WAN2/LAN1、WAN3/LAN2、WAN4/LAN3、LAN4 |
|
Mounting |
Ceiling /Wall Mounting (Kits included) |
Software
|
Memory |
256MB |
|
FLASH |
16MB |
|
CPU |
Dual core 1.6GHz |
|
Forwarding rate |
10/100/1000Mbps |
|
Modules |
Home Page : Log out, Official website, Internet, Network speed, Running time, Gateway, Restart, MESH status, MESH management, Add new node, Networking equipment, Wireless network, Intranet Settings, Internet Settings
Network : Signal conditioning, Guest network, MESH, IPTV, WISP, WPS, Advanced Settings, Access contro, Policy routing, AC control
Applications : Port mapping, Dynamic domain name, Remote access
System:Managing Passwords, Time setting, Initialization, Schedule tasks, Firmware upgrade, Dial-up log, Router information, Indicator light |
Wireless
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
574Mbps at 2.4GHz, 1201Mbps at 5GHz |
|
Standards |
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.1x, IEEE802.11 b/g/n/ac/ax |
Others
|
Dimensions |
200*124.4*28mm |
|
Environment |
Operating Temperature : 0℃ ~ 40℃ Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
