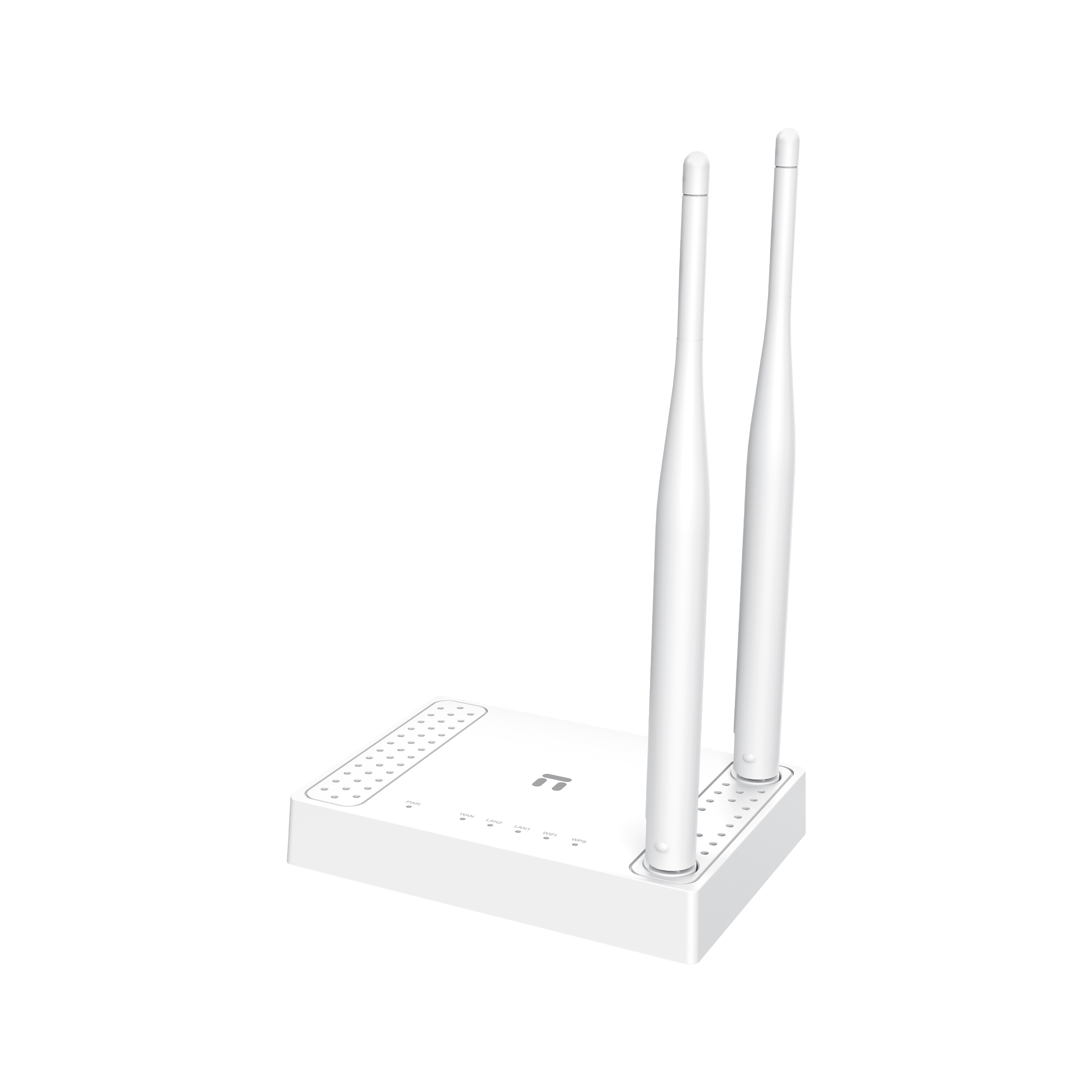

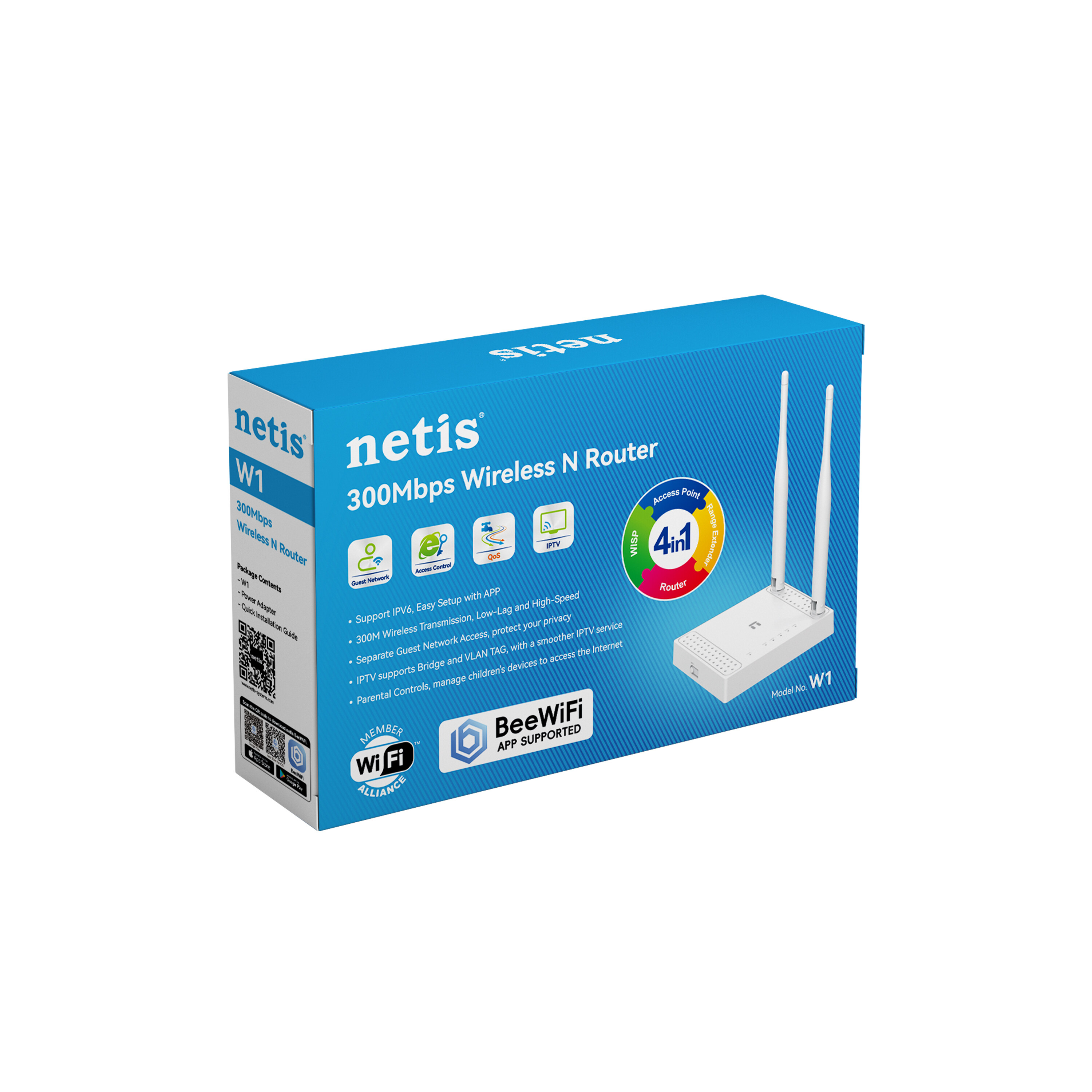

W1
300Mbps Multi-Mode Wireless Router
- Incredible wireless high speed up to 300Mbps, great for faster downloading, Internet calling, HD video streaming and IPTV
- Equipped with 4* 5dBi high-gain antennas, 1 Fast WAN port + 2 Fast LAN ports
- Superior 1GHz high-performance processor with 64MB RAM and 8MB Flash Memory optimizes your network performance

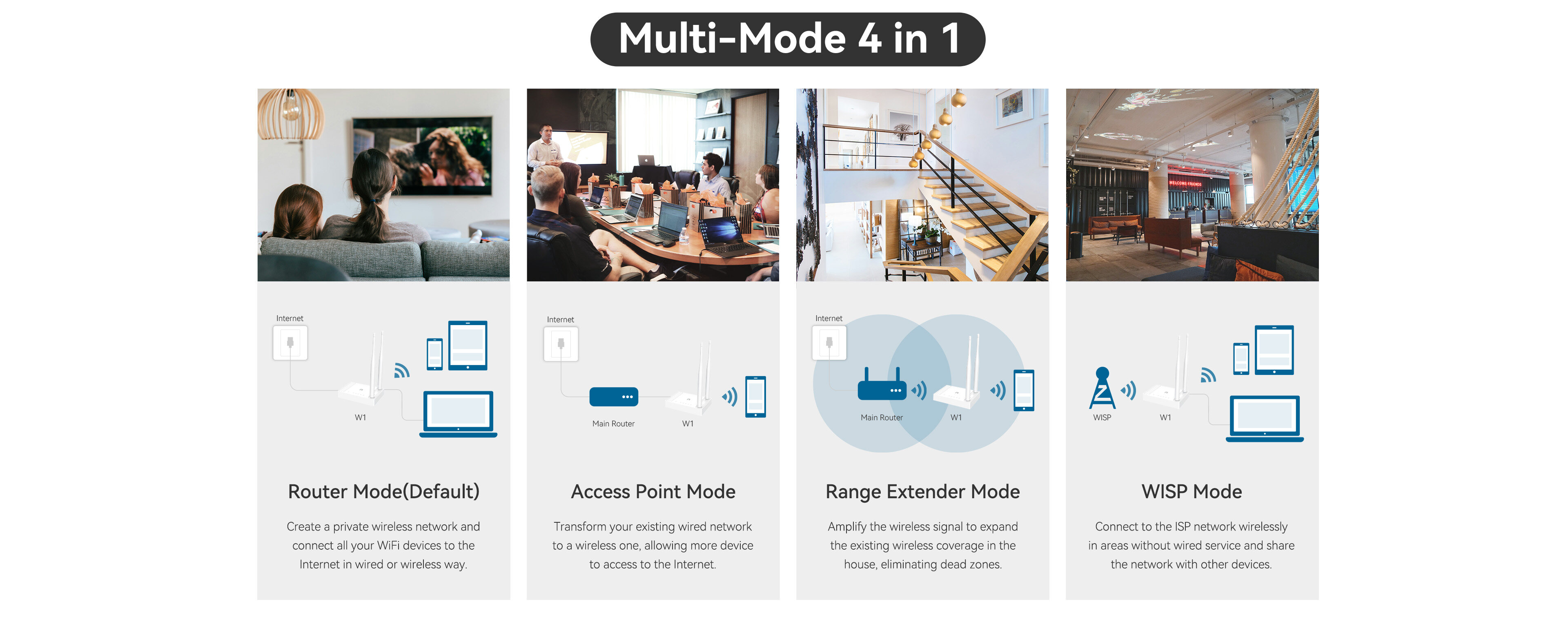

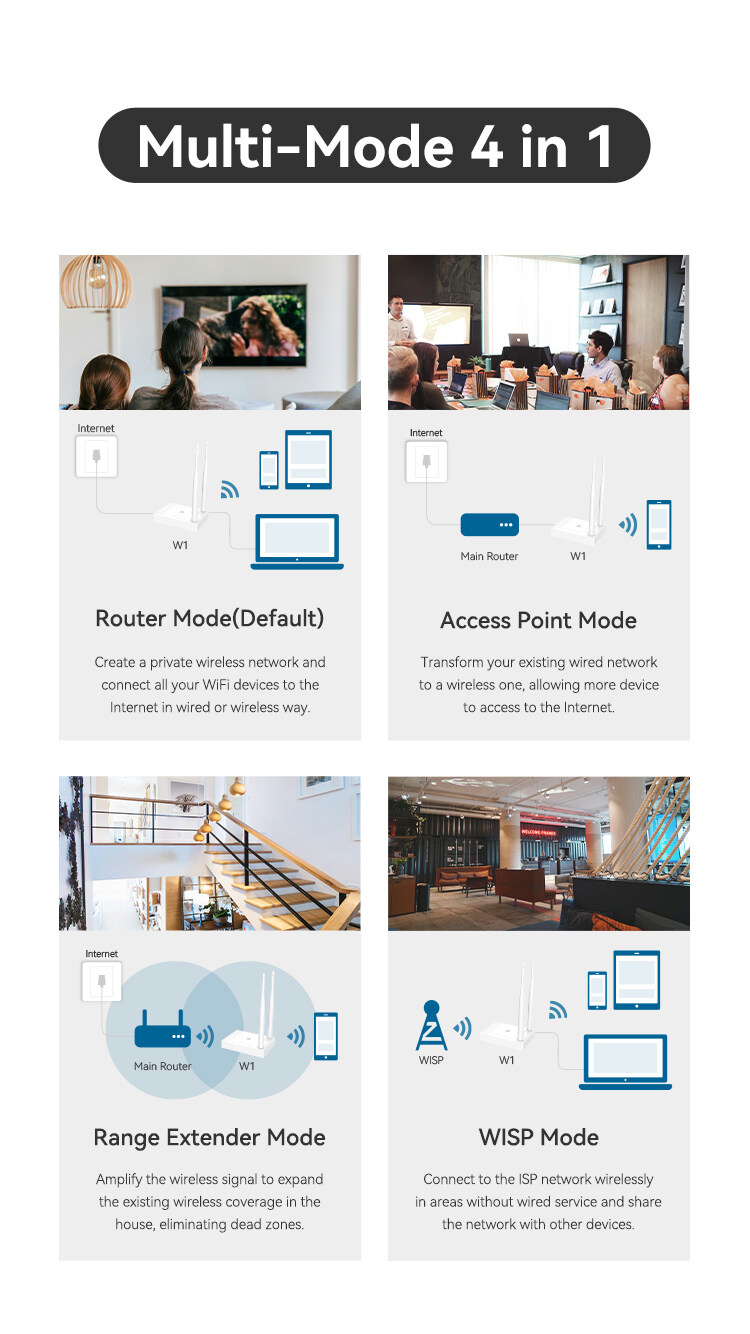

- 4 multi-mode in 1: support Router Mode,Access Point Mode, Range Extender Mode and WISP Mode
- Guest network supported, protect your private network better
- Easy setup in minutes help save your time and efforts
- Intelligent bandwidth control and Internet Access Control
- Support TR069 protocol
- BeeWiFi APP management is coming soon
Cost-Effective and Smart Choice for Your Cozy Family
300Mbps Smart Wireless Router
W1

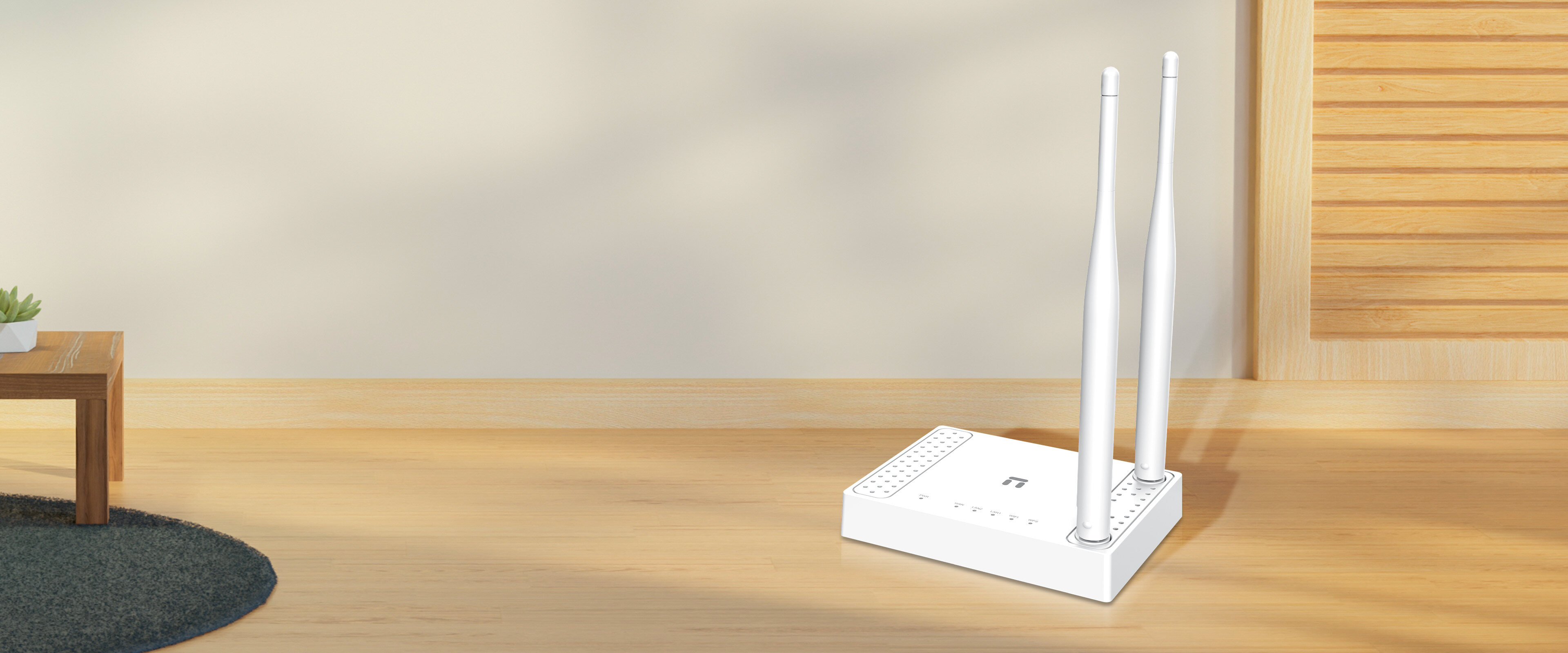

300Mbps Wireless High Speed
Up to 300Mbps wireless speed on the 2.4 GHz band provides you a practical solution for smart home network tasks like web browsing, files downloading,Internet calling and HD video streaming.

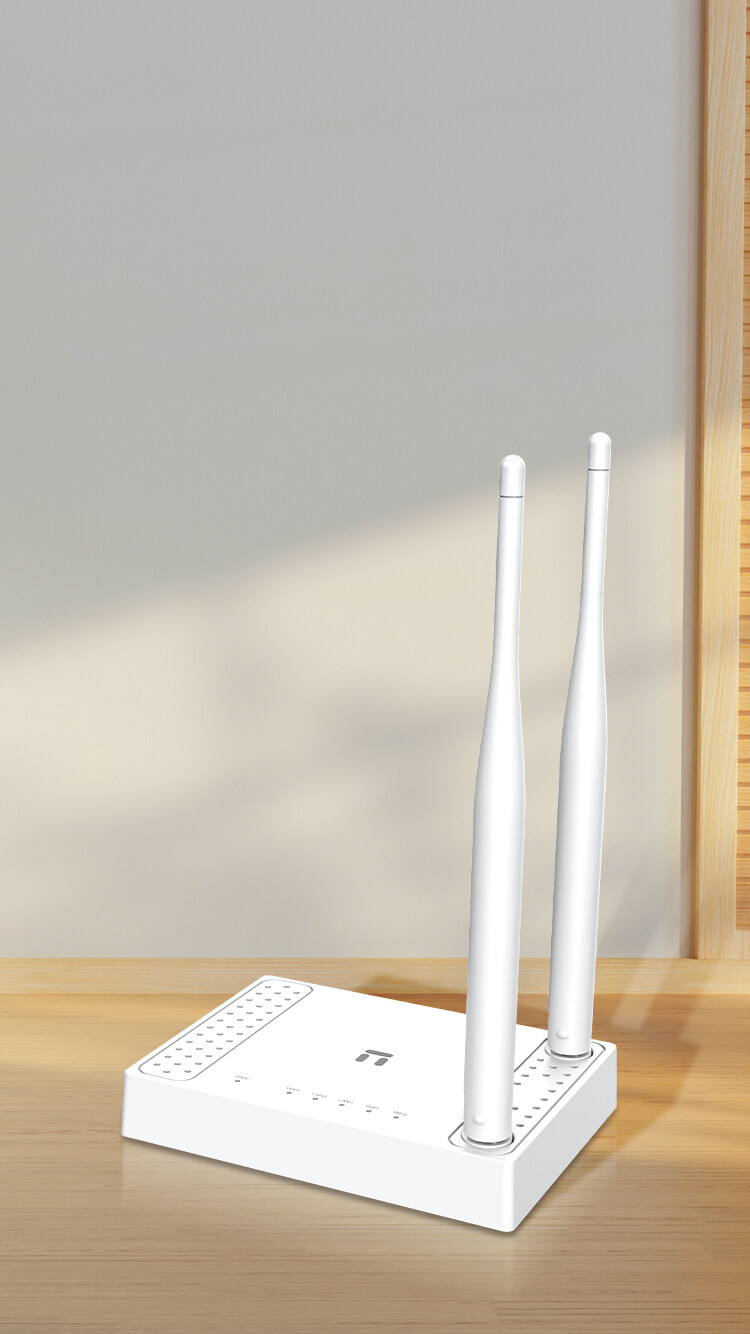

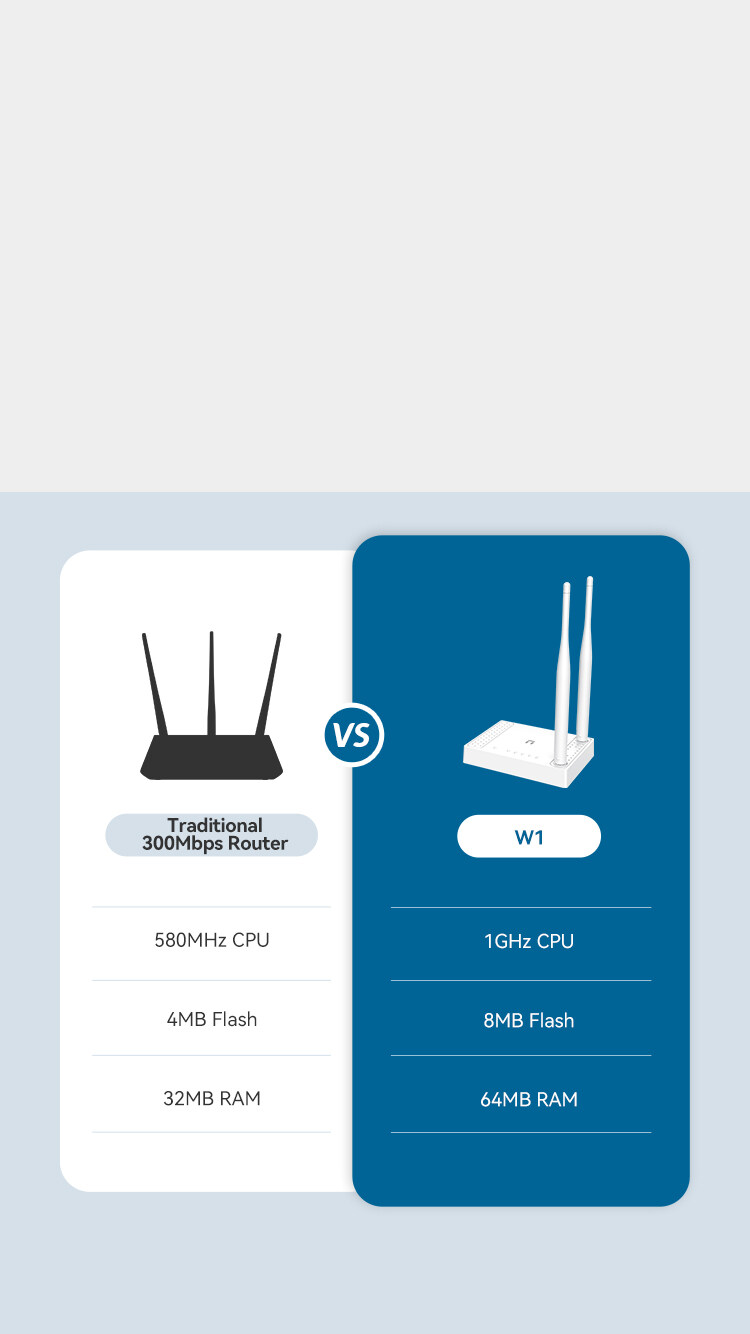

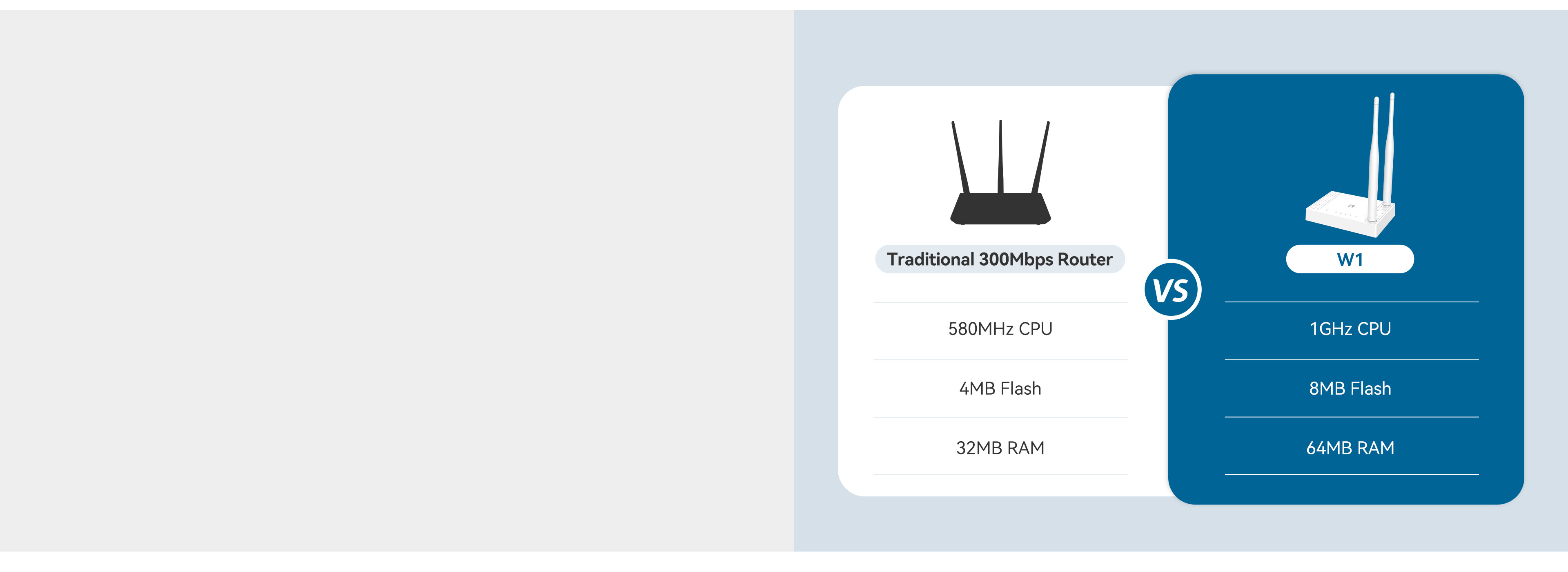

Newly Upgraded！Fast and Stable
Engineered with the upgraded 1GHz high-performance processor, 64MB of memory, 8MB of flash memory, W1 delivers stronger data transmission and more powerful performance for a smooth network experience.

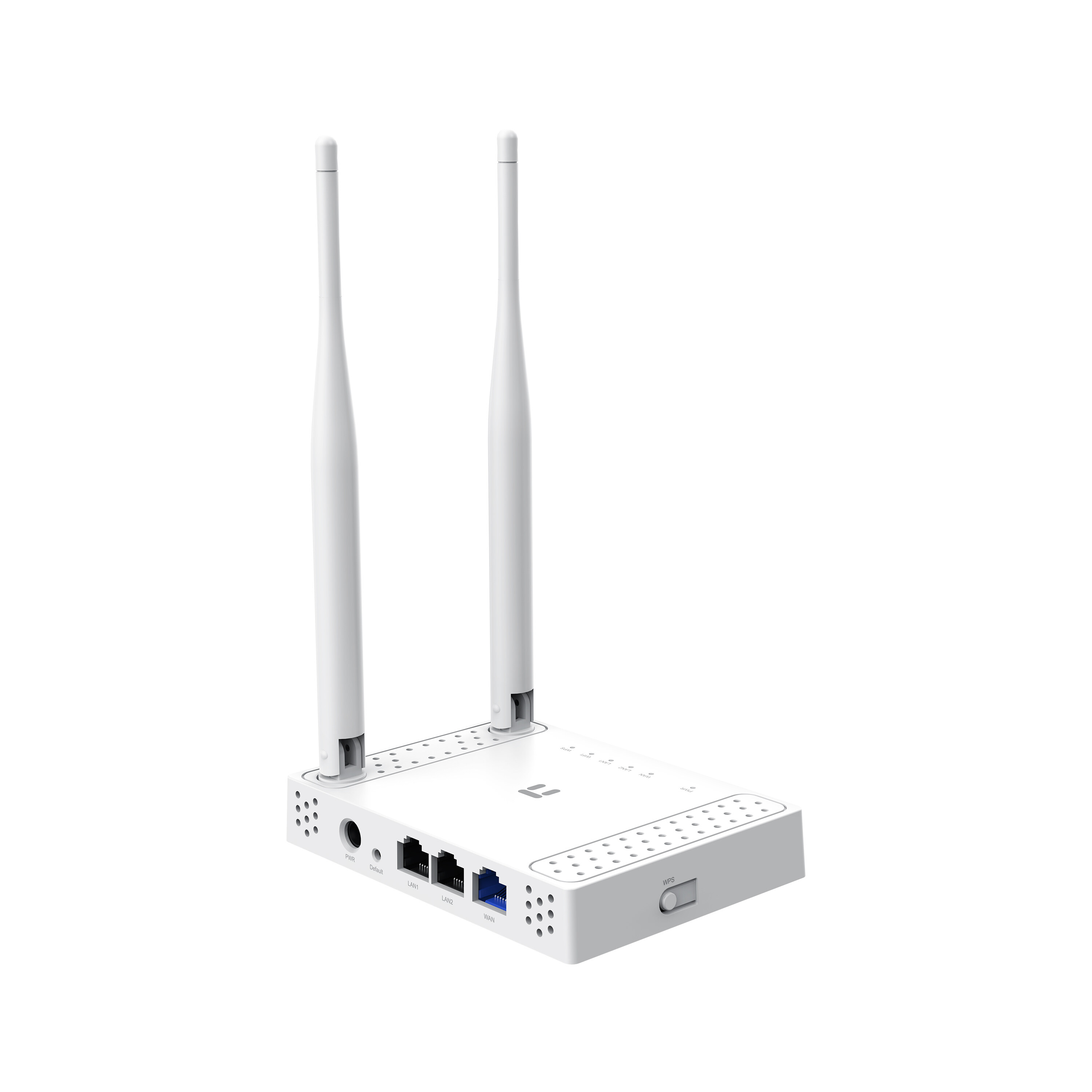

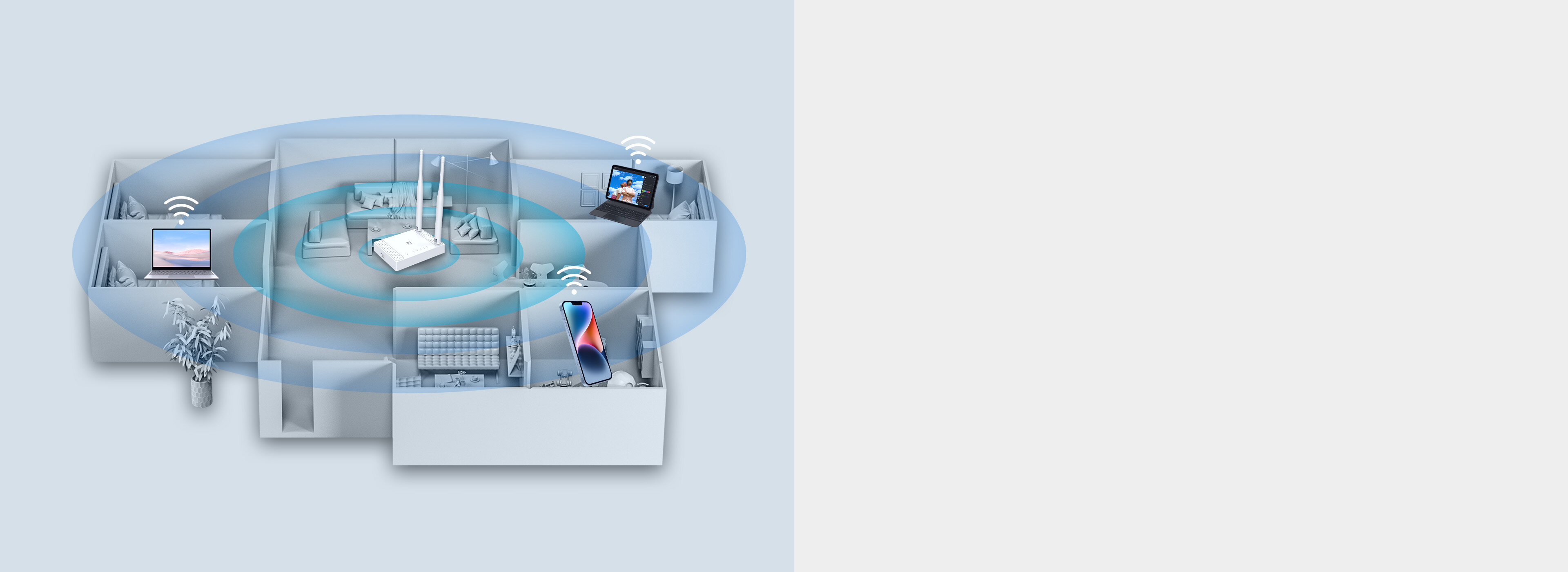

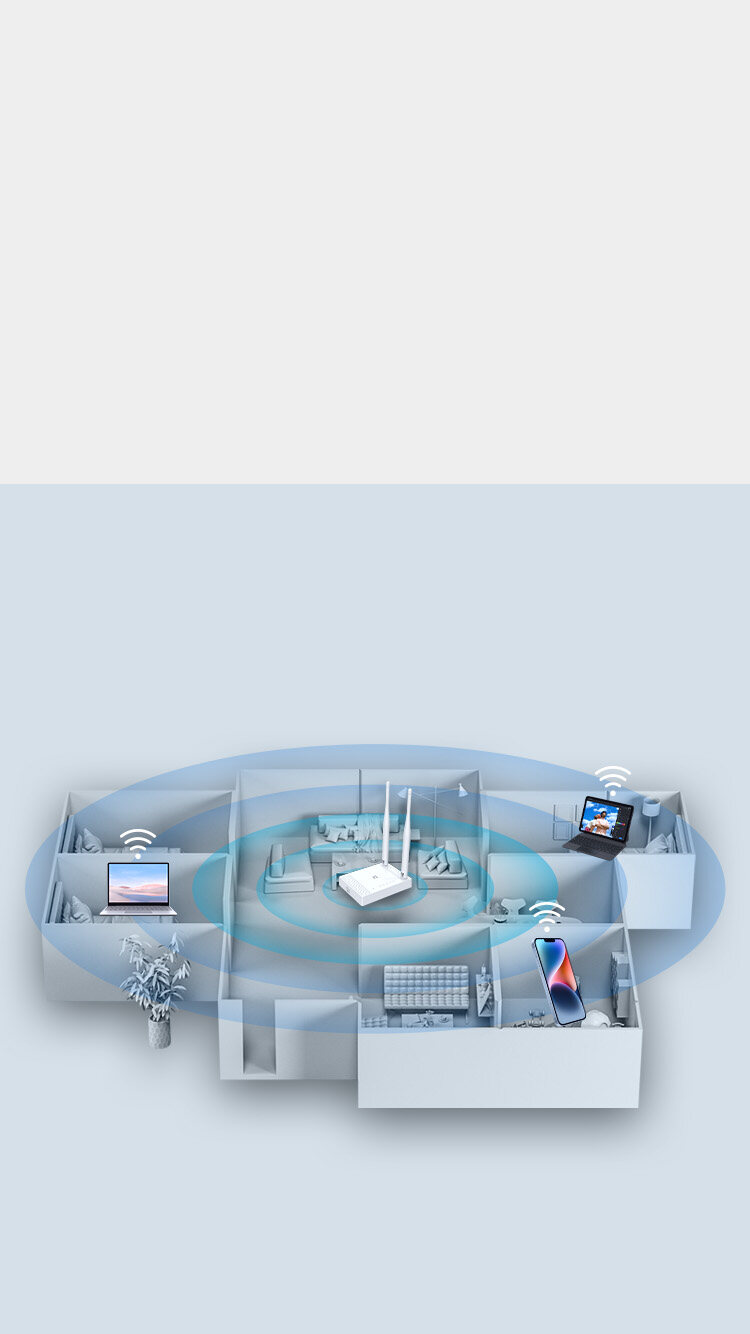

2 MIMO High-Gain 5dBi Antennas
Equipped with 2* 5dBi high-gain antennas, W1 offers you broader wireless coverage and stronger WiFi signal, eliminating signal deadzones efficiently.
IPTV for Online Streaming
W1 supports IPTV, meeting your daily needs for streaming any online TV, sports events, and more.
Guest Network Access
W1 supports guest network access function, allowing your friends and guests safely and conveniently connect to your Wi-Fi while secure your private network.
Easy Setup & Management
You can set up your network through our intuitive web interface in minutes.
Specification
Wireless
|
Standards |
IEEE802.11b,IEEE802.11g,IEEE802.11n |
|
Signal Rate |
Up to 300Mbps |
|
Frequency Range |
2.4-2.4835GHz |
|
Transmit Power |
20dBm(MAX) |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps,270Mbps,240Mbps,180Mbps,120Mbps,90Mbps,60Mbps,30Mbps);20MHz(144Mbps,130Mbps,115Mbps,86Mbps,57Mbps,43Mbps,28Mbps,14Mbps)(Auto-Sense) 802.11g:(54Mbps,48Mbps,36Mbps,24Mbps,18Mbps,12Mbps,11Mbps,9Mbps,6Mbps) 802.11b:(11Mbps,9Mbps,6Mbps,5.5Mbps,2Mbps,1Mbps) |
|
Working Modes |
Router,WISP,Access Point,Range Extender |
|
Wireless Security |
64/128-bit WEP WPA-PSK/WPA2-PSK(TKIP/AES) SSID Broadcast Enable/Disable Wireless MAC Filtering |
Hardware
|
Standards |
IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX |
|
Interface |
1 * 10/100Mbps Auto MDI/MDIX RJ45 WAN port 2 * 10/100Mbps Auto MDI/MDIX RJ45 LAN ports |
|
Antenna |
2 * 5dBi Fixed Antenna |
|
LED |
PWR,WLAN,LAN1-LAN4,WAN,WPS |
|
Buttons |
WPS/Default |
|
Power |
DC 12V/0.5A(Output) |
Software
|
WAN Type |
DHCP,Static IP,PPPoE,L2TP,PPTP,Dual Access,WISP |
|
Port Forwarding |
Virtual Servers,Port Triggering,UPnP,DMZ,FTP Private Port |
|
QoS |
WMM,Bandwidth Control |
|
Access Control |
IP/MAC filtering |
|
VPN Pass-through |
PPTP,L2TP,IPSec |
|
Others |
IPTV,Dynamic DNS,Static Routing,WOL,Backup & Restore, Firmware Upgrade
|
Physical
|

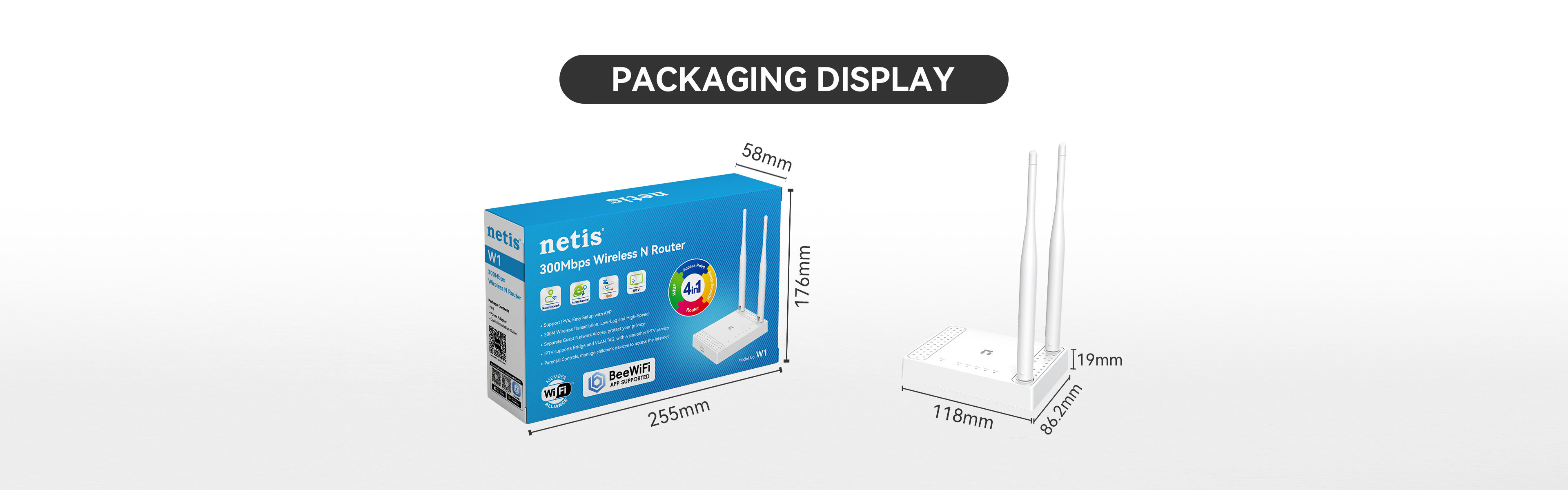

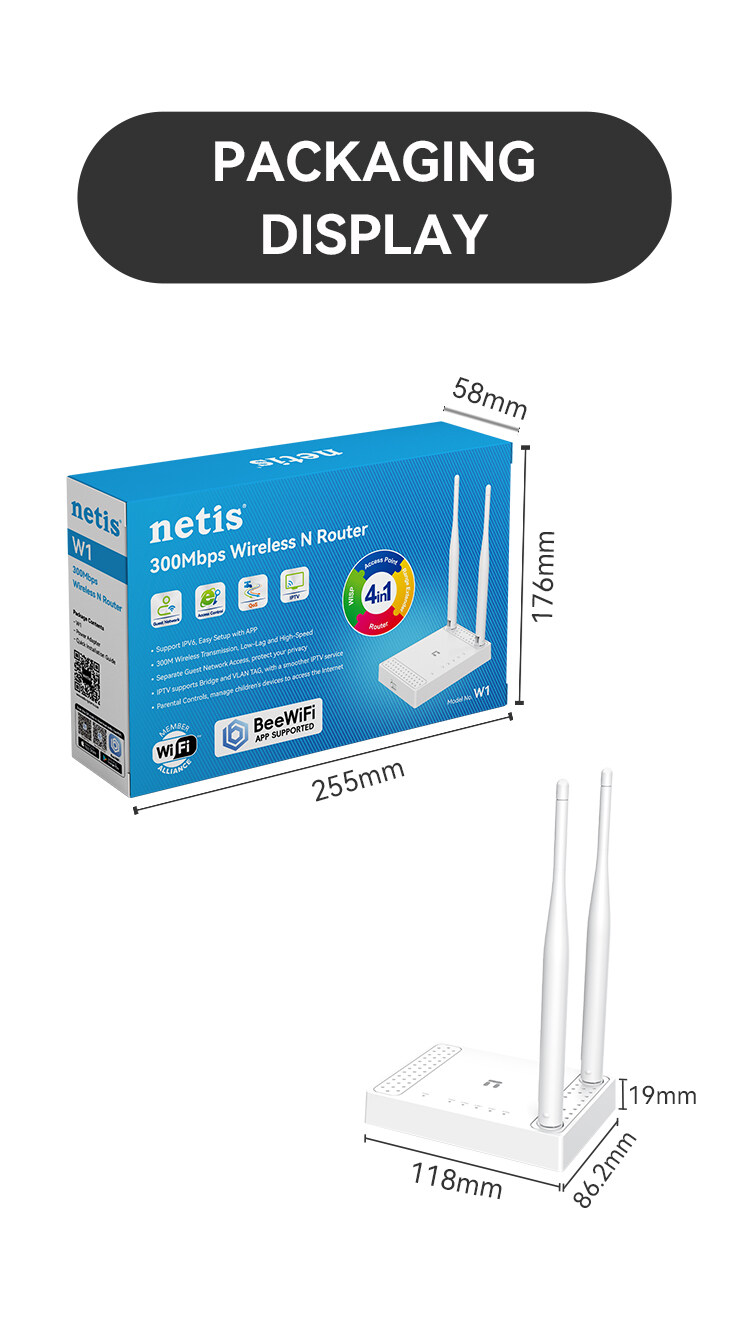

Package Contents |
1 * device 1 * 12V/0.5A Power Adapter 1 * Quick Installation Guide(Multilingual) |
Others
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ |
