NX30
AX3000 Wireless Dual Band Gigabit Router
- Dual-Band Wi-Fi 6: Equipped with the latest wireless technology.
- Next-Gen 3000Mbps Speeds.
- Connect More Devices.
- Dual-Core Processing.
- Extensive Coverage: beamforming and four antennas.
- Backward Compatible: supports all previous 802.11 standards and all Wi-Fi devices.
- Easy setup and support App management conveniently.
Unmatched Speed
and Range with WiFi 6
and Range with WiFi 6
AX3000 Wireless Dual Band Gigabit Router
N30
WiFi 6
IPv6
OFDMA+MU-MIMO Technology
Easy-Mesh
3000Mbps
(2.4G+5G)
1.3GHz CPU
TR069
Remote Management
Full Gigabit Ports
Guest Network
WiFi 6
WiFi 6
3000Mbps High Speed
5GHz up to 2402Mbps

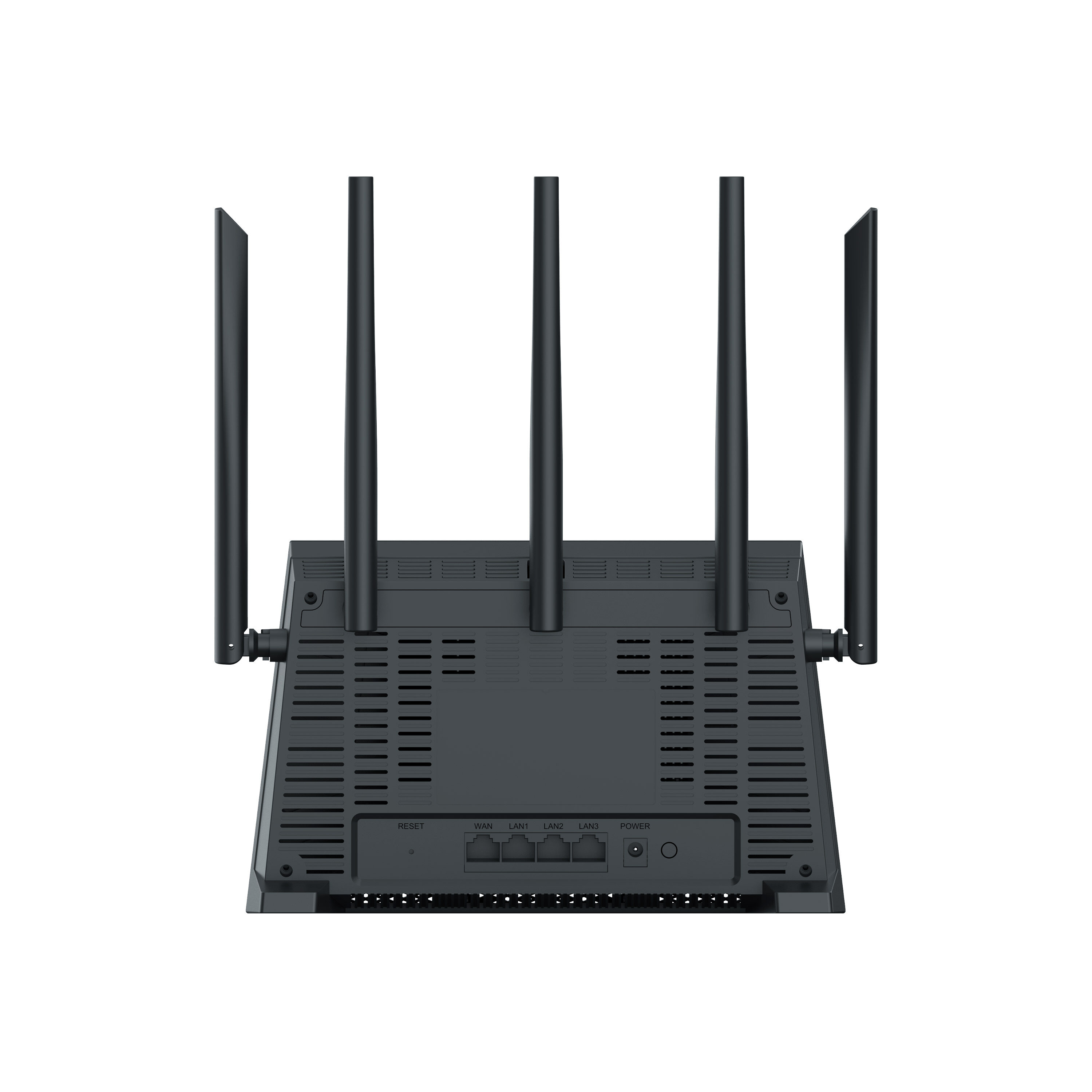

Equipped with 5 external, high-gain antennas, NX30 can transmit dual band wireless signals at both 2.4 GHz and 5 GHz frequencies.
The 5G wireless rate can reach up to 2402 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
The 5G wireless rate can reach up to 2402 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
WiFi 6
WiFi 6
3000Mbps High Speed
5GHz up to 2402Mbps
Equipped with 5 external, high-gain antennas, NX30 can transmit dual band wireless signals at both 2.4 GHz and 5 GHz frequencies.
The 5G wireless rate can reach up to 2402 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
The 5G wireless rate can reach up to 2402 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
MU-MIMO+OFDMA
Extraordinary lnternet speed with WiFi6
Supports MU-MIMO technology for transmitting multiple data packets simultaneously and OFDMA technology for both uplinkand downlink data transmissions. This greatly improves the average transmission speed, reduces latency, increases total throughput and network capacity, and ultimately leads to a significant improvement in network speed, even with many devices connected.
Easy-mesh Fast Networking
Whole-house WiFi coverage
With two or more NX30 routers, it can be quickly set up for a WiFi6 mesh network environment with faster network transmission speeds, lower latency, and greater capacity. This effectively expands wireless signal coverage range, achieves seamless roaming, and solves problems such as signal attenuation and poor internet connection due to multiple walls in large space.
Compliant TR069 Protocols
for Telecom Operators
for Telecom Operators
NX30 is dedicated not only to consumers but also compatible with the telecom operators, which supports device management and control remotely via their ACS (Auto-Configuration Sever) system.
IPv6
Larger address space
Compared to IPv4 IPv6 offers numerous advantages when it comes to routing capabilities and network security, thanks to its significantly larger address space.As the number of devices in smart homes continue to grow, this becomes an important consideration. NX30 is designed to address this issue by also offering backward compatibility with IPv4, ensuring efficient access to a wide range of network resources.
Easy Setup and Use

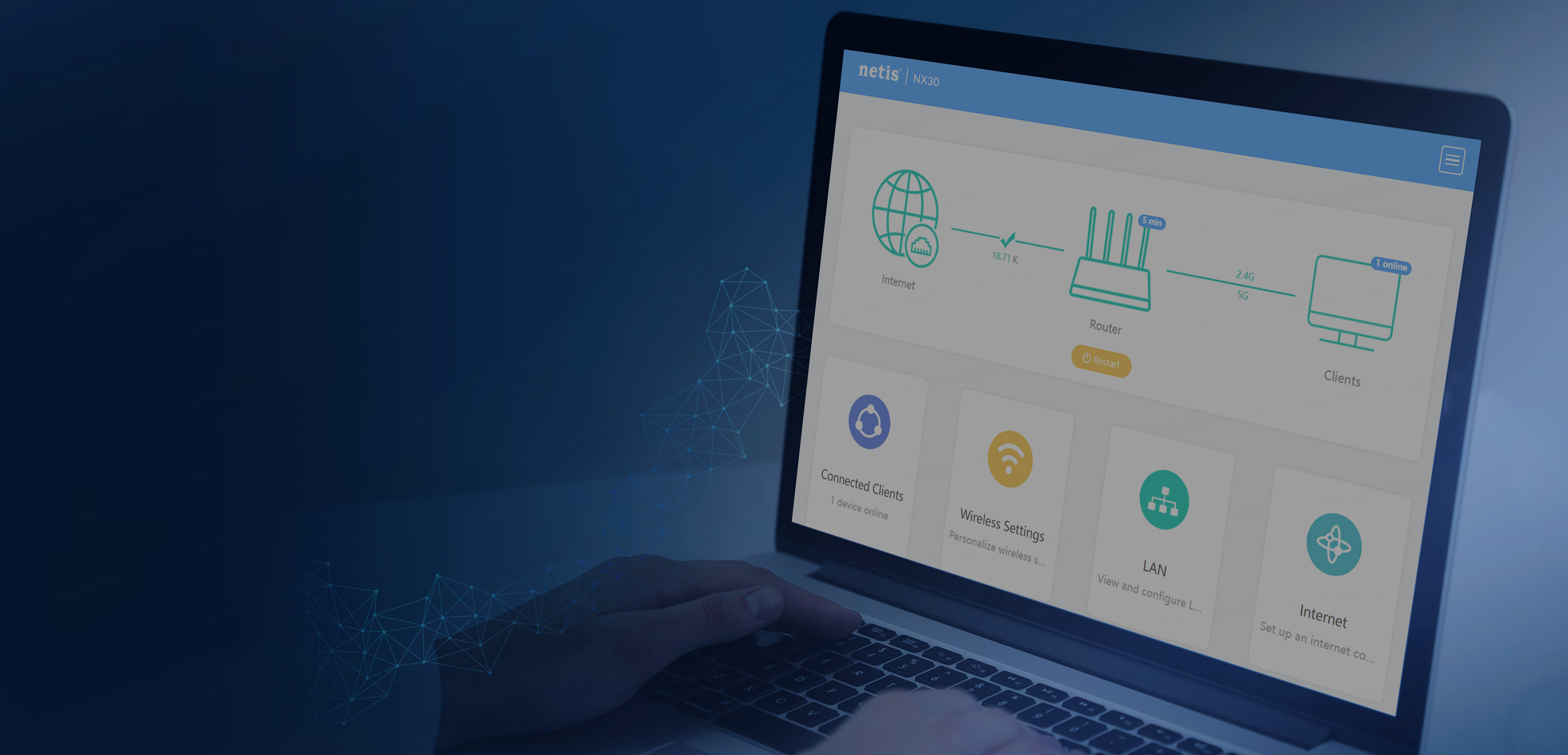

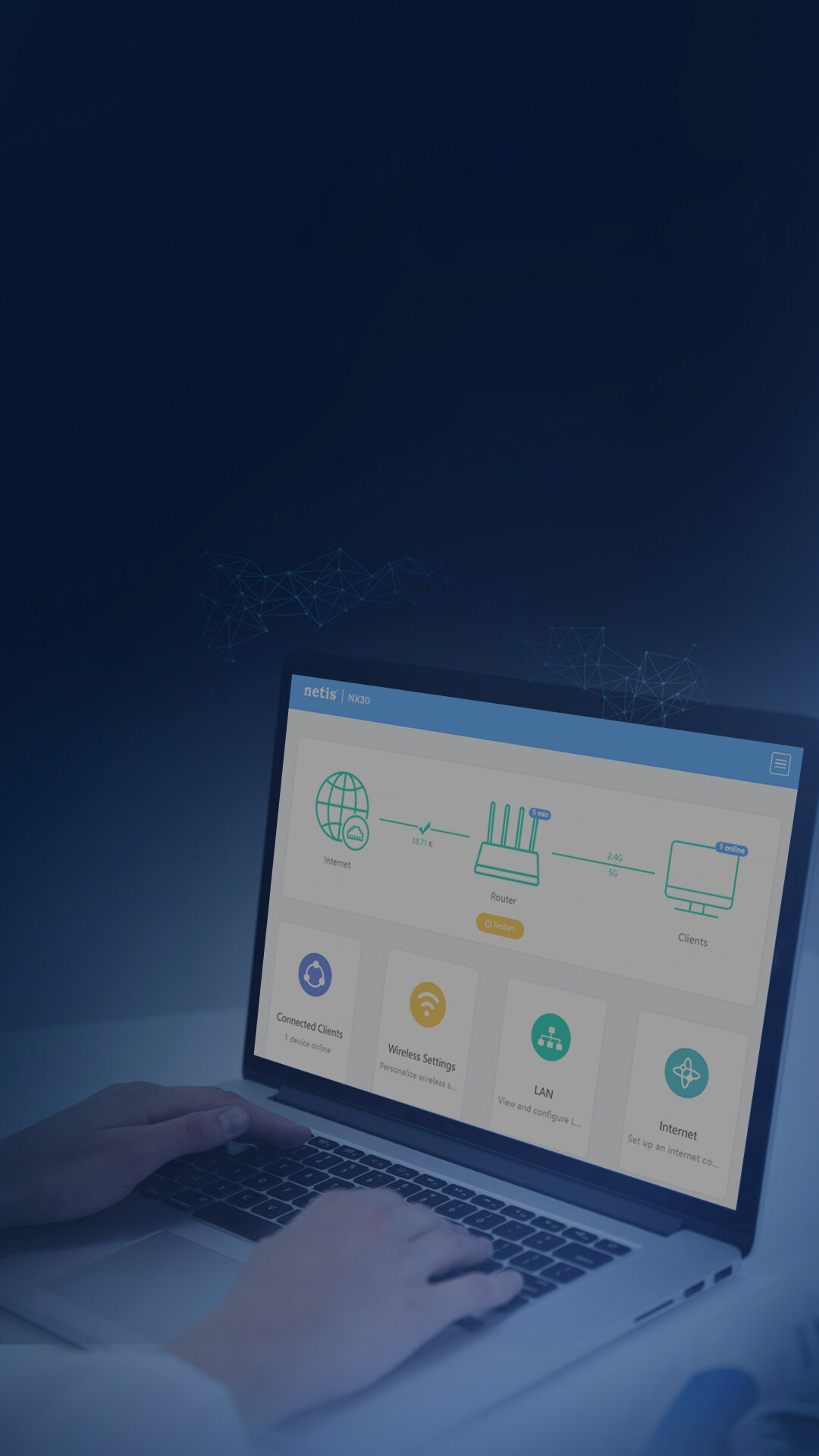

Set up your router in minutes with the intuitive web interface.
Specification
Wireless
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
|
WiFi Speeds |
AX3000 |
|
WiFi Range |
3 Bedroom Houses 5x Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
|
WiFi Capacity |
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6/5/4 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
|
Working Modes |
Router Mode, Repeater Mode |
Hardware
|
Processor |
1.3GHz CPU |
|
DDR/FLASH |
256MB/128MB |
|
Interface |
1* Gigabit WAN Port+3*Gigabit LAN Ports |
|
Buttons |
WPS/MESH、RESET |
|
Power |
DC 12V/1.5A |
Software
|
WiFi Encryption |
WPA, WPA2, WPA/WPA2-Enterrprise, WPA3 |
|
Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
|
Guest Network |
2 * 5 GHz Guest Network 2 * 2.4 GHz Guest Network |
|
Protocols |
IPv4, IPv6 |
|
WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
|
Parental Controls |
URL Filtering, Time Controls |
|
Quality of Service |
QoS by Device |
|
IPTV |
Bridge, Tag VLAN |
|
NAT Forwarding |
Port Forwarding, Port Triggering, DMZ, UPnP |
|
Dynamic DNS |
DynDns, no-ip |
|
Management |
Web based Configuration (HTTP), Remote Management, Telnet Management, Tr069, Tr143, Tr181, Tr098, SNMP, Web Based Firmware Upgrade, CWMP, Diagnostic Tools |
|
Others |
FOTA, TR069, Remote Access, Backup & Restore |
Physical
|
Dimensions(W×D×H) |
9.3*5.7*2.0 in(236.0*144.0*50.0 mm) |
|
Package Contents |
1*NX30 1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
Others
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
|
Environment |
Operating Temperature: 0℃~40℃ ( 32℉ ~104℉ ) Storage Temperature: -40℃~70℃ (-40℉ ~158℉ ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
