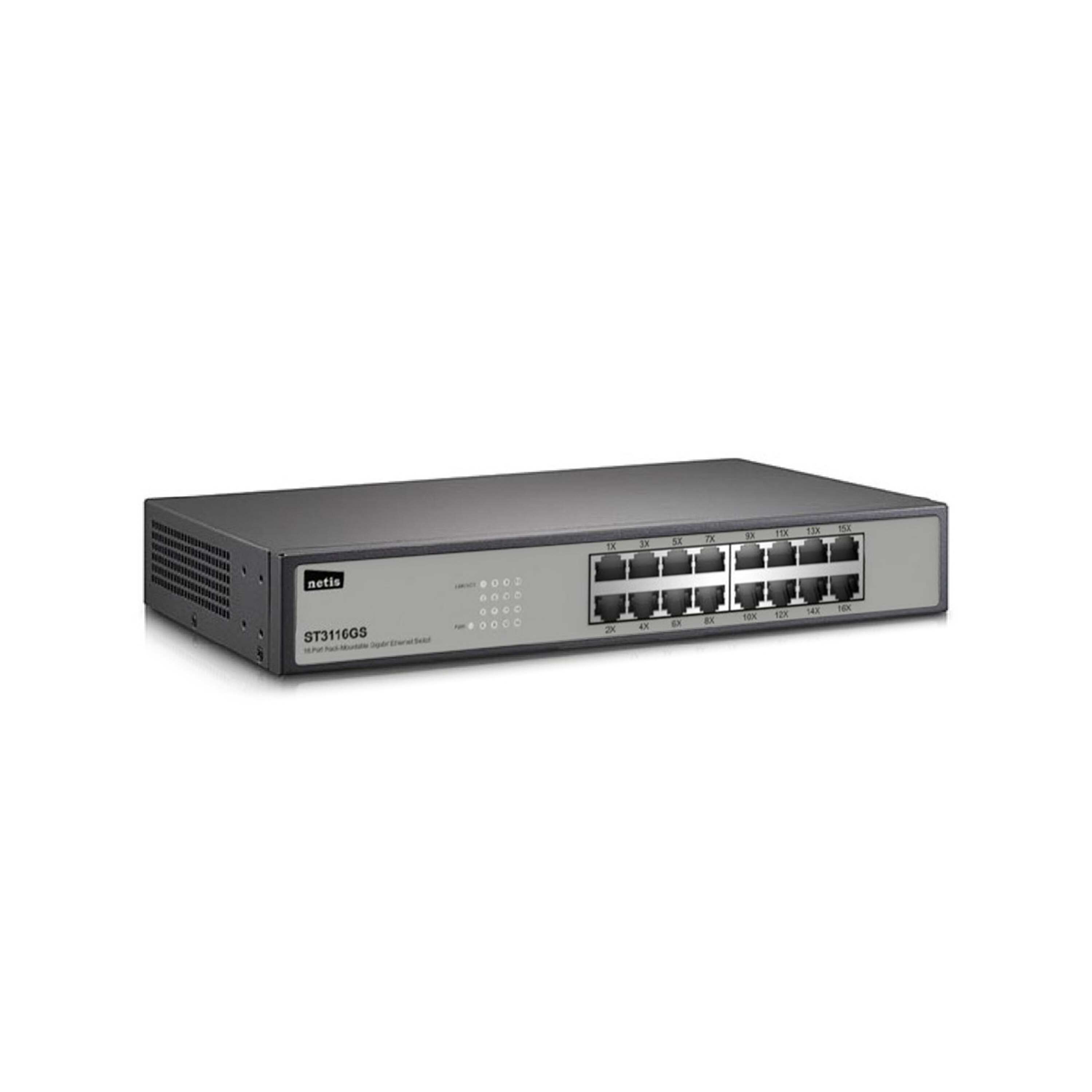

ST3116GS
16 Port Gigabit Ethernet Switch
- 16*10/100/1000M RJ45 ports.
- Supports 8K MAC address self-learning and auto MDI/MDIX
- Green Ethernet technology link down power saving and link on various cable length power saving
- Supports 2K MAC address
- 32 Gbps Switching Capacity
- Fanless design to make sure it works quietly without disturbing your family
- Desktop, expendable to rackmount
- Plug and play, no configuration required
Specification
Hardware
|
Interface |
16 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1-16 10/100/1000M, 1-16 LINK/ACT |
|
Power Supply |
100-240 V AC/50-60Hz |
|
Dimensions (L x W x H ) |
280 * 173 * 44 mm |
Switching Features
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100/1000Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
|
Switching Fabric Capacity |
32Gbps |
|
Built-in Buffer |
2M bits |
|
Jumbo Frame |
9KB |
|
MAC Address Table |
2K |
Others
|
Certification |
FCC, CE, BSMI |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3116GS |
