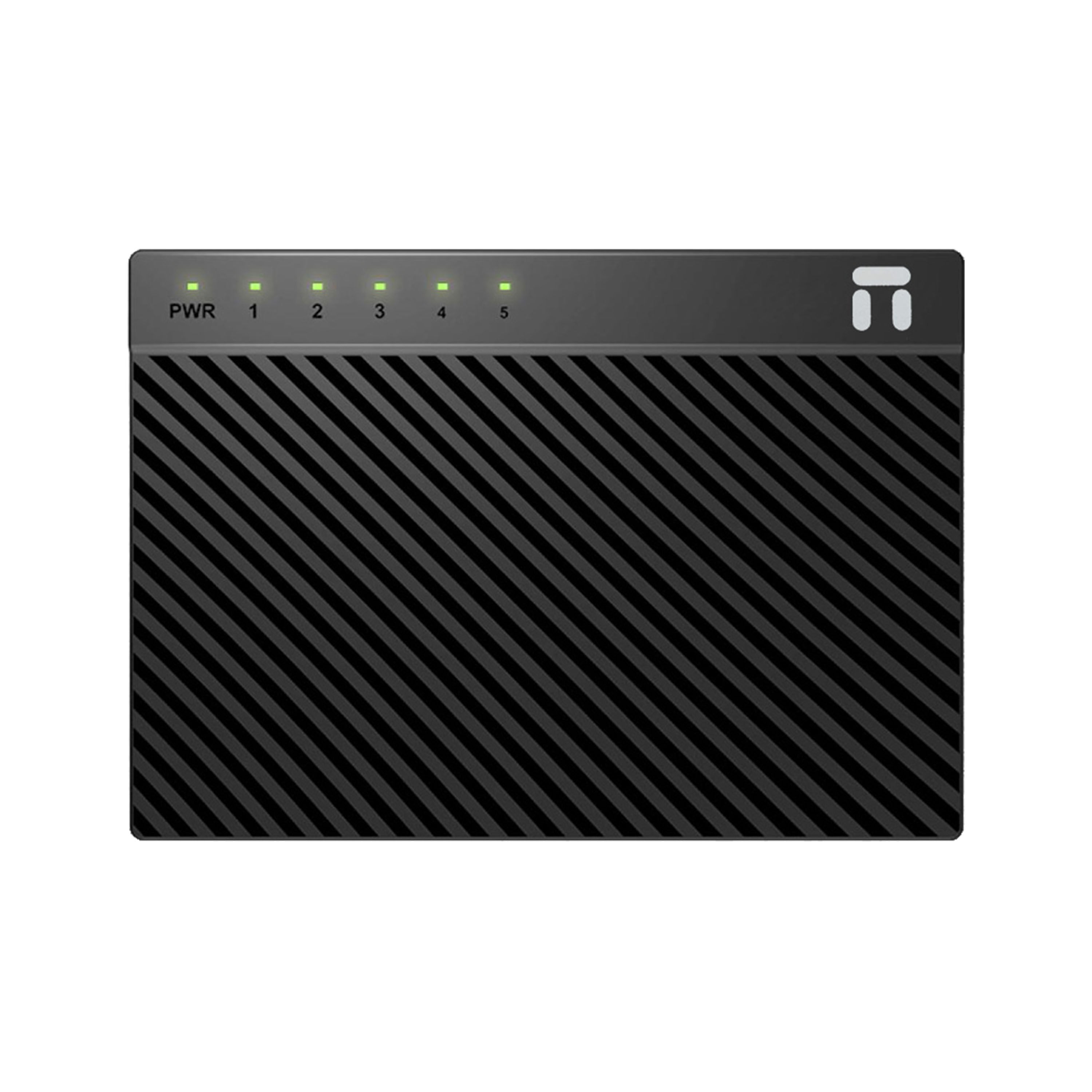

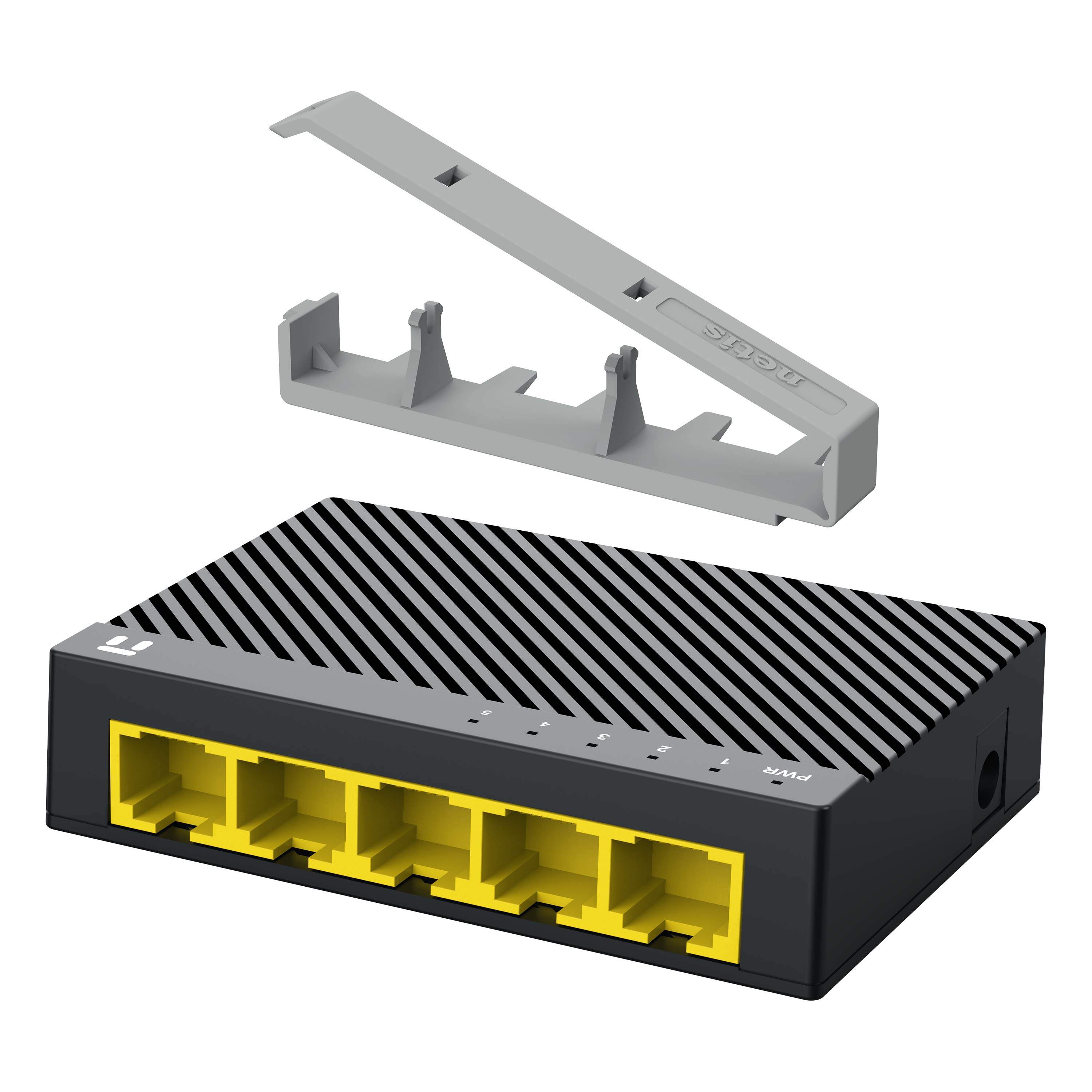

ST3105GC
5 Port Gigabit Ethernet Switch
- 5*10/100/1000Mbps RJ45 ports, Auto-Negotiation & Auto MDI/MDIX
- IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- 10Gbps switching fabric capacity/backplane bandwidth
- Support 9216-byte jumbo packet length forwarding at wired speed
- Supports 2K MAC address table, MAC address auto-learning & auto-aging
- Green Ethernet technology for effective power saving
- LED indicators for simple diagnostics and management
- Plug and play ,no configuration required
Specification
Hardware
|
Interface |
5* 10/100/1000M TX ports |
|
LED |
PWR, LAN1-LAN5 |
|
Power Supply |
DC 5V/600mA (Output) |
|

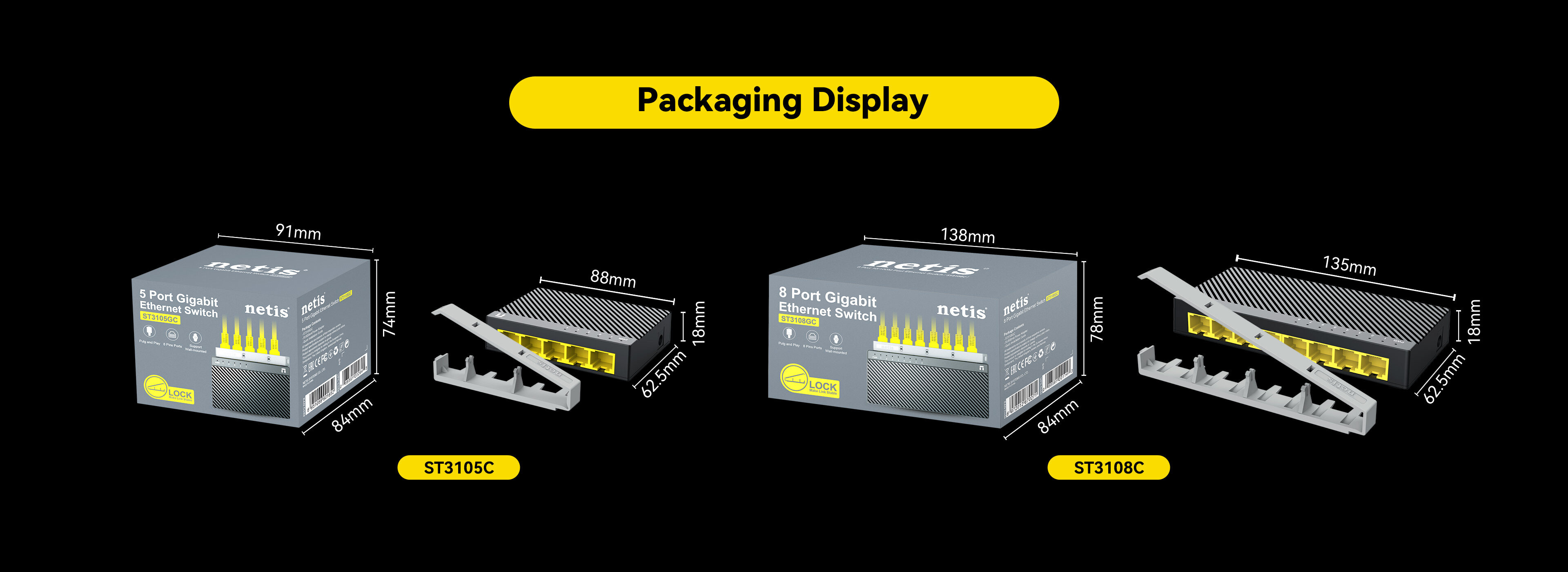

Dimensions (L x W x H ) |
85 * 75 * 22mm |
|
Cabling Type |
10Base-T: UTP Cat.3 or up 100Base-TX: UTP Cat.5 or up 1000Bast-T: UTP Cat.5 or up |
Software
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Switch Architecture |
Non-blocking |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
MAC Address Table |
2K |
Others
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1* ST3105GC |
