Download for GP2101
Single Port GPON ONT
Datasheet
GP2101
Single Port GPON ONT
Datasheet
Please choose hardware version:

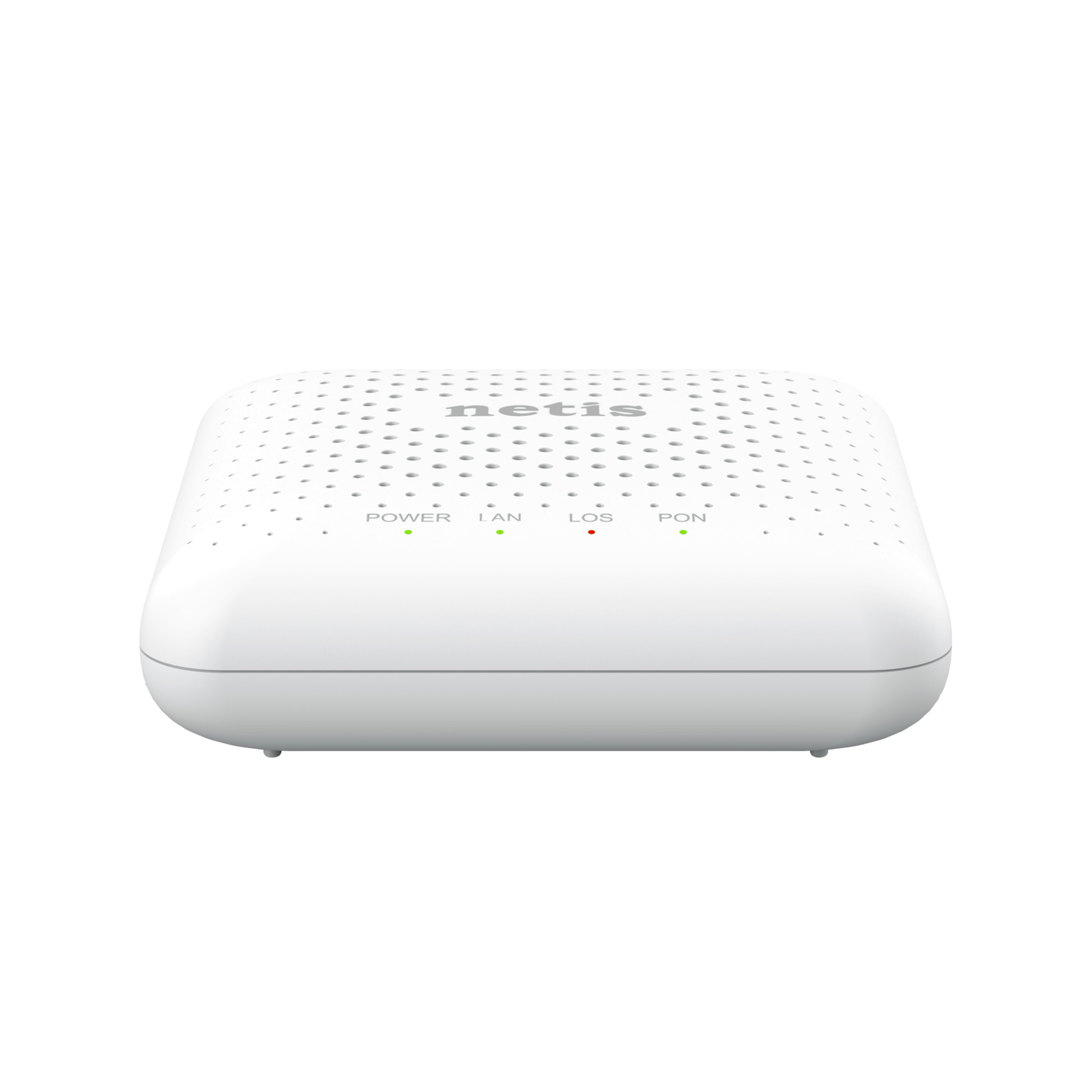

netis_ GP2101 1GE XPON ONU
FEATURES：
- The point to multi-point network topology is adopted to effectively collect and aggregate the scattered Ethernet services of users, and the 10 / 100 / 1000mEthernet standard RJ45 interface is provided on the user side
- Dynamic bandwidth allocation mechanism enables all users to share 2.5Gbps bandwidth more reasonably, realize reliable quality of service (QoS), and ensure the quality of different services in the same network
- Support IGMP multi-cast and make effective use of broadband
- Support multi-cast VLAN
- GPON or EPON up-link is adopted to meet ITU-T g.984/g.988 standards
- Provide remote management through OLT and support local console management
- Support the line loopback detection function of Ethernet interface on user side
- Support IEEE 802.1Q VLAN protocol
- Support broadcast storm suppression
- Support PPPOE routing function
